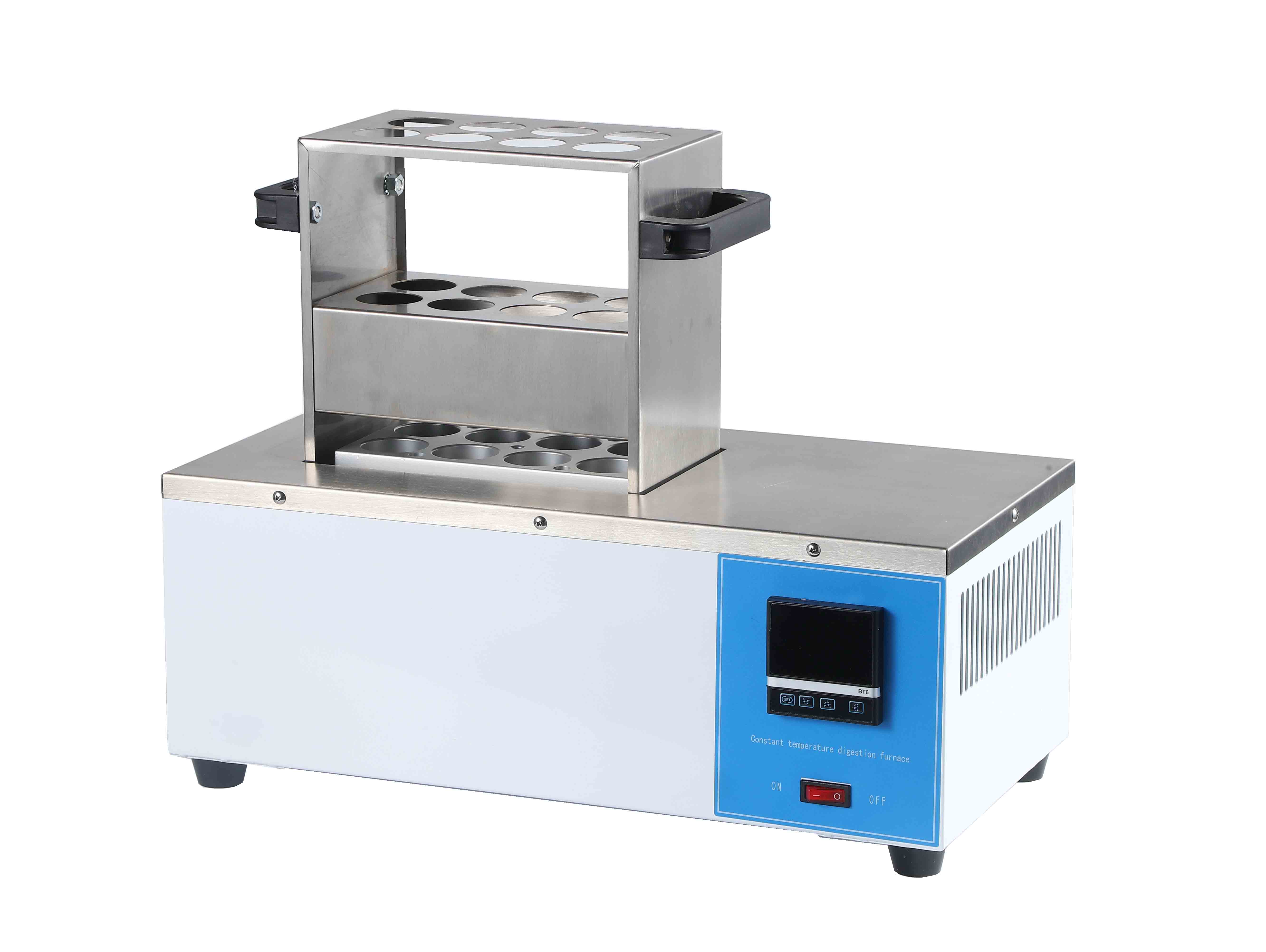

NDXZ-8 Constant Temperature Heating Digestion Furnace

Sample holes: 8 holes
Hole depth: 50mm
Sample hole diameter: Φ43.5mm(250ml)
Heating module material: 6061 Aluminum Alloy
Availability:
  • NDXZ-8

  • AC220V/50-60HZ

  • 1

  • 1 year

  • China

Product Description

2-4、大8孔

The Digester, embodying the essence of the classical wet digestion principle, is meticulously crafted for optimal sample digestion and transformation. Its broad application spans across sectors including agriculture, forestry, environmental protection, geology, petrochemicals, food industry, and more. It serves as an indispensable tool in universities and research departments for the pre-analysis digestion of diverse samples such as plants, seeds, feeds, soils, and ores. As the premier complementary product to the Kjeldahl nitrogen analyzer, this series comes in 3 distinct speciffcations, thoughtfully designed to cater to the varied needs of users.


Features

This product series boasts a reengineered heating system, signiffcantly enhancing inter-well temperature uniformity and ensuring superior sample digestion efffcacy.

The aluminum alloy heating module's surface is treated with aerospace-grade coating technology, boasting both aesthetics and durability, with a design temperature reaching 400°C.

Equipped with a user-friendly LCD temperature controller, it features a timer shutdown and alarm function, alongside PID intelligent control technology. This ensures high temperature control precision, minimal temperature ffuctuation, and a straightforward, easy-to-master interface.

The instrument panel and test tube rack are crafted from brushed stainless steel, welded together for added strength and endowed with a degree of corrosion resistance, ensuring longevity and reliability in the lab environment.


Technical Speciffcation

Model

NDXZ-8

Sample holes

8 holes

Hole depth

50mm

Sample hole diameter

Φ43.5mm(250ml)

Heating module material

6061 Aluminum Alloy

Design temperature

450°C

Temperature control accuracy

±1

Temperature control system

LCD screen

Shutdown time

1999 minutes

Heating power

1.4 KW

Working voltage

AC220V/50-60HZ
