KDN-8L
NADE
KDN-8L
AC220V/50Hz
1
1 year
China
Product Description
Introduction:

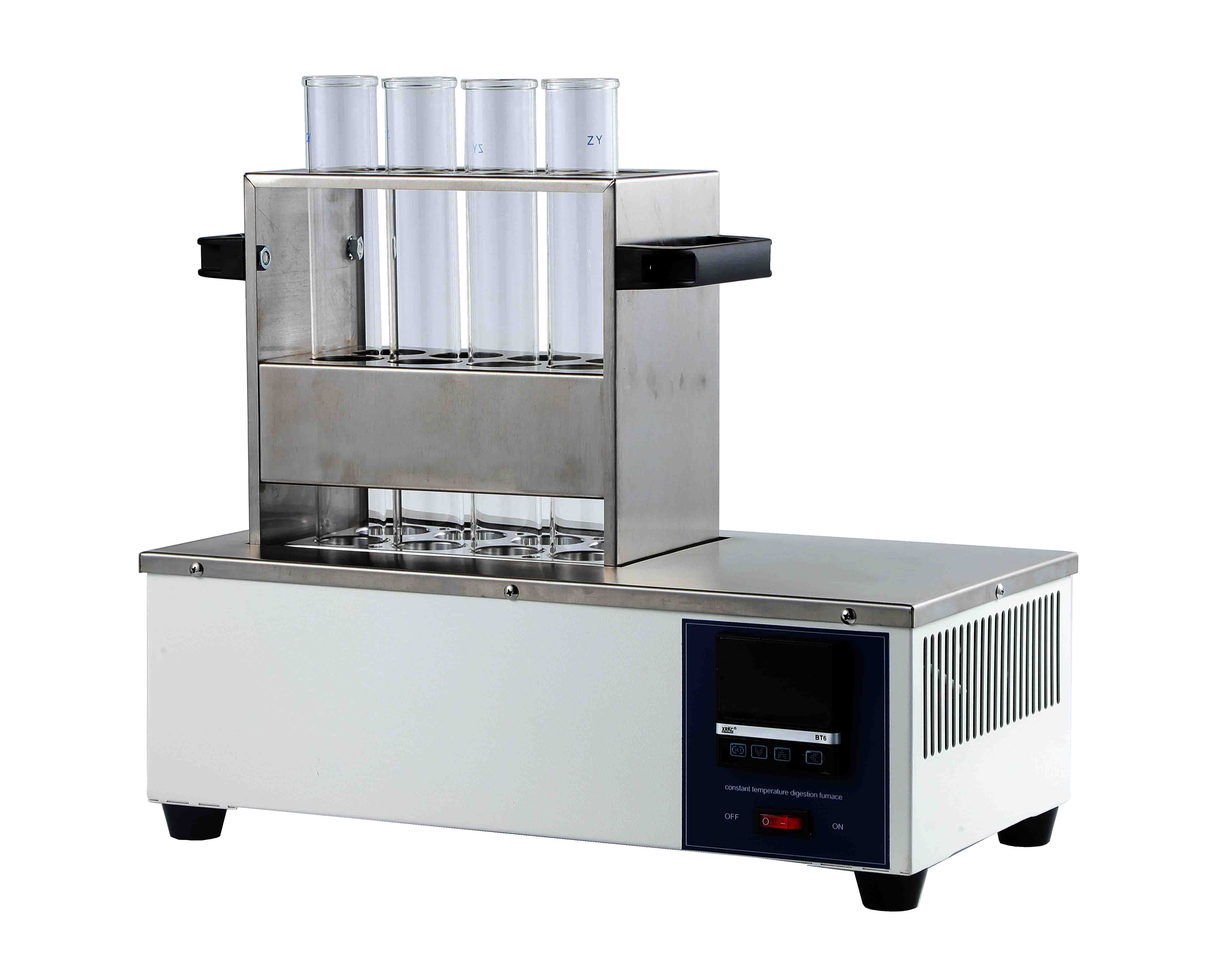

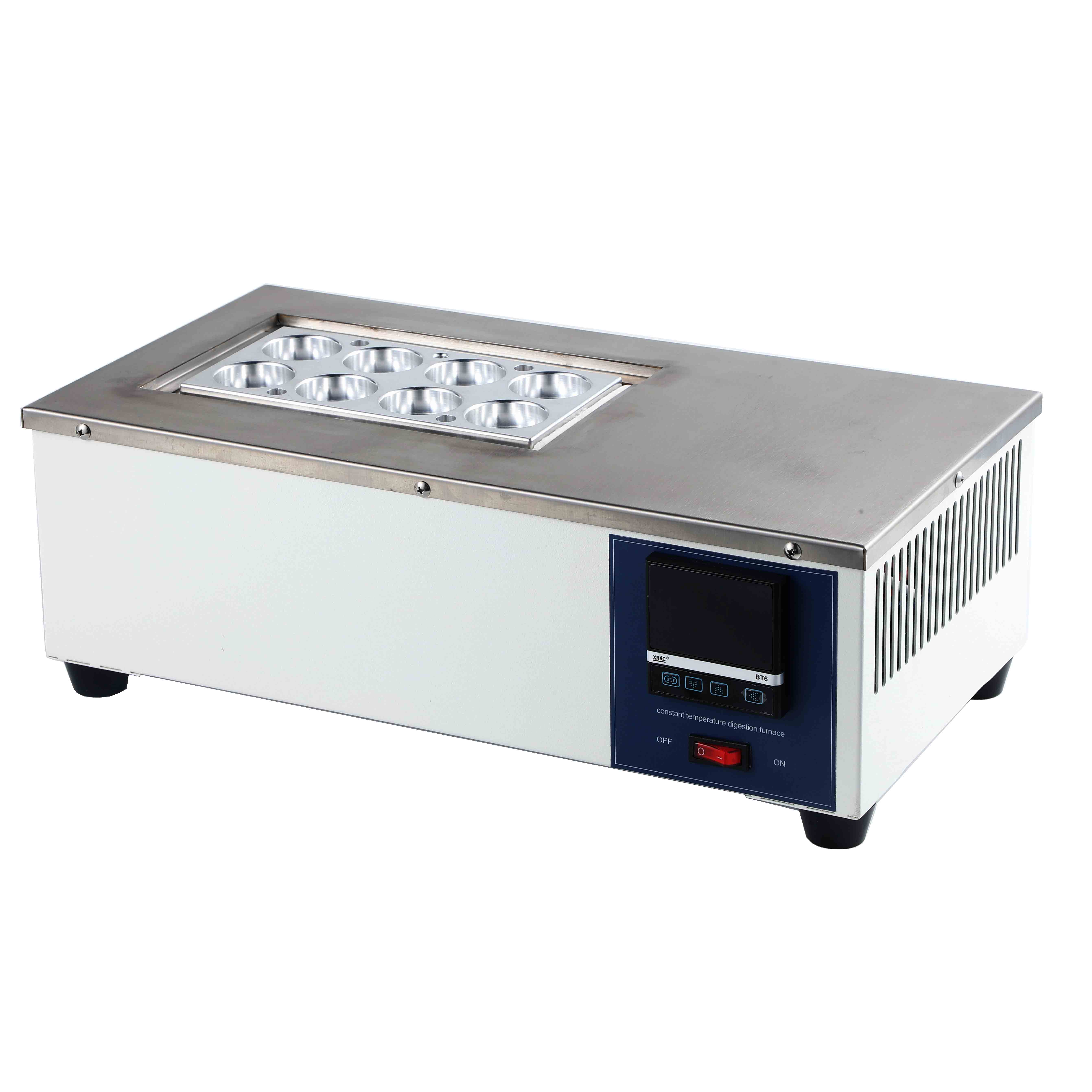

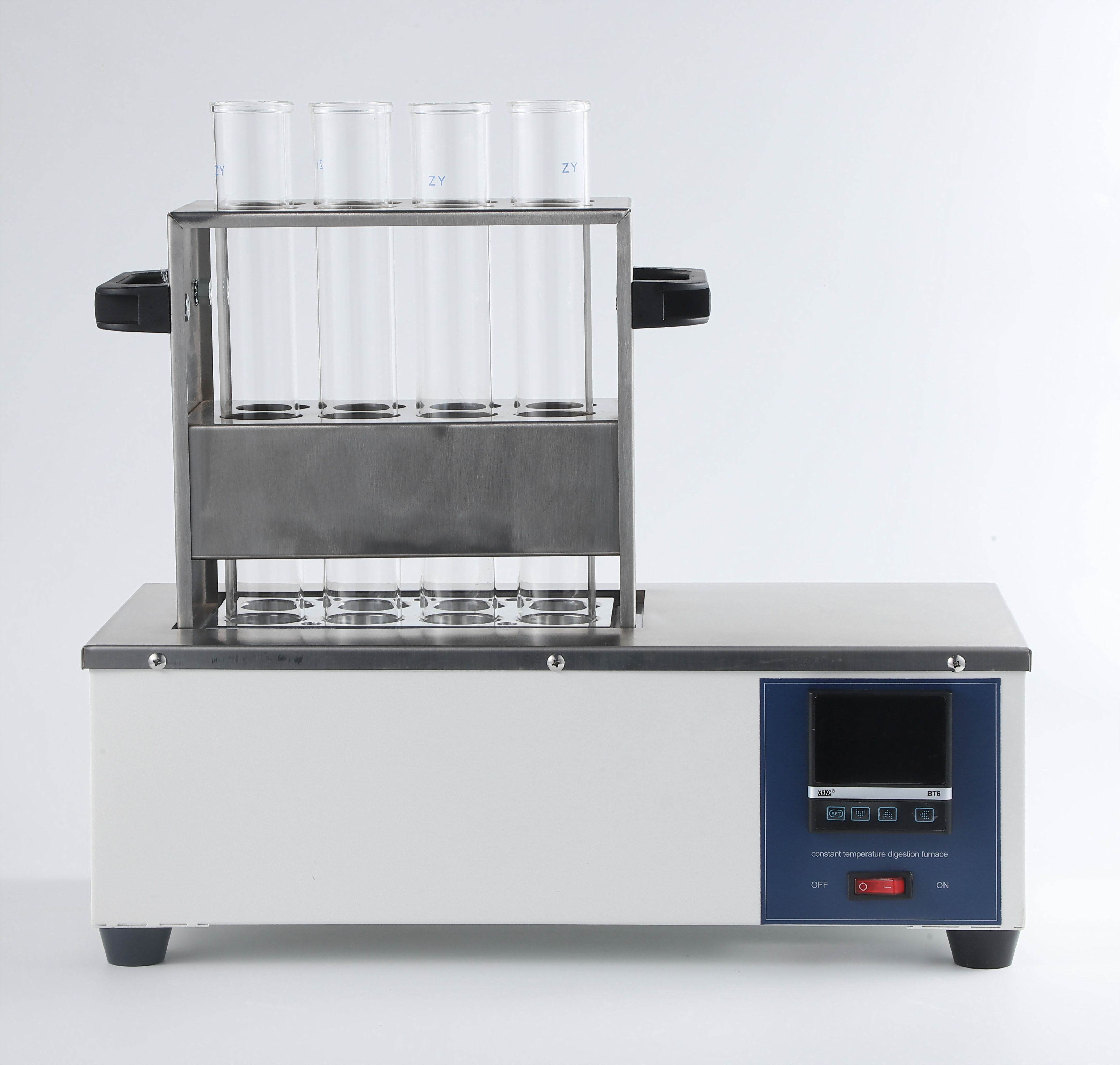

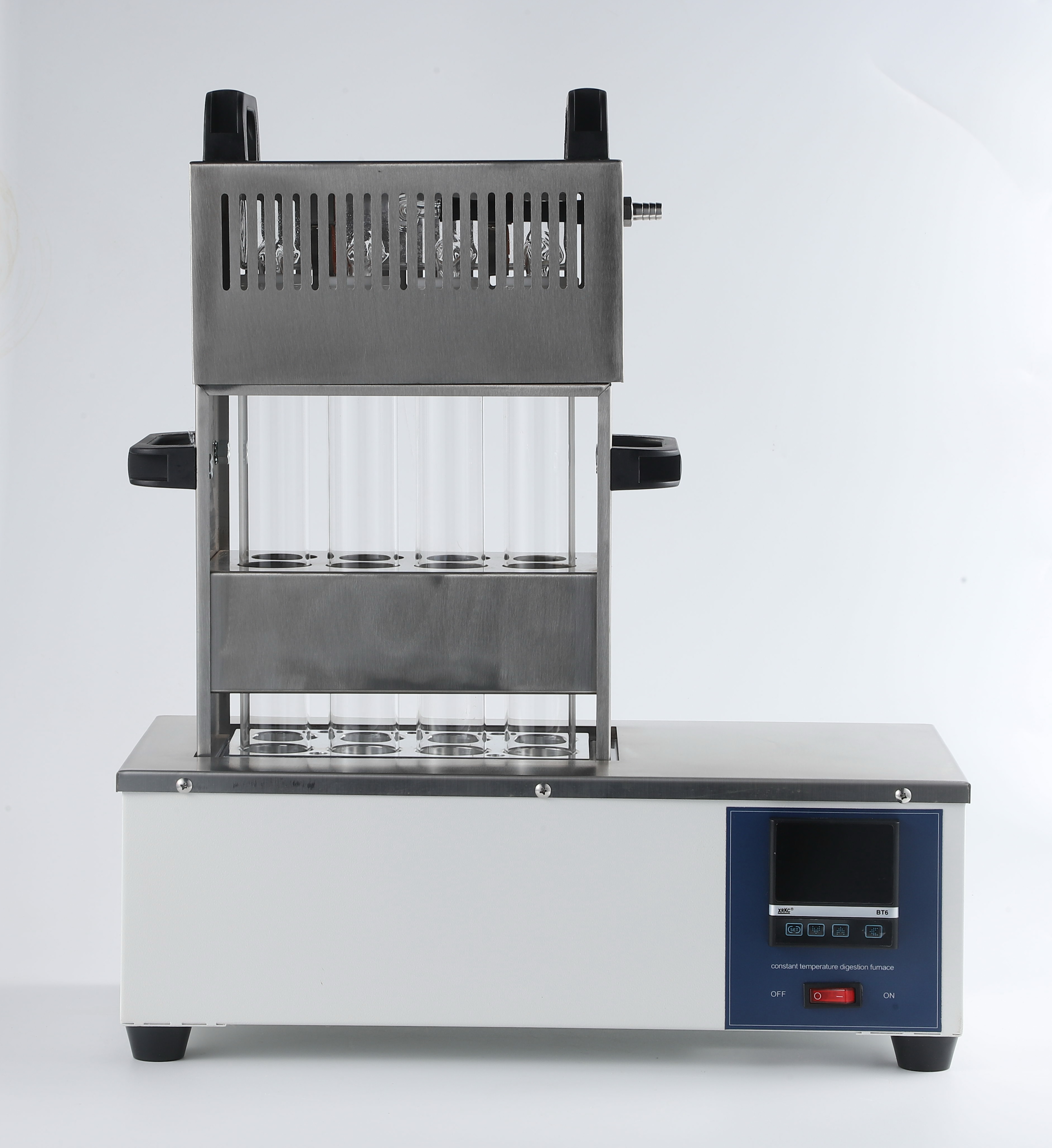

The digestion furnace is developed according to the principle of classical wet digestion. It is mainly used in agriculture, forestry, environmental protection, geology and petroleum, chemical industry, food and other departments, as well as colleges and universities and scientific research departments for the digestion treatment of plants, seeds, feed, soil, ore and other samples before chemical analysis, and is the best supporting product for Kjeldahl Nitrogen Analyzer
Intuitive and convenient digital temperature controller
It adopts LCD display thermostat, with functions such as scheduled shutdown and alarm, PID intelligent control technology, high temperature control accuracy, small temperature flush amplitude, simple and easy to operate
Features
The aluminum alloy (L) heating module is made of 6061 aluminum alloy material, with a design temperature of 450°C, which has the advantages of wide application and long life
The graphite (S) heating module is made of high-density graphite material, with a design temperature of 550°C, which has the advantages of high temperature and good temperature uniformity
The instrument table and test tube rack are welded by brushed stainless steel plates, which have certain anti-corrosion capabilities
Specifications
Model | KDN-8L | KDN-10L | KDN-20L | KDN-20S |
Number of wells in the sample | 8 | 10 | 20 | |
Aperture | Φ43.5*25 mm | |||
Heating module | 6061 aluminum all gold | graphite | ||
Design temperature | 450℃ | 450℃ | ||
Temperature control accuracy | ±1℃ | |||
Rate of warming | ≈8--13℃/min | |||
Turn off the machine regularly | 1-999 minutes | |||
Operating voltage | AC220V/50Hz | |||
Heating power | 1KW | 1.4KW | 2.1KW | |
Configuration checklist:
Model | KDN-8L | KDN-10L | KDN-20L | KDN-20S |
Digestion Tube Rack | 1 | 1 | 1 | |
Digestion Tube | 8 | 10 | 20 | |
