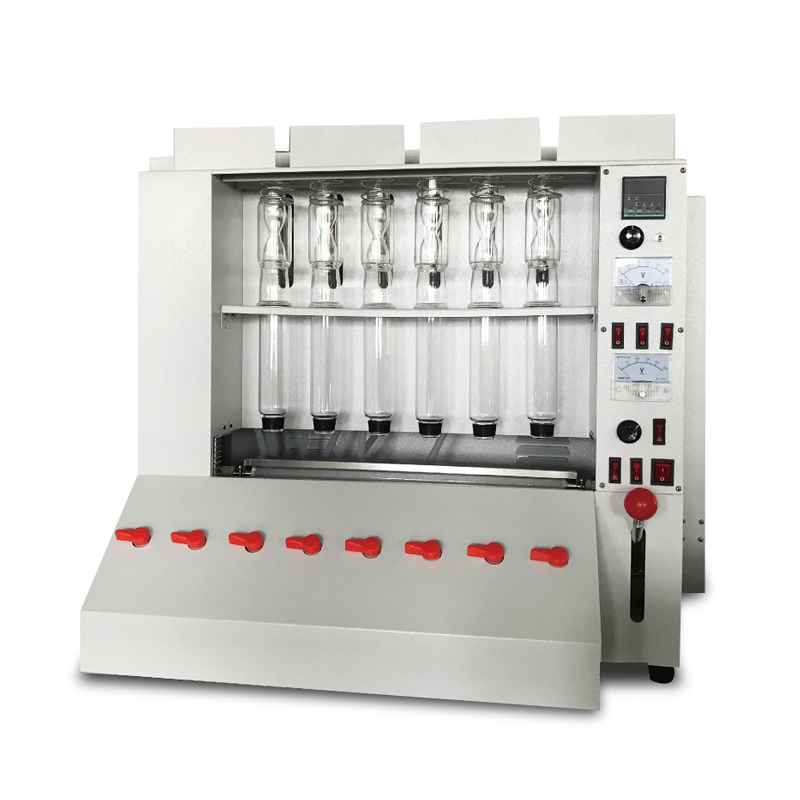

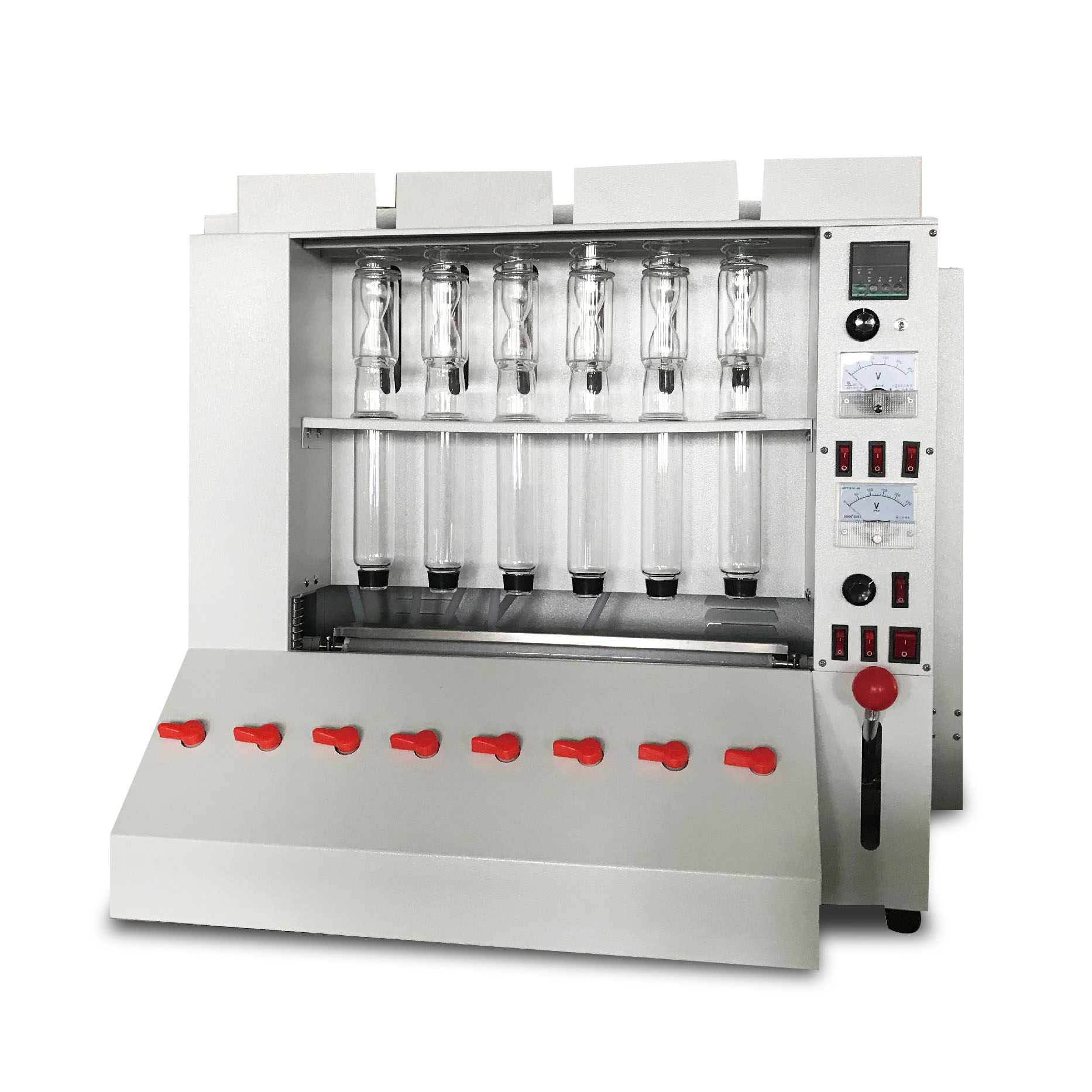

NDXW-06 Automatic Fiber Analyzer

The automatic fiber analyzer is an instrument that determines the crude fiber content of samples based on the commonly used acid and alkaline digestion methods followed by weight measurement. It is suitable for determining the crude fiber content in various grains, feeds, and other agricultural products. The test results comply with national standards, and the measurement targets include feed, grains, cereals, food, and other agricultural by-products that require crude fiber content determination. This product is an economical model with a simple structure, easy operation, and high cost-performance ratio.

Sample Count: 6

Repeatability Error: For crude fiber content below 10%, absolute error ≤ 0.4

For crude fiber content above 10%, relative error ≤ 4%

Determination Time: ≈90min (including 30M for acid, 30M for alkaline, and approximately 30M for filtration and washing)

Voltage: AC~220V/50Hz

Power: 1500W

Dimensions: 540×450×670mm

Weight: 30Kg
