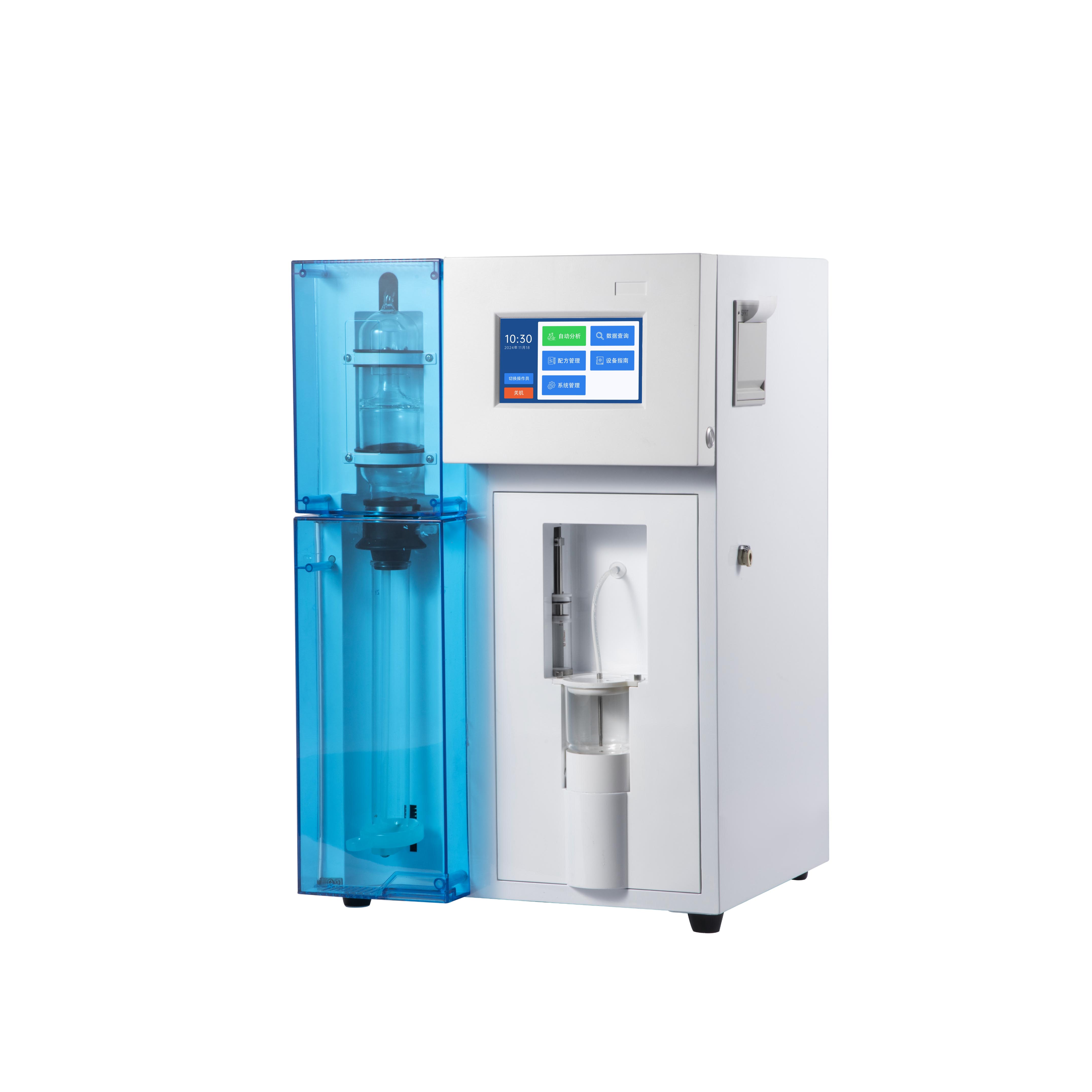

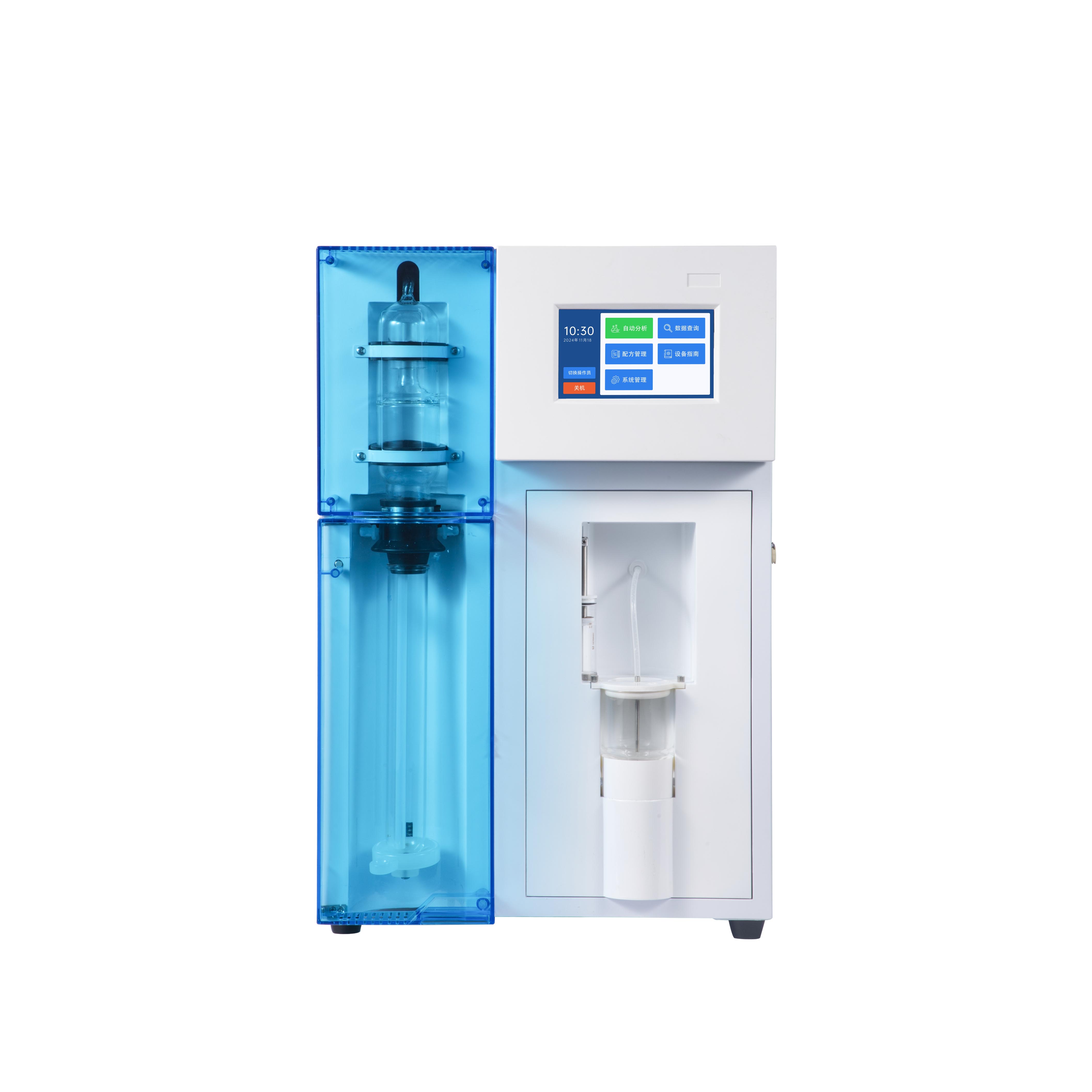

NK9870 Fully Automatic Kjeldahl Analyzer

Analysis range: 0.1—240 mg N
Precision (RSD): ≤0.5%
Recovery rate: 99-101%
Touch screen: 7-inch color LCD touch screen
Availability:
  • NK9870

  • AC220V/50Hz

  • 1

  • 1 year

  • China

Product Description

JK9870_

The Kjeldahl method is a classic technique for determining nitrogen.

It is widely used for the measurement of nitrogen in soil, food, livestock, agricultural products, feed, and other nitrogen-containing compounds. The process for sample analysis using this method involves three main steps: sample digestion, distillation and separation, and titration analysis.

Our company is one of the creators of the national standard GB/T 33862-2017 for "Fully (Semi) Automated Kjeldahl Nitrogen Analyzer." Therefore, the Kjeldahl analyzer series products we develop and manufacture comply with both the GB standard and relevant international standards.


Features

One-button automatic completion: Automatically completes reagent addition, temperature control, cooling water control, sample distillation and separation, titration analysis, data storage and display, waste liquid discharge, titration cup cleaning, and completion prompt. Control system: 7-inch color touchscreen with easy language switching between English and Chinese.

Three-level authority management: Supports electronic records, electronic labels, and an operation traceability query system that meets certiffcation requirements.

Dual analysis mode: Switches between automatic and manual modes as needed.

★ Automatic shutdown: Shuts down automatically after 60 minutes of inactivity, ensuring energy savings and safety.

★ Built-in protein factor lookup table: When the coefffcient = 1, the result is displayed as "nitrogen content," and when the coefffcient > 1, the result is converted to "protein content." TTe results are displayed, stored, and printed.

Titration system: Uses RGB coaxial light sources and sensors, offering wide color adaptability and high precision.

★ Patented RGB light intensity adjustment system: Automatically adapts to different sample concentrations.

Titration speed: Adjustable from 0.05ml/sec to 1.0ml/sec, with a minimum titration volume of 0.2µl per step.

High-precision titration system: Comprises a German ILS 10mL (optional 25mL) syringe and a linear motor with 0.6mm lead screw.

Visible titration cup: Allows easy observation of the titration process and facilitates cleaning.

Distillation time: Adjustable from 10 to 9990 seconds.. Data storage: (16M) Can store up to 1 million data sets for user reference.

5.7CM thermal printer: Features automatic paper cutting.

★ Anti-splash bottle: Made from high molecular PP plastic, suitable for high-temperature, strong alkaline, and strong acidic environments.

★ Steam system: Made from 304 stainless steel, with patented "separated capacitive liquid level sensor control" technology, ensuring safety, reliability, and longevity.

★ Condenser: Made from 304 stainless steel for fast cooling and stable analysis.

Leakage protection system: Ensures operator safety.

Safety door and alarm system: Ensures personal safety.

Digestion tube misalignment protection system: Prevents injury from reagents and steam.

Steam system low-water alarm: Prompts shutdown to prevent accidents.

Steam boiler over-temperature alarm: Shuts down to prevent overheating.


Technical Specification

Model

NK9870

Analysis range

0.1-240 mg N

Precision (RSD)

≤0.5%

Recovery rate

99-101%

Minimum titration volume

0.2 μL/step

Titration speed

0.05-1.0 mL/s , adjustable

Distillation time

10-9990 seconds, adjustable

Sample analysis time

4-8 minutes (cooling water at 18℃)

Titrant concentration range

0.01-5 mol/L

Titration cup capacity

300 mL

Touch screen

7-inch color LCD touch screen

Data storage capacity

1 million data sets

Printer

5.7 cm thermal printer with automatic paper cutting

Safe alkali addition mode

0-99 seconds

Automatic shutdown time

60 minutes

Working voltage

AC 220V/50Hz

Heating power

2000W

Main unit dimensions

500 × 460 × 710 mm (L × W × H)


Pack List

NK9870 main unit

1 unit

5L reagent bucket

2 pieces

10L distilled water bucket

1 pieces

20L waste liquid bucket

1 pieces

1L titration bottle

1 pieces

Reagent tubing

4 tubes

Cooling water tubing

2 tubes

Power cord

1 cord

Digestion tube

1 tube

Printer paper

8 rolls
