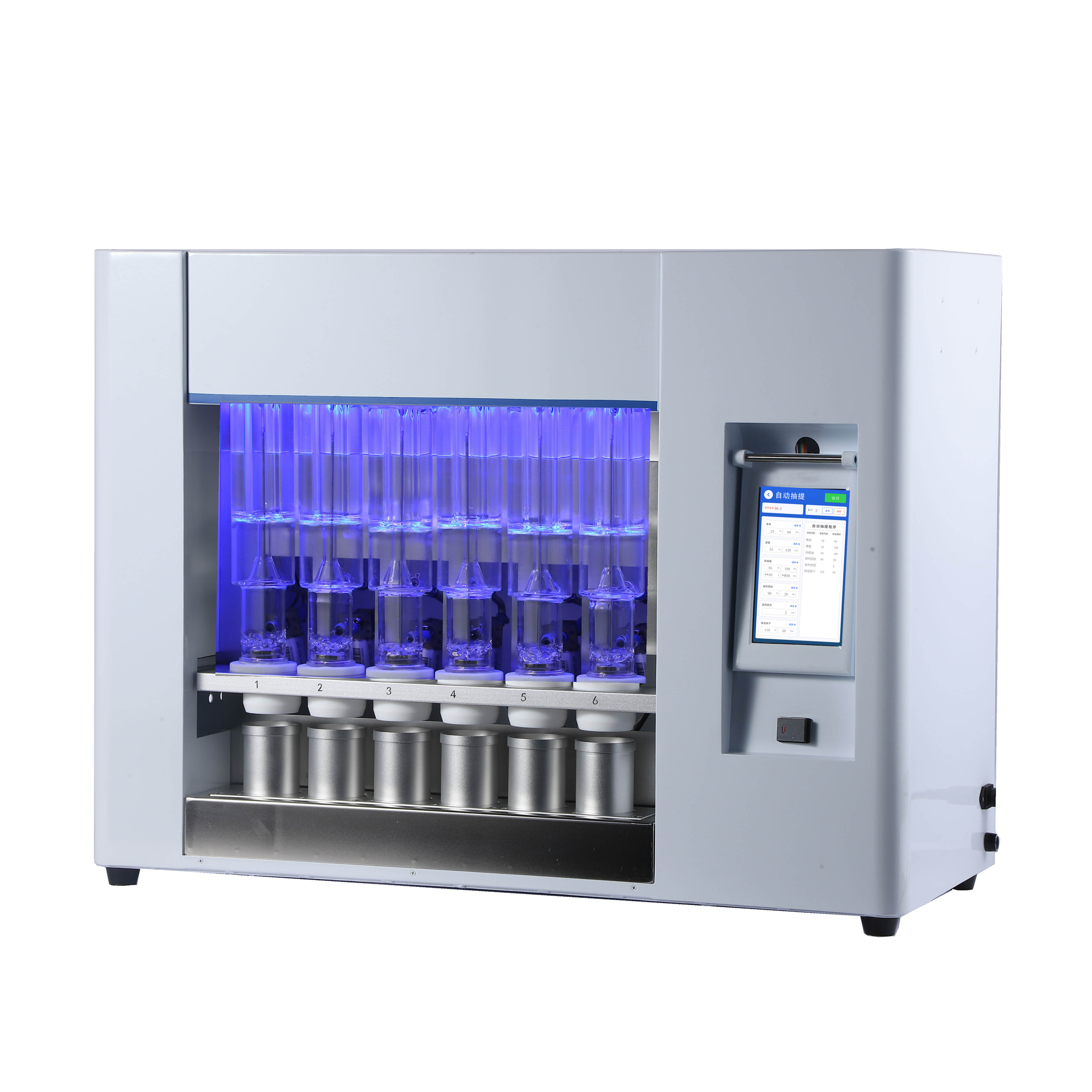

NDZF-06A Fully Automatic Fat Analyzer

Analysis range: 0.1% - 100%
Temperature control range: RT + 5°C - 300°C
Temperature control accuracy: ±1°C
Number of samples per determination: 6
Availability:
  • NDZF-06A

  • 220V ± 10% / 50Hz

  • 1

  • 1 year

  • China

Product Description

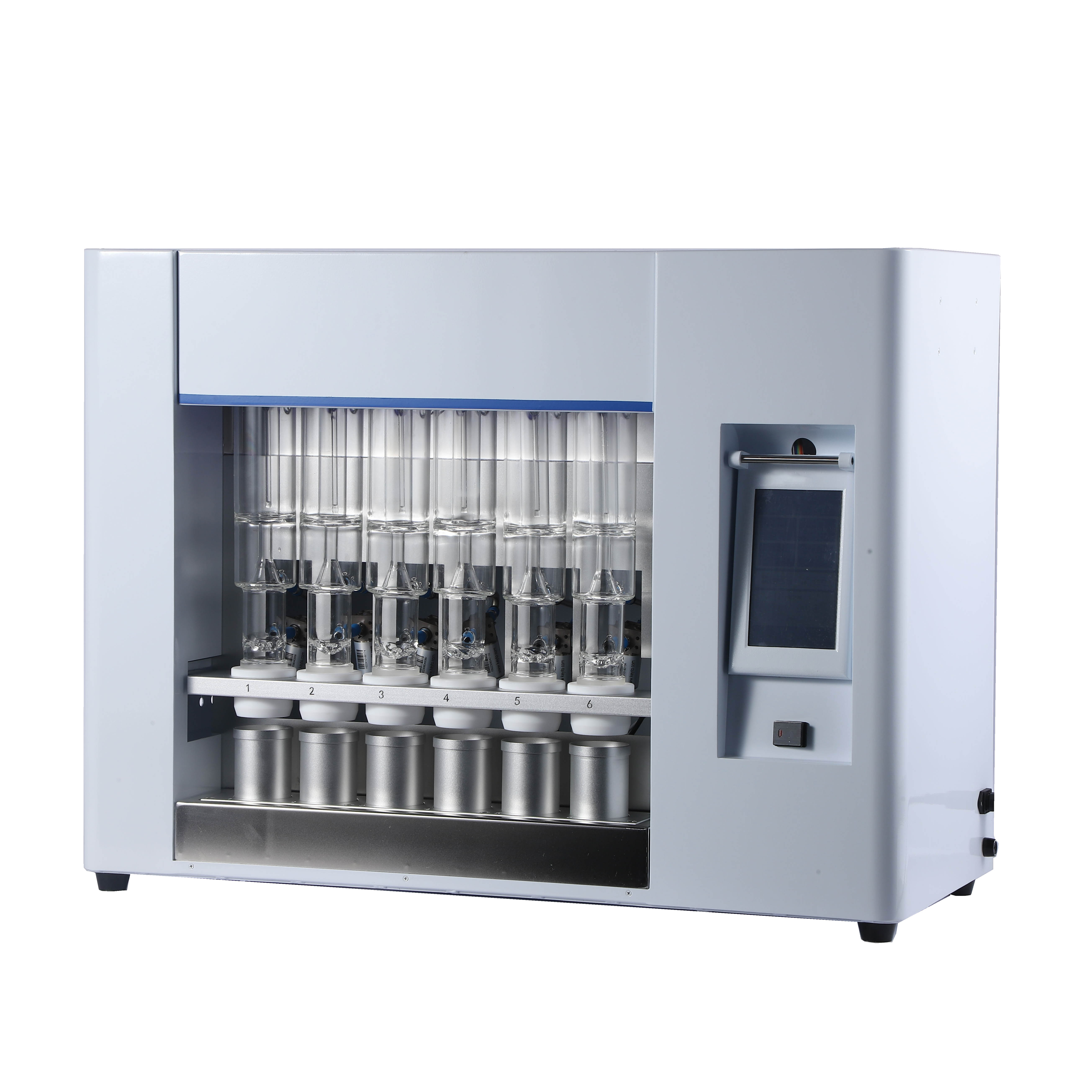

2-2 JRZF-6A

NDZF-06A is the product with the highest automation program and performance in China.

Equipped with patented electronic refrigeration system.

One-click complete whole analysis process:

Easy to operate, stable performance, high precision, with: Soxhlet extraction, hot extraction, Soxhlet hot extraction, continuous flow and standard hot extraction and other automatic extraction modes


Application

It is widely used in agricultural, food , chemical, environment and other areas.

Application

Features

★Patent invention "Application of Electronic Refrigeration Technology in Fat (Soxhlet) Extractor" does not require large amounts of tap water, energy-saving, environmentally friendly, and offers high reflux extraction efficiency.

★One-key fully automatic completion: solvent cup clamping, sample basket lifting (lowering), temperature increase, soaking, various reflux extraction methods, solvent recovery, solvent collection, sample and cup drying, valve opening/closing, cooling system activation/deactivation, all procedures.

★Solvent auto-collection system can automatically collect the recovered solvent back into the solvent bottle for reuse.

★Automatic solvent refill during analysis

★Ambient temperature soaking, hot soaking, hot extraction, continuous extraction, intermittent extraction, solvent recovery, solvent collection, solvent cup and sample drying can be chosen and combined at will.

★Sample and solvent cup drying can replace the function of a drying oven, convenient and quick.

★7-inch color touch screen: operable at the instrument front, on the workbench surface, handheld, or magnetically placed on the side, friendly interface design, convenient and easy to learn.

Electromagnetic valve can be operated by point pressing, timing, or manual operation.

Combination formula management can store up to 99 different analytical formula programs.

Fully automatic lifting and clamping system is highly automated, reliable, and convenient.

Menu-style program editing, intuitive, easy to operate, and can be repeatedly loaded.


Up to 40 program segments, multiple temperatures, multilayer multi-cycle soaking, extraction, and temperature increase.

Integral metal bath deep-hole heating block (22mm) heats up quickly, and the solvent uniformity is good.

PTFE seal joint and Saint-Gobain organic solvent-resistant tubing.

Automatic lifting function of the extraction filter paper cup holder ensures samples are simultaneously immersed in organic solvents, contributing to improved consistency of sample test results.

Customized components are suitable for various organic solvents, including petroleum ether, ether, alcohols, halogenated hydrocarbons, and other partial organic solvents.

Petroleum ether leakage alarm: when the working environment becomes hazardous due to leakage of petroleum ether, the alarm system activates and heating stops.

Equipped with two types of solvent cups, aluminum alloy, and glass, for user selection.


Technical Specification

Model

NDZF-06A

Analysis range

0.1% - 100%

Temperature control range

RT + 5°C - 300°C

Temperature control accuracy

±1°C

Number of samples per determination

6

Sample weight range

0.5g - 15g

Solvent cup volume

150mL

Solvent recovery rate

≥85%

Solvent collection

Automatic/Manual

Control screen

7 inches

Solvent reflux stopper

Electromagnetic auto open/close

Extractor lift system

Automatic

Heating power

1100W

Electronic refrigeration power

700W

Voltage

220V ± 10% / 50H
