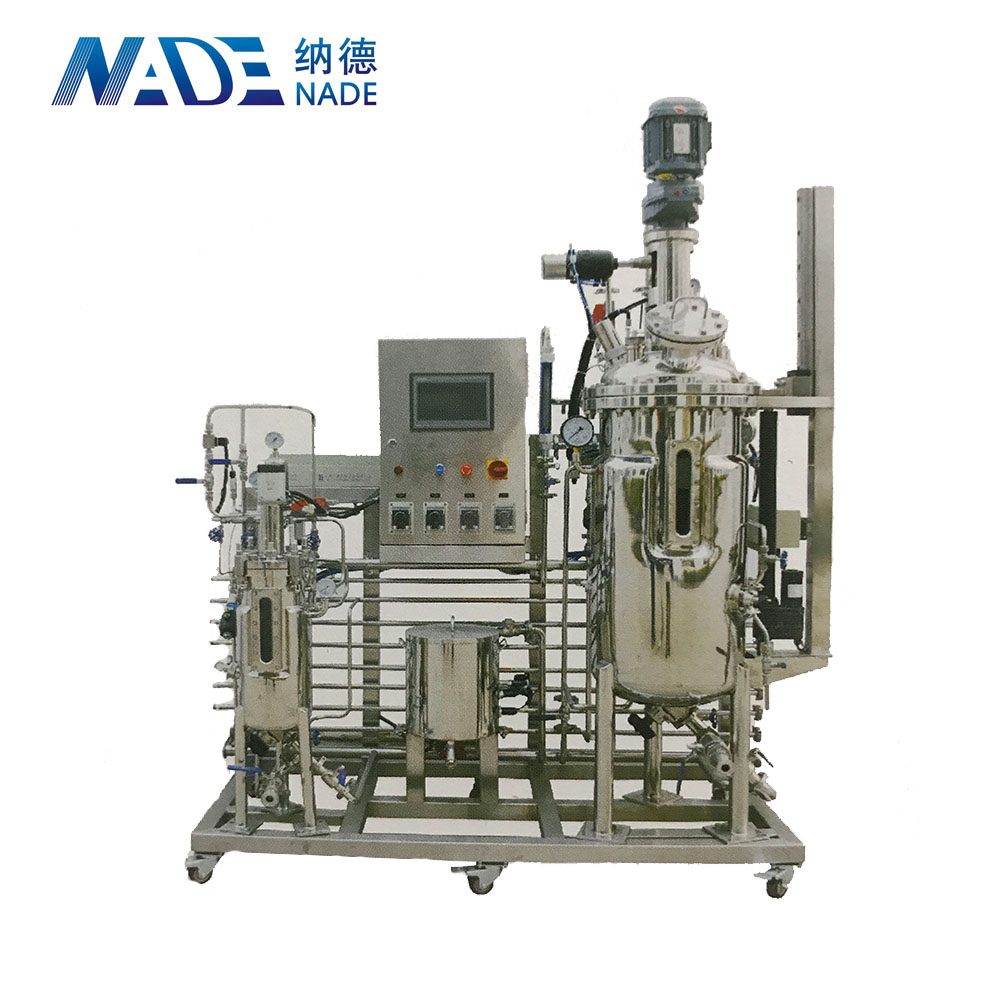

Nade Stainless steel Fermentation tank

Technical parameter

Model

Stainless steel fermentation tank

Nominal volume

10L-10000L

Liquid loading coefficient

65-80%

Tank material

SUS316L/SUS304

Mixing system

Stirring on the machine, stirring under the machine, stirring on the magnetic field,

stirring under the magnetic force

Aseptic mechanical seal

Stainless steel frame, equipped with stable balance device

Brand DC motor or AC deceleration motor

The blade can be determined according to the customer's needs

Flat blade/oblique blade/bowed blade/ axial flow blade

PH control

PH imported electrode, high temperature steam sterilization Online detection, automatic

alarm, PID intelligent control, can be achieved

With fed Association; automatic generation of PH curve, the cumulative amount of automatic report, acid, can be separately controlled. According to the requirement of customers set the section number

Do control

DO imported electrode, high temperature steam sterilization
Measuring range: 0-100%accuracy: 1% PID control, with agitation, feeding related control, can

automatically
generate DO curves,statements,according to customer requirements set the number of block control

Sterilization method

Sterilization in place

Extended configuration (options)

Fully automatic SIP and CIP functions
Automatic pressure detection and control
Automatic flow measurement and control
Feeding weighing system
Automatic lifting system for tank lid
O2 and CO2, gas detection of methanol and ethanol content on-line detection
