Vacuum Drying Equipment
15kg
Medicine Processing, Chemicals Processing, Food Processing
New
China
Nade
customizable
6500w
1490*850*1620mm+240mm oil cylinder
CE Certificate
Easy to Operate
1 Year
Online support
800
No service
laboratory
None
None
Ordinary Product
Provided
Not Available
1 Year
Other
0.5m^2
405*405mm
3pcs
410*410mm
3+1 pcs
70mm
-50℃~+70℃
±1℃
≤-75℃
5L(thickness 10mm)
Product Description

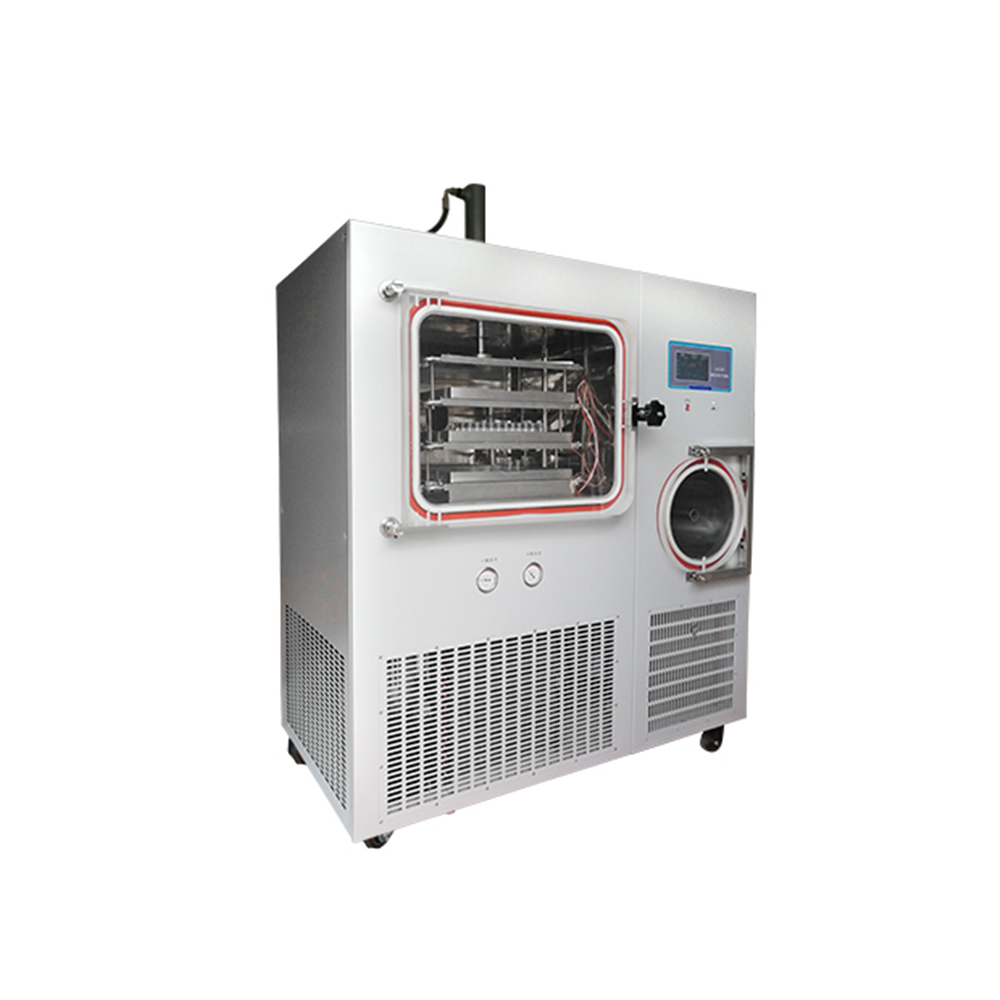

NADE LGJ-50FY Top Press Type Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer
LGJ-50FY Top Press Type Experimental Silicone Oil Heating Vacuum Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.
Freezing and drying process of LGJ-50FY (silicon oil heating) are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.
Application:
This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
1. It is our company's patented product . Freezing and drying is finished in the same place. It is easy to operate,and have a good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Vacuum adjustment during drying operation to avoid foaming and blowing of special materials and improve drying efficiency.
15. The user level and password can be set, and decentralized operation management.
| Model | LGJ-50FY | |
| Specification | Top Press type(silicone oil heating) | |
| Freeze drying area | 0.5m^2 | |
| Tray dimensions | 405*405mm | |
| No. of tray | 3pcs | |
| Shelf dimensions | 410*410mm | |
| Shelf number | 3+1 pcs | |
| Shelf spacing | 70mm | |
| Shelf temp. range | -55℃~+70℃ | |
| Shelf accuracy | ±1℃ | |
| Cold trap temp. | ≤-75℃ | |
| Ice collecting capacity | ≥10kg/24h | |
| Pumping speed | 8L/S | |
| Ultimate vacuum | ≤5pa | |
| Power | 6500w | |
| Weight | 800kg | |
| Overall dimensions | 1490*850*1620mm+240mm oil cylinder | |
| Cooling mode | wind cooled | |
| Shipping capacity | 5L(thickness 10mm) | |
| Vials capacity | Φ12mm | 3705pcs |
| Φ16mm | 2058pcs | |
| Φ22mm | 1050pcs | |
Optional accessories and functions
eutectic point tester
freeze drying finished judgement function
·vacuum pump anti-returned oil device
Automatic backfill/drainage system
·cold trap electrical heat defrosting
·oil mist filter system
Vacuum adjustment system
LYO-MEGA Software System
Mobile phone APP monitoring system
data recorder
backfill filter
Automatic backfill and drainage control system
capacitive vacuum gauge
External hanging bottle device
·imported vacuum pump
other models

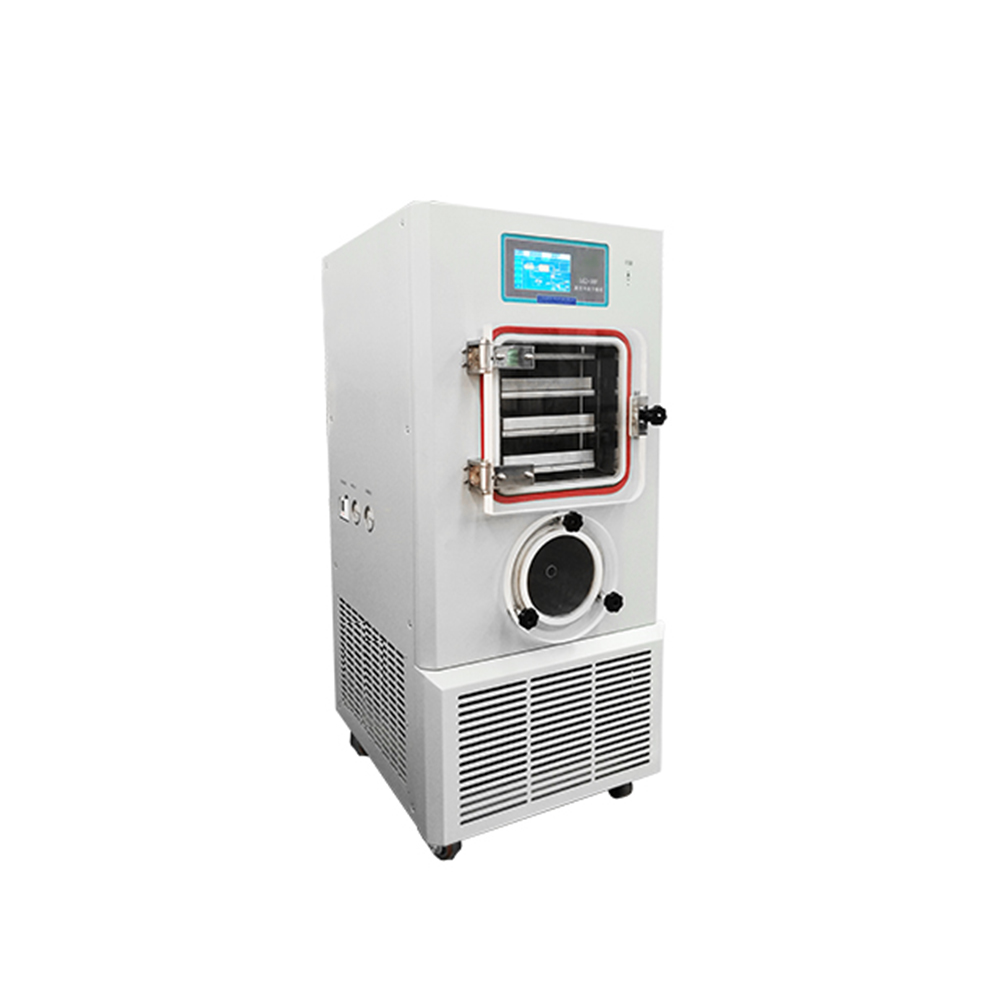

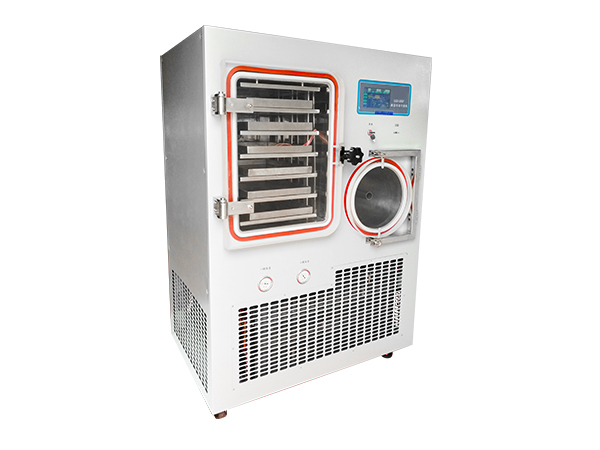

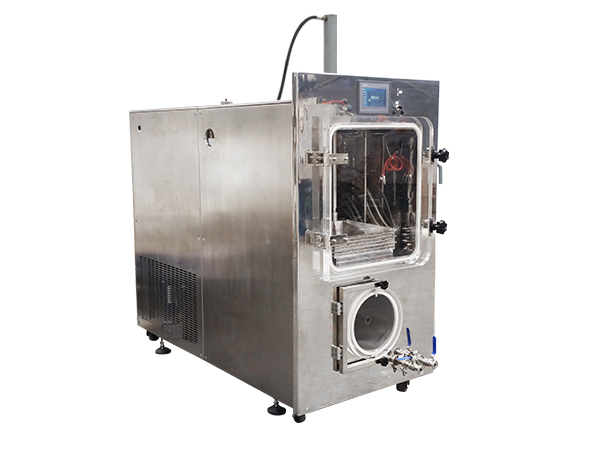

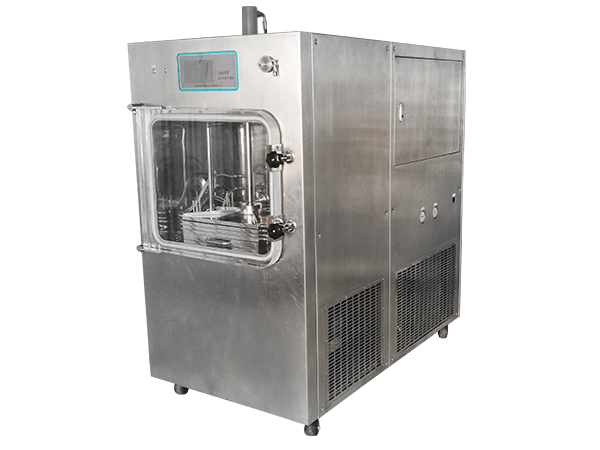

LGJ-20FY LGJ-30F LGJ-30FY LGJ-50F
LGJ-20F LGJ-100F LGJ-100FY
There are other series model:
LGJ-10 series,LGJ-12 series,LGJ-12S series,LGJ-18 series,LGJ-18 series,etc.
Please contact us for more information on the above models.
