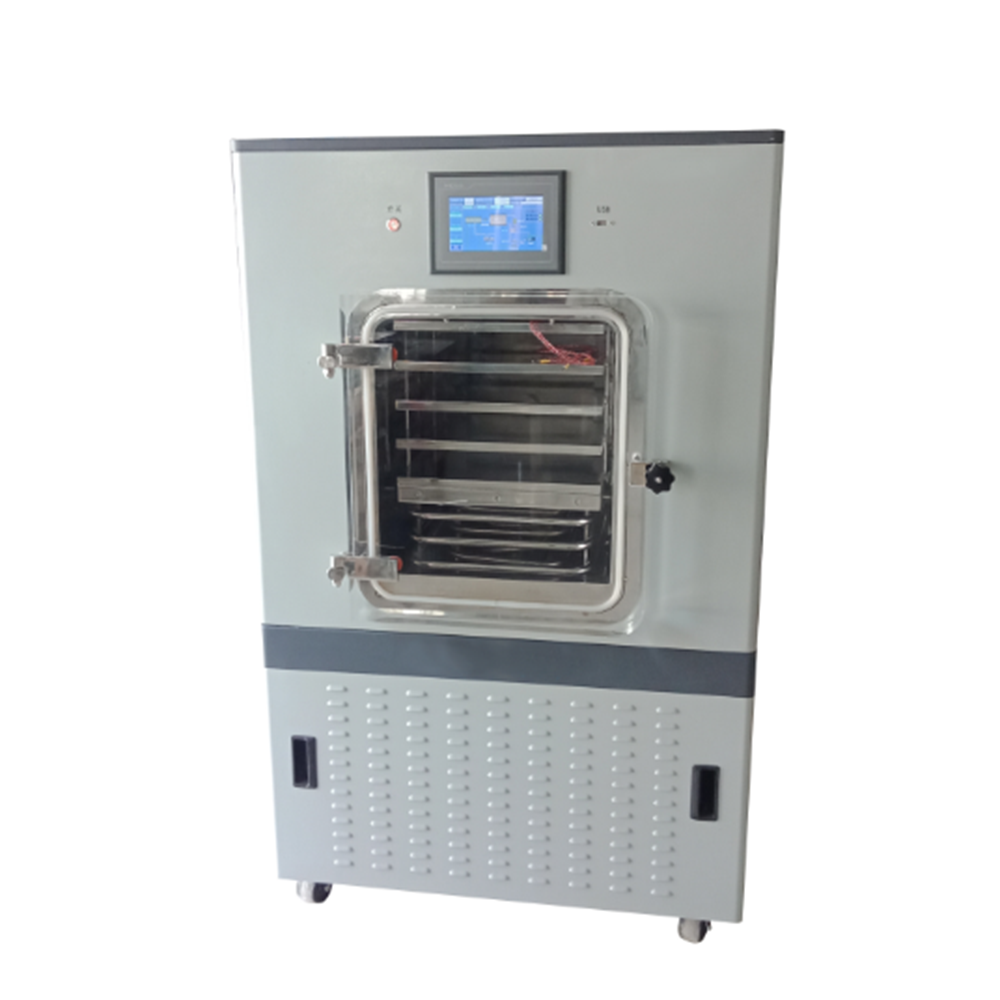

NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer

  • Vacuum Drying Equipment

  • 22kg

  • Medicine Processing, Chemicals Processing, Food Processing

  • New

  • China

  • Nade

  • customizable

  • 13500w

  • 1200*2100*1700mm

  • CE Certificate

  • Easy to Operate

  • 1 Year

  • Online support

  • 1200

  • No service

  • laboratory

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Pump

  • 2.25m^2

  • 80mm

  • >30Kg

  • 500*900mm

  • 5+1 layers

  • -50℃~+70℃

  • ±1℃

  • ≤-70℃

  • 22L(thickness 10mm)

  • 1200kg

Product Description

NADE LGJ-20F Standard Type Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer

Product Description

200F (silicon oil heating) freeze dryer, freezing and drying process made in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models has shelf heating and programmable functions.They can records freeze drying curves, data can be output by U-disk. User can clearly view the freeze drying process.

Application:

Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.

NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer

Feature

1. The company's patented product square warehouse in situ vacuum freeze dryer, pre­freezing, drying in situ completed,easy to operate, good drying effect.

2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and can observe the whole process of freeze-drying.

3. The inflatable (drainage) valve adopts safety diaphragm valve, which can connect inert gas source, fill inert gas after drying, and prolong the shelf life of materials.

4. Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability.

5. International well-known brand compressor, high efficiency and energy saving, long service life, low noise.

6. The patented technology of partition and the fuzzy control technology of partition temperature have the advantages of small temperature difference of shelf, high precision of temperature control and even drying effect.

7. Powerful sensor calibration function ensures long-term use of measurement accuracy.

8. 7-inch real-color industry embedded touch screen+ SH-HPSC-11 modular controller, high control accuracy, stable and reliable performance.

9. The specially designed FD-PILOT control system can preserve hundreds of formulations, each of which contains 36 temperature control sections, so as to improve the process optimization rate.

10. Intelligent data recording system can record and display the temperature curve of cold trap, sample temperature curve and vacuum curve in real time. The derived data can be browsed and printed by computer and operated in a variety of ways to facilitate process optimization and drying effect verification

11. Flexible manual + automatic control mode, manual for exploring process, automatic for batch production

12. Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance

13. User level and password can be set, and operation management can be decentralized.

Specification

Model

LGJ-200F

Drying

chamber

Freeze-drying area

2.25m2

Layers of shelf

5+1

Temperature scope of shelf

-50-+70(no-load)

shelf temperature error

±1(in balance)

shelf spacing

80mm

Size of shelf

500mm*900mm

Condenser

Min. Temperature of condenser

≤-70(no-load)

Water-capture capability

>30Kg

Liquid material

22L(Material thickness 10mm)

defrosting

Electric defrost

final Vacuum degree

≤ 5Pa

Style of cooling

Fan cooling

Main functions

Manual + Auto Control Mode, Sensor calibration, Intelligent temperature control, Freeze drying termination reminding and other functions are available.

Basic configuration

Installation Power

13.5KW

Not actual working power

Power

3Ph+N+PE, 380V

Shape and other parts

dimension

About 1200x2100x1700mm

Weight

About 1200

Noise

≤ 80dB

Electrical system

Ground protection

other models

NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer

LGJ-20FY LGJ-30F LGJ-30FY LGJ-50F

NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-200F drying capacity 22kg Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer

LGJ-50FY LGJ-100FE LGJ-100FY

There are other series model:LGJ-10 series,LGJ-12 series,LGJ-12S series,LGJ-18 series,LGJ-18 series,etc.

Please contact us for more information on the above models.
