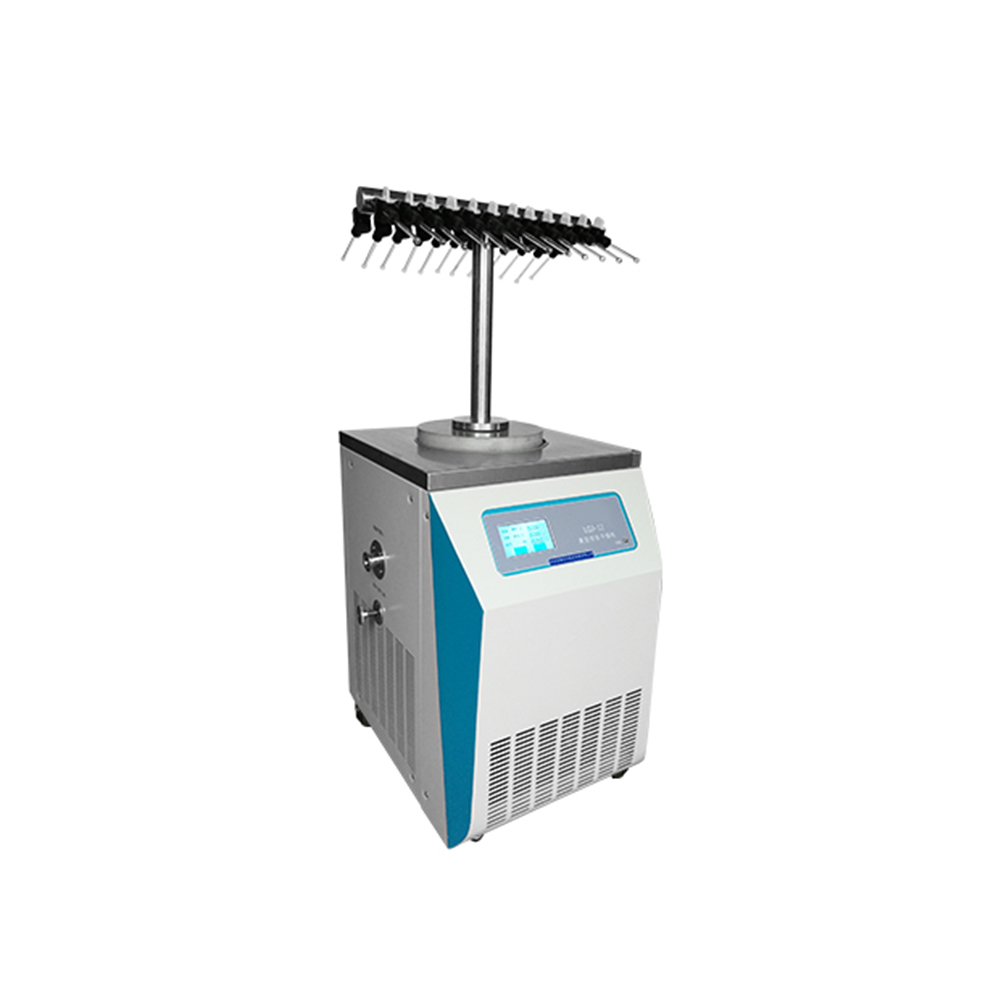

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

  • Vacuum Drying Equipment

  • 4kg

  • Medicine Processing, Food Processing

  • New

  • Zhejiang, China

  • Nade

  • 220V 50HZ

  • 970W

  • 615*450*370mm

  • CE Certificate

  • Competitive Price

  • 1 Year

  • 41

  • No service, Online support

  • laboratory

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Other

  • 24pcs

  • ≤-56℃,optional≤-80℃

  • ≤5pa

  • 240mm

  • dia.215mm

  • 3-4kg/24h

  • 2L/S

  • wind cooled

  • air cooled

  • 41kg

Product Description

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

Product Description

LGJ-12E T-type Experimental Freeze Dryer has 24pcs standard rubber sealing valves and 24 ampules can be mounted. Special requirements can be customized. It is suitable for the preservation of bacteria, fungi and other microbial strains in the ampoule tube. The ampule sealing method is often used in the laboratory. The samples are sealed in small ampoules after freeze drying. It has the advantages of long preservation period, small variation, ease of large-scale preservation and wide applications.

Applications:

It is suitable for the preservation of bacteria, fungi and other microbial strains in the ampoule tube. The ampule sealing method is often used in the laboratory. The samples are sealed in small ampoules after freeze drying. It has the advantages of long preservation period, small variation, ease of large-scale preservation and wide applications.

Feature

1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. World- known brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

Specification

Model

LGJ-12E

Specification

T-type

No. of tray

24pcs

Cold trap temperature

≤-56℃,optional≤-80℃

Cold trap dept

240mm

Cold trap dia.

dia.215mm

Ice collecting capacity

3-4kg/24h

Pumping speed

2L/S

Ultimate vacuum

≤5pa

Power

970w

Weight

41kg

Overall dimensions

615*450*370mm

-80℃ overall dimensions

850*680*405mm

T-trype frame dimensions

430*480mm(H*L)

Cooling mode

wind cooled

Defrosting mode

air cooled

Optional accessories and functions

cold trap temperature -80℃

vacuum pump anti-returned oil device

cold trap electrical heat defrosting

oil mist filter system

ampule sealing device

imported vacuum pump

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

other models:

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

LGJ-12A LGJ-12B LGJ-12C

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

LGJ-12D LGJ-12T

There are other series model:LGJ-10 series,LGJ-12S series,LGJ-18 series,LGJ-18S series,etc.

Please contact us for more information on the above models.

Certifications

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

Packaging & Shipping

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

Company Information

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

NADE LGJ-12E T-type laboratory vacuum Lyophilizer/freeze drying equipment/freeze dryer for microbial strains in the ampoule tube

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
