Product Description

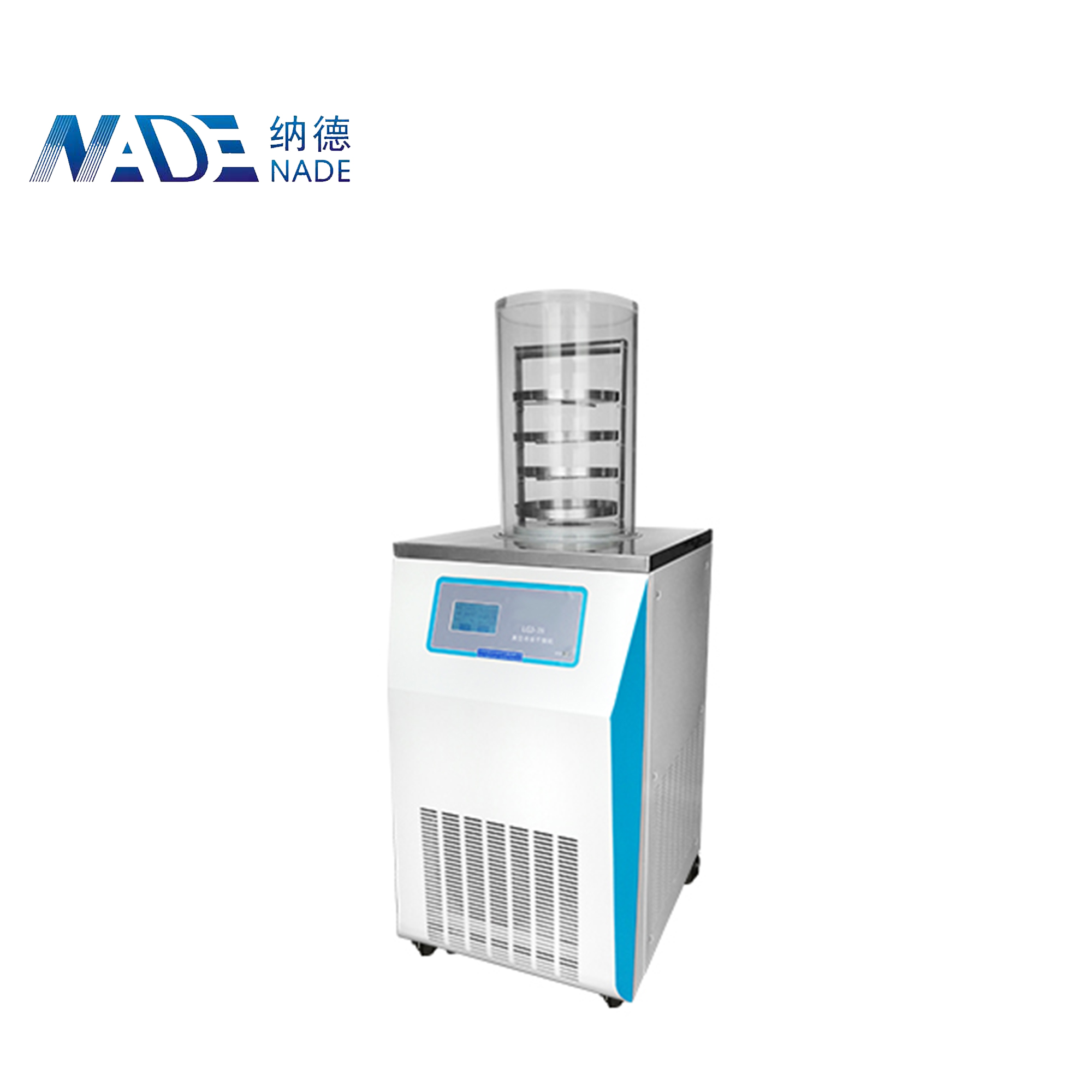

NADE LGJ-18A Standard Type Laboratory Lyophilizer/freeze drying equipment/freeze dryer of liquid, pasty, solid materials
LGJ-18A standard experimental vacuum freeze dryer widely used in medicine, pharmacy, biology research, chemical industry and food production,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.LGJ-18A is suitable for experiment in laboratory or small quantity of production. It can meet the regular freeze drying requirments of the most laboratory.
Applications:
Suitable for freeze-drying of bulk (liquid, pasty, solid) conventional materials.
1. All-in-one structure , small size, no external flange, easy to use, no leakage.
2. All materials in contact with the product use inert materials to meet the requirements of the GLP.
3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6. Patented gas diversion technology, and strong ice holding ability.
7. World- known brand compressors, high efficiency, long life, low noise.
8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.
| Model | LGJ-18A |
| Specification | Standard type |
| Freeze drying area | 0.18m^2/0.27m^2 |
| Material tray dia. | dia.240mm |
| No. of tray | 4pcs/6pcs |
| Tray spacing | 70mm |
| Cold trap temperature | ≤-56℃,optional≤-80℃ |
| Cold trap dept | 400mm |
| Cold trap dia. | dia.270mm |
| Ice collecting capacity | 6kg/24h |
| Pumping speed | 4L/S |
| Ultimate vacuum | ≤5pa |
| Power | 1400w |
| Weight | 105kg |
| Overall dimensions | 630*580*970mm |
| -80℃ overall dimensions | 810*580*905mm |
| Drying chamber size | dia.300*445mm |
| Cooling mode | wind cooled |
| Defrosting mode | air cooled |
| Shipping capacity | 1.8L/2.7L(thickness 10mm) |
Optional accessories and functions
·cold trap temperature -80℃
·vacuum pump anti-returned oil device
.cold trap electrical heat defrosting
·oil mist filter system
·imported vacuum pump
other models:
LGJ-18B ND-18C ND-18D
ND-18E LGJ-18T LGJ-18-80T
There are other series model:LGJ-10 series,LGJ-12 series,LGJ-12S series,LGJ-18S series,etc.
Please contact us for more information on the above models.
