Vacuum Drying Equipment
10kg
Medicine Processing, Chemicals Processing, Food Processing
New
China
Nade
380V
6500w
1170*830*1665mm
Long Service Life
1 Year
Online support, Video technical support
700
No service
laboratory, industry
None
None
Ordinary Product
Provided
Not Available
1 Year
Pump, Other
Oil Heating
1m^2
70mm
≤ 5Pa
475*360mm
6+1 layers
-50℃~+70℃
≤--75℃
10L(thickness 10mm)
700kg
3 phases + N + PE,380V
Product Description

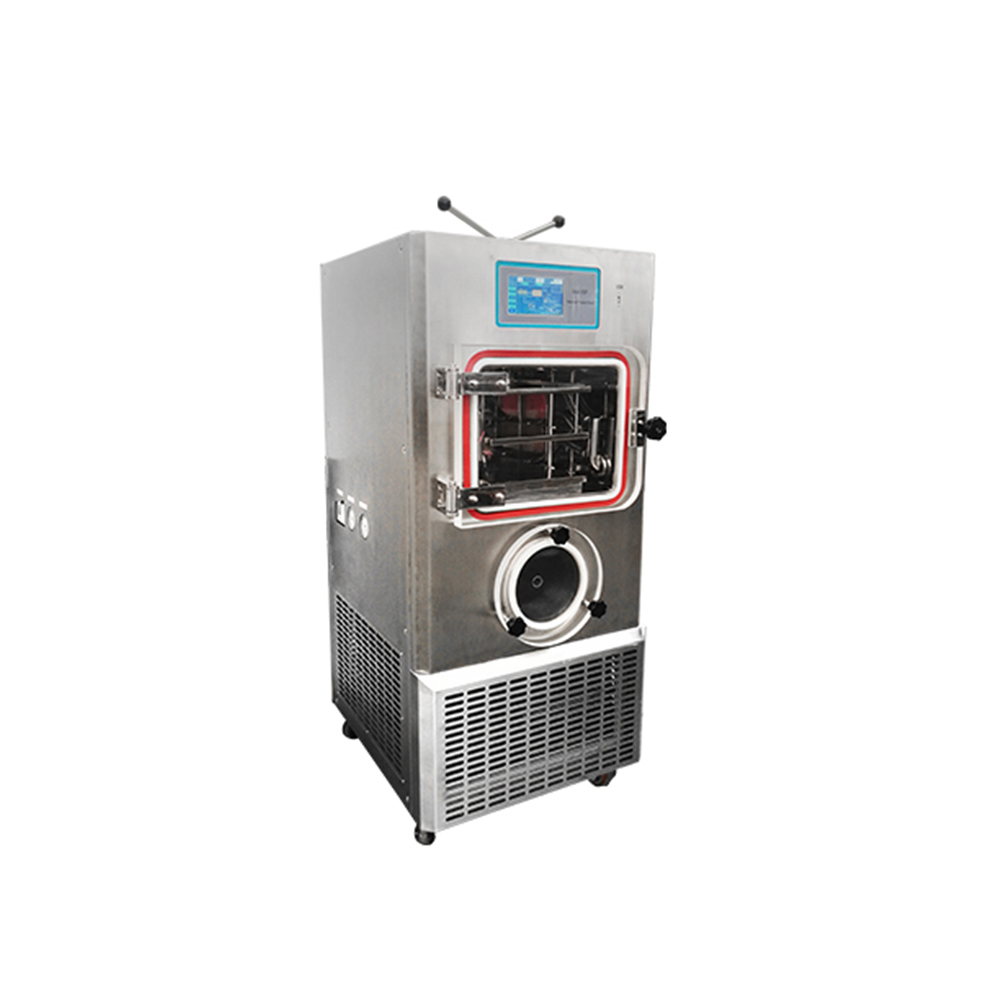

NADE LGJ-100F Standard Type Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer
100F(silicon oil heating) freeze dryer, freezing and drying process made in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models has shelf heating and programmable functions.They can records freeze drying curves, data can be output by U-disk. User can clearly view the freeze drying process.
Application:
Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.
1. The company's patented product square warehouse in situ vacuum freeze dryer, prefreezing, drying in situ completed,easy to operate, good drying effect.
2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and can observe the whole process of freeze-drying.
3. The inflatable (drainage) valve adopts safety diaphragm valve, which can connect inert gas source, fill inert gas after drying, and prolong the shelf life of materials.
4. Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability.
5. International well-known brand compressor, high efficiency and energy saving, long service life, low noise.
6. The patented technology of partition and the fuzzy control technology of partition temperature have the advantages of small temperature difference of shelf, high precision of temperature control and even drying effect.
7. Powerful sensor calibration function ensures long-term use of measurement accuracy.
8. 7-inch real-color industry embedded touch screen+ SH-HPSC-11 modular controller, high control accuracy, stable and reliable performance.
9. The specially designed FD-PILOT control system can preserve hundreds of formulations, each of which contains 36 temperature control sections, so as to improve the process optimization rate.
10. Intelligent data recording system can record and display the temperature curve of cold trap, sample temperature curve and vacuum curve in real time. The derived data can be browsed and printed by computer and operated in a variety of ways to facilitate process optimization and drying effect verification
11. Flexible manual + automatic control mode, manual for exploring process, automatic for batch production
12. Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance
13. User level and password can be set, and operation management can be decentralized.
| Model | LGJ-100F |
| Specification | Standard type(silicone oil heating) |
| Freeze drying area | 1.04m^2 |
| Tray dimensions | 475×355mm |
| No.of tray | 6+1pcs |
| Shelf dimensions | 480×360mm |
| Shelf number | 6pcs |
| Shelf spacing | 70mm |
| Shelf temp. range | -50℃~+70℃ |
| Shelf accuracy | ±1℃ |
| Cold trap temp. | ≤-75℃(no-loading) |
| Ice collecting capacity | ≥15kg/24h |
| Ultimate vacuum | ≤5pa |
| Power | 6500w |
| Weight | 700kg |
| Overall dimensions | 1170×830×1665mm |
| Cooling mode | Air cooled |
| Defrosting | Electric defrosting |
| Shipping capacity | 10L(thickness 10mm) |
| Power supply | 3 phases + N + PE,380V |
other models
LGJ-20FY LGJ-30F LGJ-30FY LGJ-50F
LGJ-50FY LGJ-100FY LGJ-200F(22kg)
There are other series model:LGJ-10 series,LGJ-12 series,LGJ-12S series,LGJ-18 series,LGJ-18 series,etc.
Please contact us for more information on the above models.
