Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

  • 1 year

  • other

  • Zhejiang, China

  • Nade

  • NIB-100

  • Fluorescence Microscope

  • BINOCULAR

  • EW10x/ 22

  • Fluorescent Biological Microscope

  • NIB-100

  • Trinocular Head Inclined at 300

  • Diameter 45mm, Blue,Green and Ground Glass

  • With LWD Infinitive Plan Objective

Product Description

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

Product Description

Discription:

1.Excellent Optical Function with Infinitive Optical System.

2.Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.

Feature:

With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier

Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable

Different Holders for Various Observations

With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

Specification:

Viewing Head Trinocular Head Inclined at300, Interpupillary Distance48-75mm S
Eyepiece High-point, Extra Wide Field Eyepiece EW10×/ 22 S
Objective LWD Infinite Plan Objective 4×/ 0.1, WD 18mm S
10×/ 0.25, WD 10mm O
20×/ 0.4, WD 5.1mm O
40×/ 0.6, WD 2.6mm S
Infinite Plan Phase Objective PH10×/ 0.25, WD 10 mm S
PH20×/ 0.4, WD 5.1mm S
PH40×/ 0.65, WD 0.35mm O
Nosepiece Quintuple Nosepiece S
Condenser ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) S
Centering Centering Telescope (Φ30MM) O
Phase Annulus 10×-20×,40× Phase Annulus Plate S
10×-20×,40× Phase Annulus Plate O
Stage Plain Stage 160×250mm S
Glass Insert S
Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120×78mm O
Auxiliary Stages70×180mm S
Terasaki Holder O
Φ38mm Petri Dish Holder O
Φ54mm Slide Glass Holder O
Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement
Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
S
Illumination Halogen Lamp 6V/ 30W S
Filter Diameter 45mm, Blue,Green and Ground Glass S
Photo Attachment O
Video Adapter Video Adapter with C Mount O
Note: "S" Standard Outfit, "O" Optional

Real photos show

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100 Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100 Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

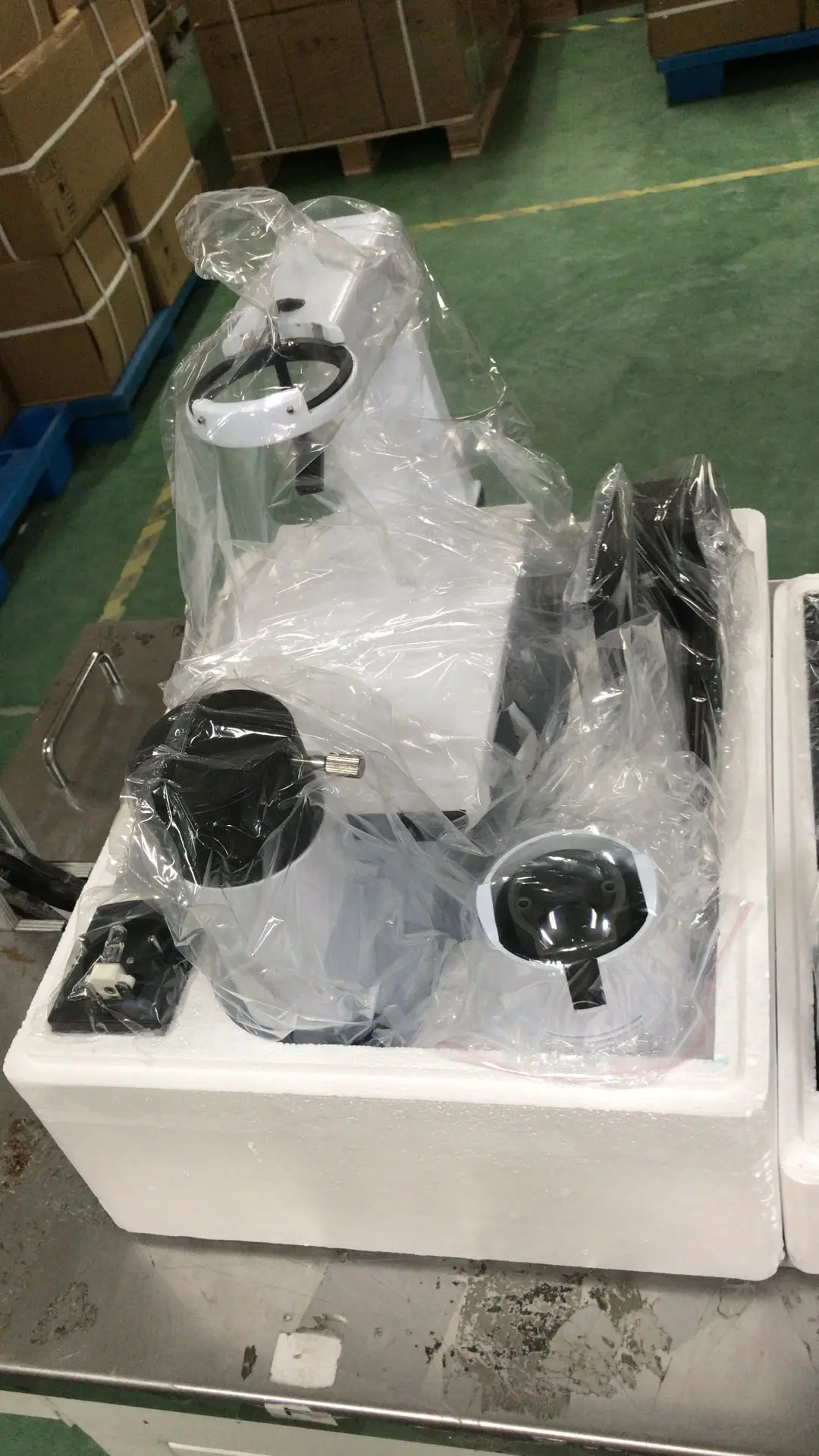

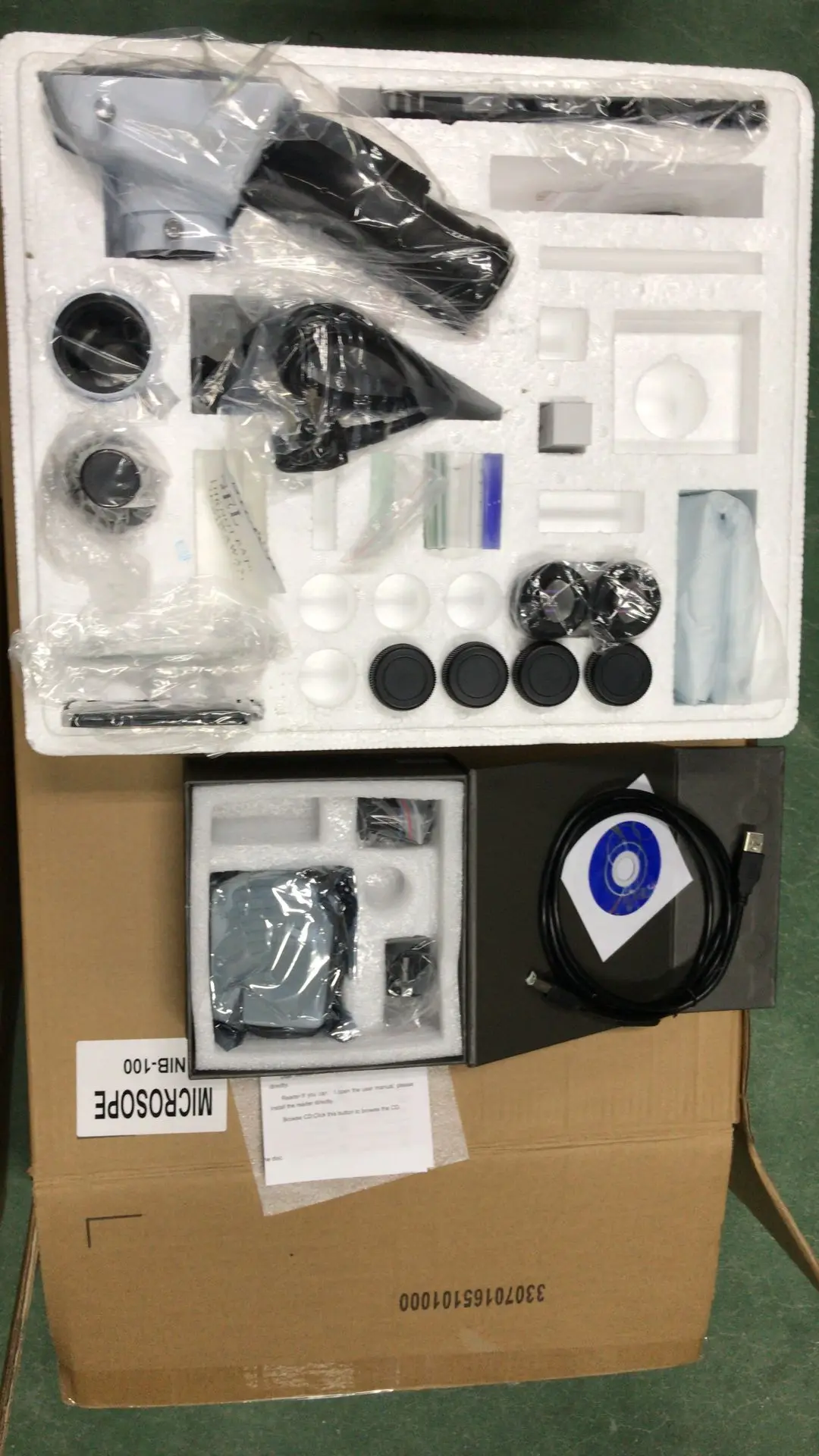

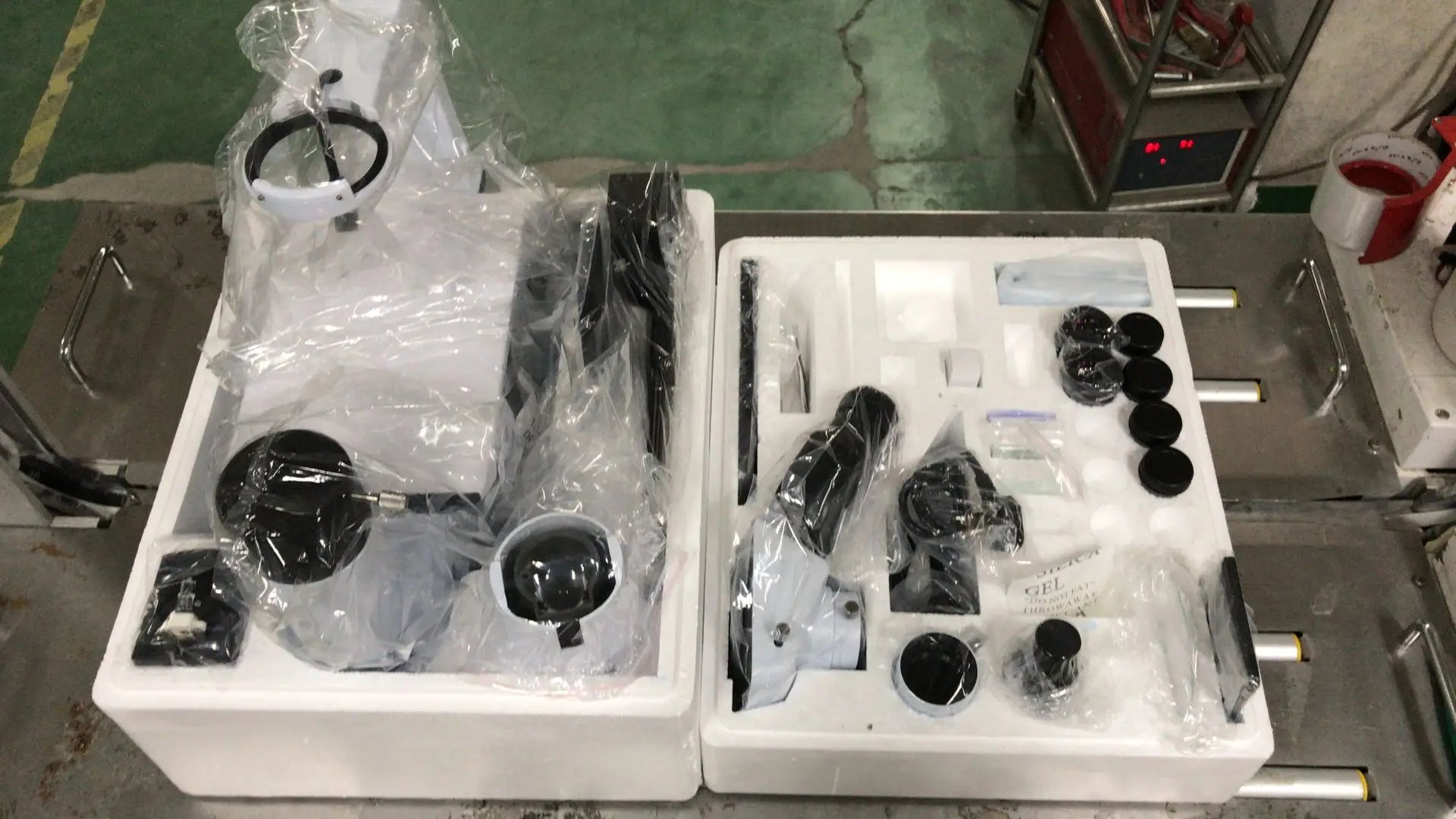

Packaging & Shipping

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

Company Information

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

Our Services

Nade Optical Instruments Inverted Fluorescent Biological Microscope NIB-100

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
