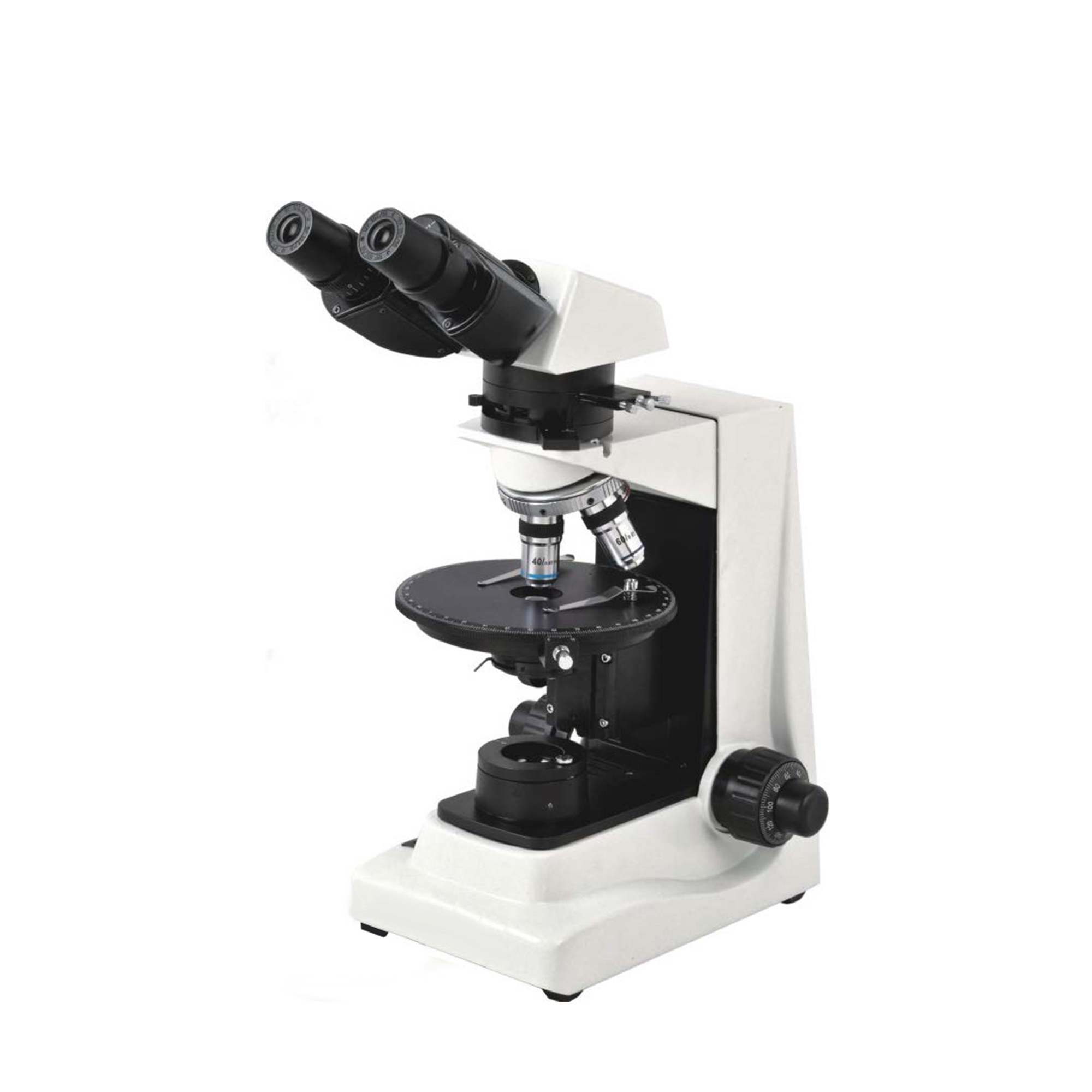

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

  • 1 year

  • other

  • Zhejiang, China

  • NADE

  • NP-400T

  • POLARIZING microscope

  • Trinocular

  • Nade Polarizing Trinocular digital Microscope NP-400T

  • Polarizing Trinocular Microscope

  • NP-400T

  • WF10X/18

  • Compensation free trinocular head inclined at 30°, 360° rotatable

  • Strain free achromatic objective 4x,10x,40x,60x

Product Description

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

Product Description

Description:

Polarizing microscope NP-400 can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.

Feature:

0°-90° Rotatable Analyzer and when out of optical path, Single Polarizing Observation is Available. With Bertrand, Interferogram of Specimen can be observed clearly.

λ Slip,1/4λ Slip and Quartz Wedge are Equipped

Revolving round stage Φ 145mm, 360°rotatable and graduated in 1° increments, minimum resolution 6,when using vernier scale

Polarizer can be Swung out of Optical Path.6V/20W Halogen Lamp Illumination, Brightness Adjustable

NP-400T

Viewing Head

Monocular head inclined at 45°, 360°rotatable

Compensation free binocular head inclined at 30°, 360° rotatable

Compensation free trinocular head inclined at 30°, 360° rotatable

s

Eyepiece

Eyepiece WF10× /18with scale of crosshair

s

Eyepiece WF10×/18

s

Objective

Strain free achromatic objective 4×,10×,40×,60×

s

Nosepiece

Backward quadruple nosepiece

s

Analyzer

Rotatable analyzer with gradation 0°-90°

s

Bertrand Lens

Bertrand lens, sliding in/out of optical path

s

Optical Compensator

λ Slip (first class red),1/4λ Slip quartz wedge

s

Revolving Round Stage

Diameter Φ145mm, 360° rotatable and graduated in 1°increments, minimum resolution 6‘ when using vernier scale, center adjustable

s

Condenser

Abbe condenser NA1.25 with iris diaphragm & filter

s

Focusing

Coaxial coarse & fine adjustment, range 28mm, fine division 0.002

s

Polarizer

Sliding in/out of optical path, located on the top of collector

s

Illumination

6V/ 20W Halogen lamp, brightness adjustable

s

Note : "s"Standard Outfit, "o" Optional

Packaging & Shipping

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

Company Information

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

Our Services

Nade Optical Instrument Polarizing Trinocular digital Microscope NP-400T

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
