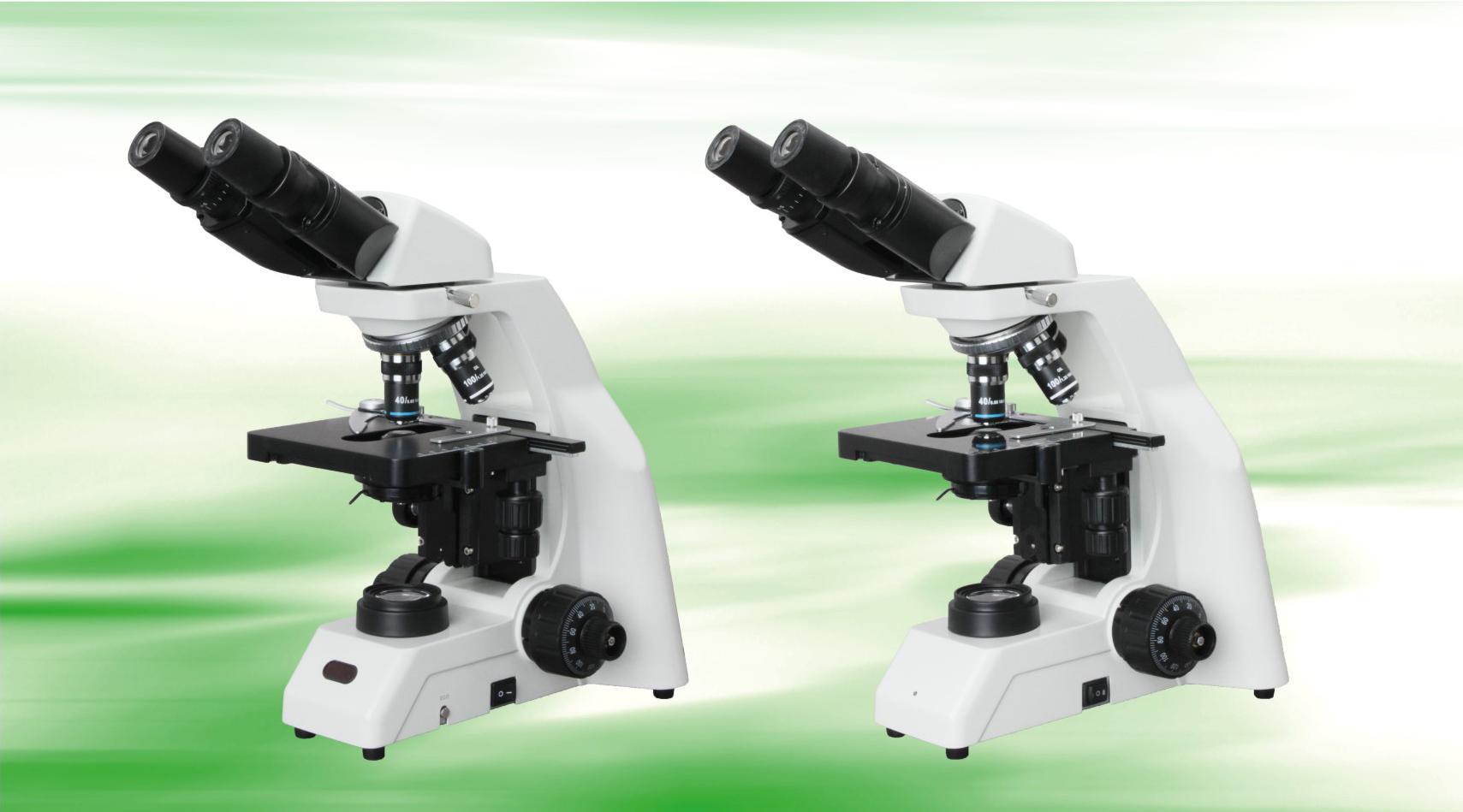

N-126
NADE
1
China
Product Description
Features:
● Sharp Image Display with Excellent Optical Function.
● Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology. ● Comfortable Operation with Ergonomic Design Principle.
Higher Contrast and Sharper Image with High Quality Objectives

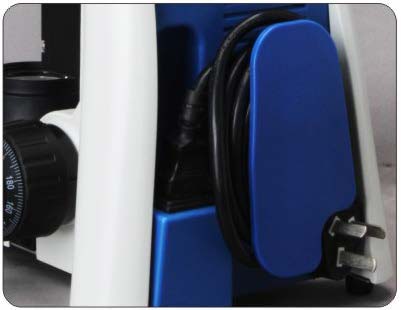

With cord rest on the back

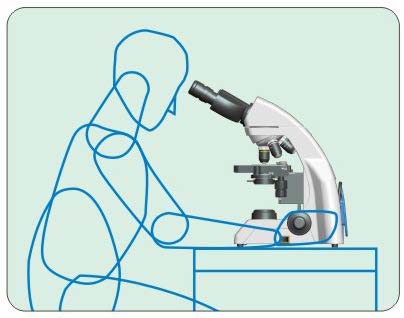

Comfortable Operation with Low Position Coarse and Fine Adjustment Knobs
Specifications
N-126 | ||
Optical System | Infinite Optical System | ● |
Finite Optical System | ||
Eyepiece | WF10×/18 | |
WF10×/20 | ● | |
Viewing Head | Monocular Head Inclined at 30° | |
Seidentopf Binocular Viewing Head Inclined at 30。，lnterpupillary47-78mm | ● | |
Seidentopf Trinocular Viewing Head Inclined at 30。， lnterpupillary 47-78mm | ○ | |
Digital Viewing Head Inclined at 30。， lnterpupillary 47-78mm, 5M pixels, Support Wifi | ○ | |
Digital Viewing head Inclined at 30。， lnterpupillary 47-78mm, 5M pixels, 8” LCD, Android OS | ○ | |
Achromatic Objective | 4× N. A=0.1 WD=18 | |
10× N. A=0.25 WD=7 | ||
40× N. A=0.65 WD=0.53 | ||
100× N. A=1.25 WD=0.13 | ||
Infinite Semi-Plan Achromatic Objective | 4× N. A=0.1 WD=16.8 | ● |
10× N. A=0.25 WD=5.8 | ● | |
40× N. A=0.65 WD=0.43 | ● | |
100× N. A=1.25 WD=0.13 | ● | |
Nose piece | Backward Quadruple Nosepiece | |
Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm | |
Rackless Double Layers Mechanical Stage 150X139mm, Moving Range 75X52mm | ● | |
Condenser | NA 1.25 Abbe Condenser | ● |
Dark Field Condenser (Dry, Oil) | ○ | |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | ● |
lllumination | Halogen Lamp 6V/20W | ○ |
S LED Illumination | ● | |
S-LED Illumination with Recharger | ○ | |
Kohler Illumination | ○ | |
ECO Function | ○ | |
Plane-concave Mirror | ○ | |
Fluorescent Attachment | Fluorescent Illumination, LED lamp | ○ |
Fluorescent Illumination, 100W HBO lamp | ○ | |
Polarization Set | ○ | |
Phase Contrast Kit | ○ |
Note: • Standard Outfit, ○ Optional
