1 year
other
Zhejiang, China
Nade
XC-100L/XC-50L/XC-40L/XC-20L
Biological Microscope
Monocular

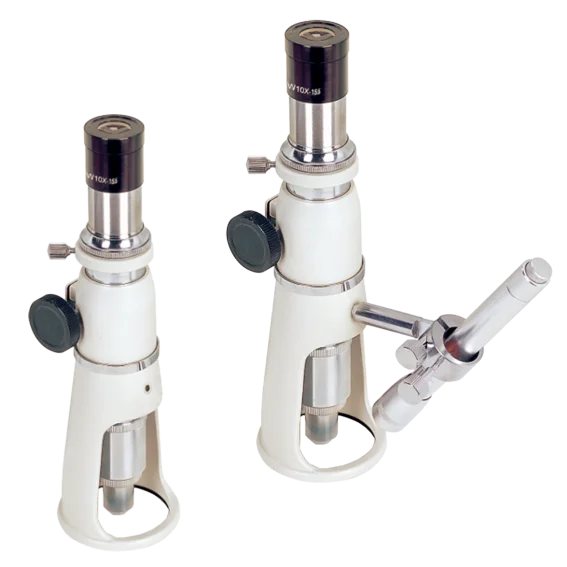

Portable Measuring Microscope
XC-100L/XC-50L/XC-40L/XC-20L
One head
160mm
WF10x
dia 18mm
0.1mm
30mm
dia 63mm
Pen light, No.2 battery
Product Description
| XC-100L | XC-50L | XC-40L | XC-20L | |
| Total Magnification | 100× | 50× | 40× | 20× |
| Mechanical Tube Length | 160mm | |||
| Eyepiece | 10× | |||
| Objective | 10× | 5× | 4× | 2× |
| Numerical Aperture | 0.25 | 0.12 | 0.1 | 0.05 |
| Diameter of Viewing field in Eyepiece | Φ18mm | |||
| Reticule of Eyepiece | 0.1mm | |||
| Minimum Readable Division | 0.01mm | 0.02mm | 0.025mm | 0.05mm |
| Working Distance | 6.93mm | 17.6mm | 18mm | 17.2mm |
| Focus Range | 30mm | |||
| Diameter of Bearing Plane | Φ63mm | |||
| Height of Microscope | 210mm | |||
| Mass of Microscope | 650g | |||
| Illumination | Pen light, No.2 battery | |||
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
