Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

  • 1 year
  • other
  • Zhejiang, China
  • Nade-Biological Microscope
  • N-117M Binocular Microscope
  • Biological Microscope
  • BINOCULAR
  • WF10X/18
  • Achromatic Objective 4x,10x,40x,100x
  • Biological Binocular Microscope
  • N-117M Binocular Microscope
  • Compensation Free Binocular Head, Inclined at 30°
  • Backward Quadruple Nosepiece
  • Abbe NA 1.20 with Iris Diaphram & Filter

Product Description

Nade Multifunction Biological Binocular Microscope N-117M

Product Description

Description

1.New machining facility and advanced alignment technology

2.Complete functions and outfit of binocular microscope

3.Comfortable operation with updated and ergonomic design

Feature

Comfortable observation with adjustable eyepoint height and interpupillary distance

Specification

N-117M
Viewing Head Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm Standard Outfit
Compensation Free Trinocular Head, Inclined at 30°, Interpupilary Distance 55-75mm Optional
Eyepiece WF10×/18 Standard Outfit
P16×/11
Objective Achromatic Objective 4×,10×,40×,100× Standard Outfit
Nosepiece Backward Quadruple Nosepiece Standard Outfit
Stage Double Layer Mechanical Stage 132×142mm/ 75×40mm Standard Outfit
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm Standard Outfit
Condenser Abbe NA 1.20 with Iris Diaphram & Filter Standard Outfit
Illumination LED 3W, Brightness Adjustable Standard Outfit
Halogen Lamp 6V/ 20W, Brightness Adjustable Standard Outfit
Phase Contrast Kit Optional
Dark Field Attachment Optional
Polarization Attachment Optional

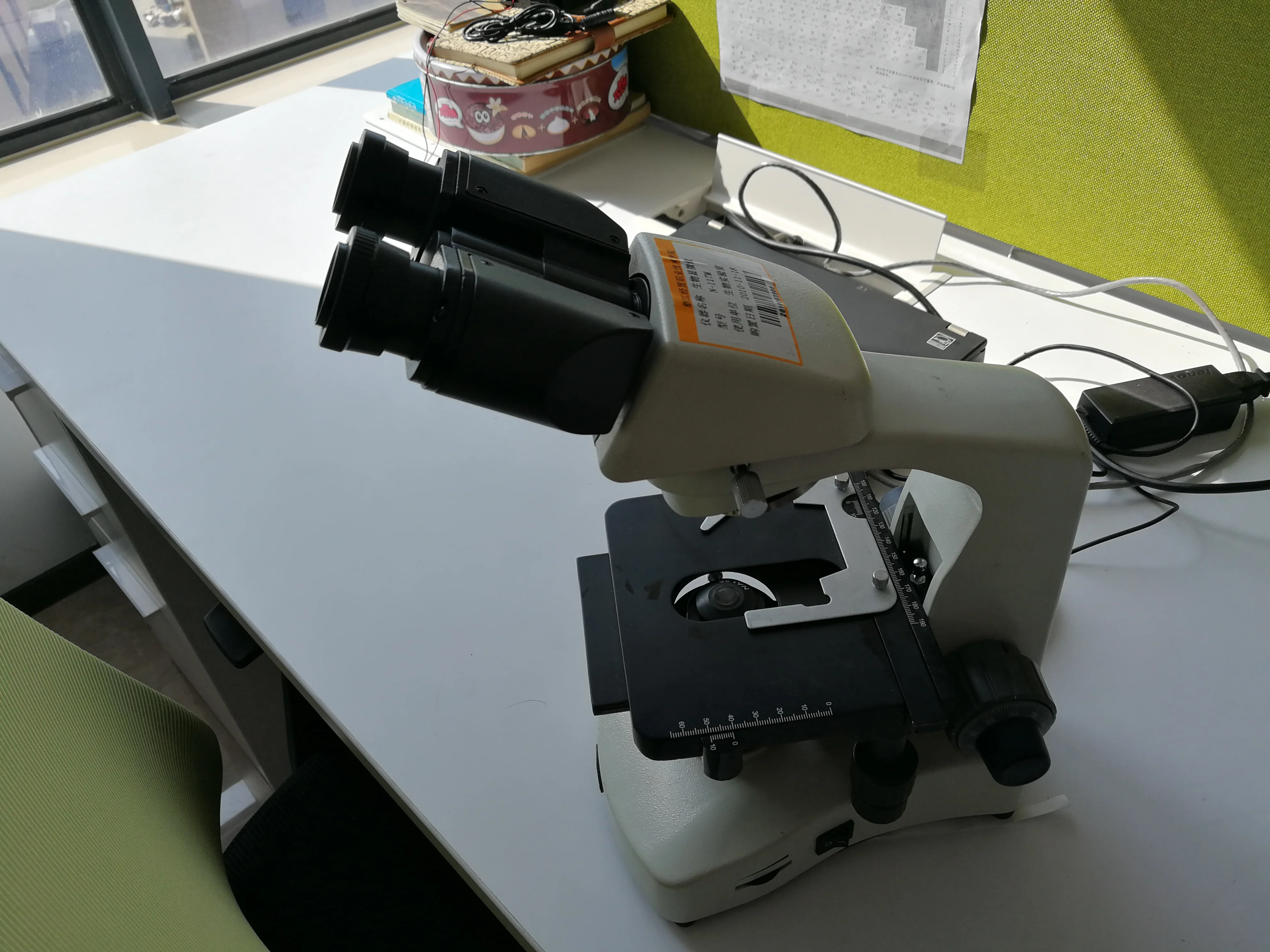

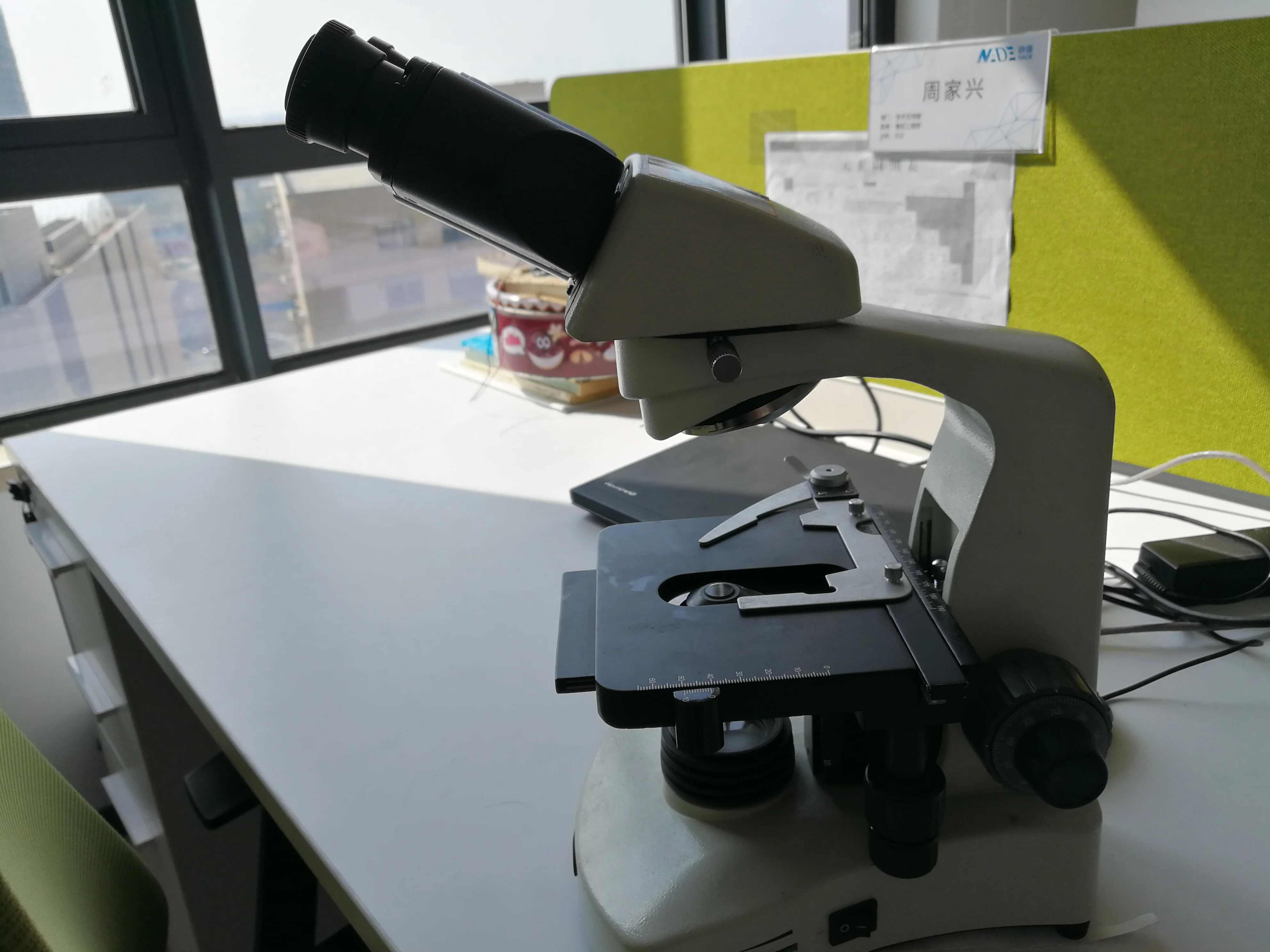

Real photos show

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

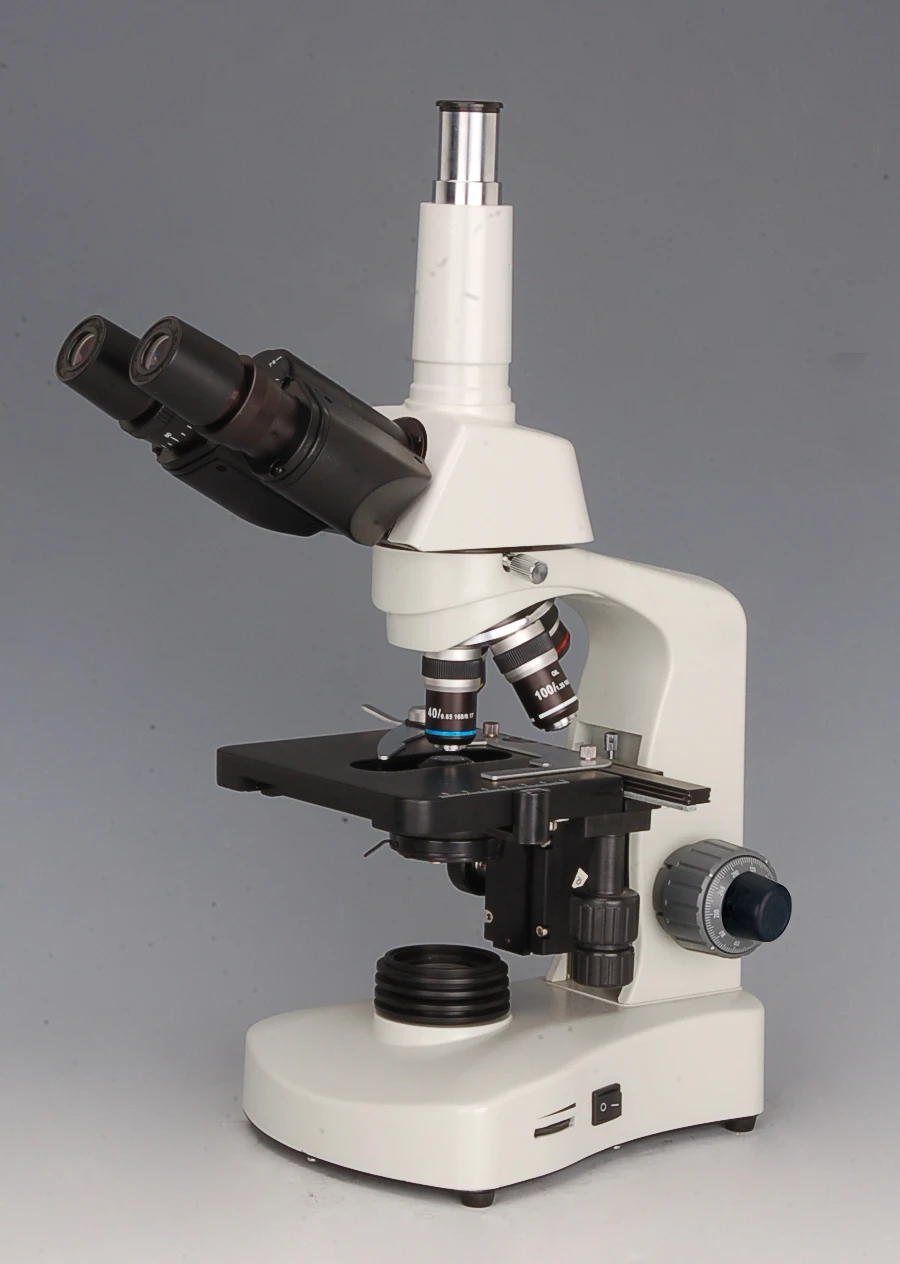

Trinocular Head

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

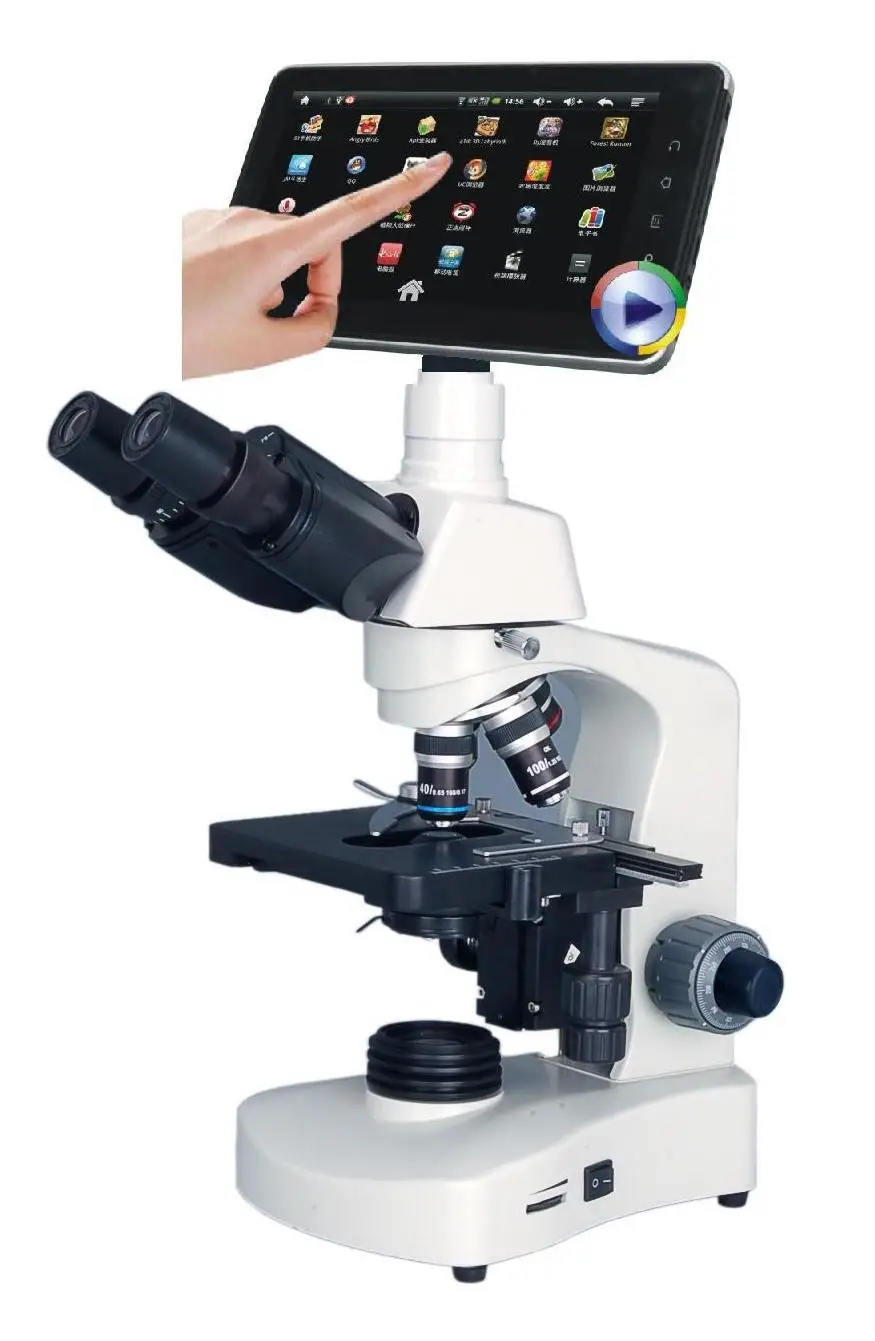

You can also select a screen for easy observation of objects,this is optional

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

Packaging & Shipping

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

Company Information

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

Our Services

Nade Optical Instrument Multifunction Biological Binocular Microscope N-117M

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
