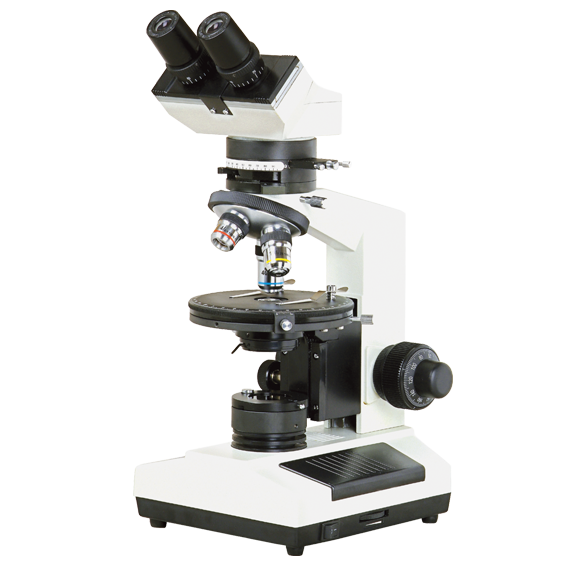

Nade Optical Instrument Lab Digital Polarizing Binocular Microscope NP-107B

  • 1 year

  • other

  • Zhejiang, China

  • NADE

  • NP-107B Binocular head

  • POLARIZING microscope

  • BINOCULAR

  • WF10X /18

  • Polarizing Binocular Microscope

  • NP-107B Binocular head

  • Sliding Binocular Head inclined at 45°

  • Strain free Achromatic Objective 4x,10x,40x

  • Toward Quadruple Nosepiece

Product Description

Nade Lab Digital Polarizing Binocular Microscope NP-107B Binocular head

Product Description

Description:

With the features of easy operation, complete functions and economy, it is ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and research.

Specification

Note: "s" Standard Outfit, "o"Optional

NP-107M

NP-107B

NP-107T

Viewing

Head

Monocular Head inclined at 45°

s

Sliding Binocular Head inclined at 45°

s

Sliding Trinocular Head inclined at 45°

s

Eyepiece

Eyepiece WF10×/ 18 with Scale of Crosshair

s

s

s

Eyepiece WF10×/ 18

s

s

Objective

Strain free Achromatic Objective 4×,10×,40×

s

s

s

Nosepiece

Toward Quadruple Nosepiece

s

s

s

Analyzer

Rotatable Analyzer with Graduation 0°-90°

s

s

s

Bertrand Lens

Bertrand Lens, Sliding in/ out of Optical Path

s

s

s

Optical Compensator

λ Slip (first class red)

s

s

s

1/4λ Slip

s

s

s

Quartz Wedge

s

s

s

Revolving Round Stage

Diameterφ135mm, 360°Rotatable and

Graduate in 1°Increments, Minimum Resolution

6′when using Venire Scale, Center Adjustable

s

s

s

Condenser

Abbe Condenser NA1.25 with lris Diaphragm and Filter

s

s

s

Focusing

Coaxial Coarse & Fine Adjustment , Range 28mm,

Fine Division 0.002

s

s

s

Polarizer

0°-90°Rotatable Located on the Top of collector

s

s

s

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable

s

s

s


Packaging & Shipping

Nade Optical Instrument Lab Digital Polarizing Binocular Microscope NP-107B

Nade Optical Instrument Lab Digital Polarizing Binocular Microscope NP-107B

Company Information

Nade Optical Instrument Lab Digital Polarizing Binocular Microscope NP-107B

Nade Optical Instrument Lab Digital Polarizing Binocular Microscope NP-107B

Our Services

Nade Optical Instrument Lab Digital Polarizing Binocular Microscope NP-107B

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
