Lab
None
None
New
Zhejiang, China
Nade
Nitrogen
400*200*400mm
1 Year, 1 year
Online support, Engineers available to service machinery overseas
High-accuracy
Ordinary Product
Not Available
Not Available
1 Year
Other
12
water bath
0-5L/min
Nitrogen concentration meter
HSC-12B
nitrogen concentration
Pressed gas Blowing Concentrator
Pressure Swing Adsorbtion (PSA)
Product Description

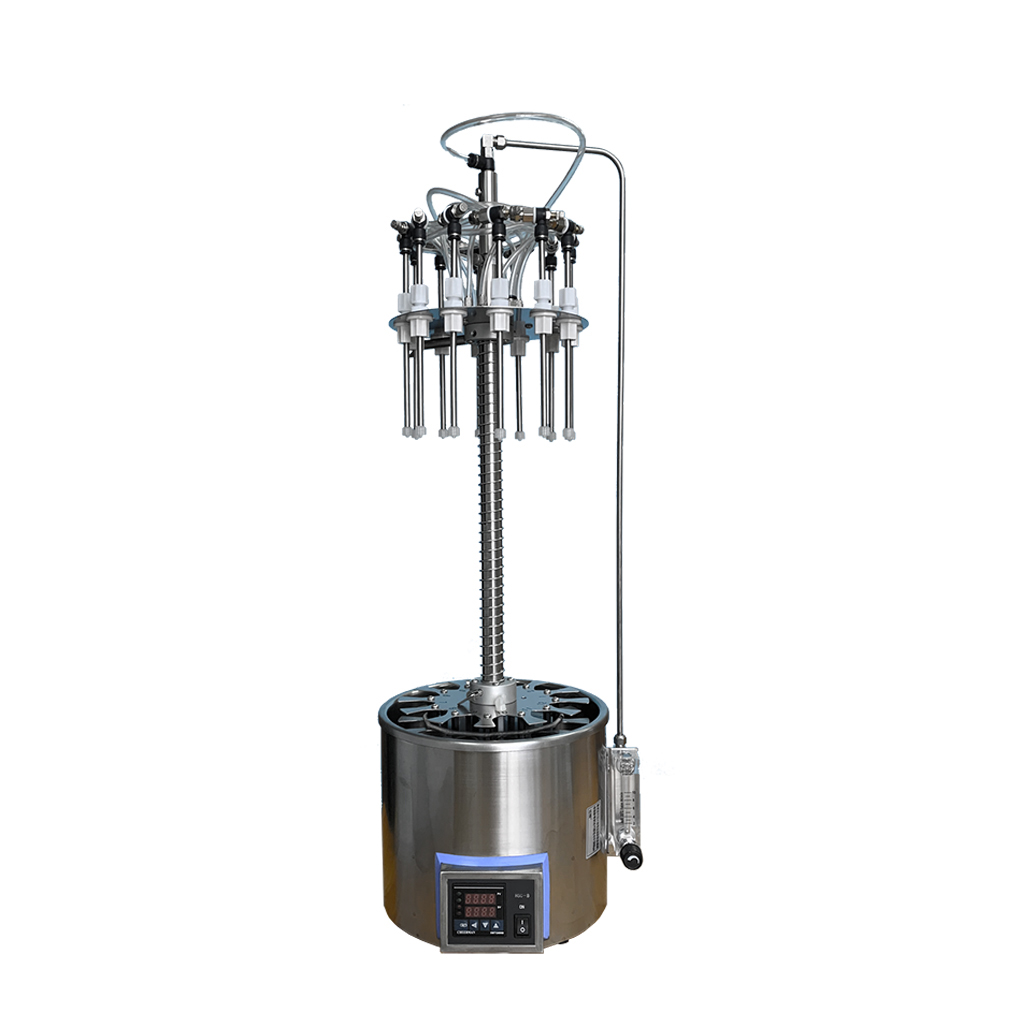

Nade Gas Generation Equipment Nitrogen Evaporator HSC-12B 12 samples Nitrogen Generator
The Nitrogen Evaporation adopts the blowing-trapping technology and uses inert gases such as nitrogen to handle the sample, and achieves the separating, purifying, and oxygen-free concentration. The instrument enjoys the time-saving, convenient, and accurate features. It is widely used in the pharmacy, medical test, pesticide residue detection, etc.
Feature:
1 The needles can be used respectively. The height of nitrogen distributor is adjustable according to the demand.
2 Digital temperature controller, Dual-digital display, PID technology, and Over-temperature alarm.
3 The parts which may contact with solvent are made of 316L stainless steel, aluminum, or the surface is plastic spraying. Long service life and easy to clean.
4 HSC-B is circular type. Nitrogen flow rate of each purge needle chould be seperately contorled by the independent valve. Thanks to the tension spring design, it accommodates sample in test tubes 10 to 29mm diameter. The sample rack is rotatable. Consumption could be controlled by the gas rotameter.
Specification:
| Model | samples | Blocks | Temp Accuracy | Temp control | Flow rate | Dimensions |
| HSC-12B | 12 | Water Bath | +/-1 °c | Digtal Display/ PID Adjustment/Over- Temp protection/ PTC Heating | 0-5L/min | 400*200*400mm |
| Notice: Temperature range: Heater block: Ambient----120 °c Water Bath: Ambient ----100 °c |
Accessories:
| Product | Specification | Notice |
| block | Φ15mm,T45mm | Round bottom |
| block | Φ15mm,T45mm | Round bottom |
| block | Φ15mm,T45mm | Round bottom |
| block | Φ15mm,T45mm | Round bottom with 6 holes |
| block | Φ15mm,T45mm | Round bottom with 2 Holes |
| Tube Support | Aperture-diameter options | Special block can be ordered in advanced |
| Needle | Length 158mm |
Water-bath Tube support Aperture-diameter options. Special Block can be ordered in advanced
Other Model:
Nitrogen Evaporator HSC-24B Nitrogen Evaporator HGC-12A Nitrogen Evaporator HGC-12D
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
