Hotels, Manufacturing Plant, Farms, Restaurant, Retail, Food Shop, Construction works , Advertising Company
None
None
New
Zhejiang, China
Nade
Nitrogen
200
220V
6kg
280x240x 500
ISO
1 Year
Video technical support, Online support, Engineers available to service machinery overseas
Easy to Operate
Ordinary Product
Not Available
Not Available
1 Year
Other
RT.+5~150°C
≤ ±0.5°C (RT+5°C~150°C)
Nitrogen generator
MD200-1
Lab Concentration
Pressed gas Blowing Concentrator
150mm
330ml/min/sample
200W
Product Description

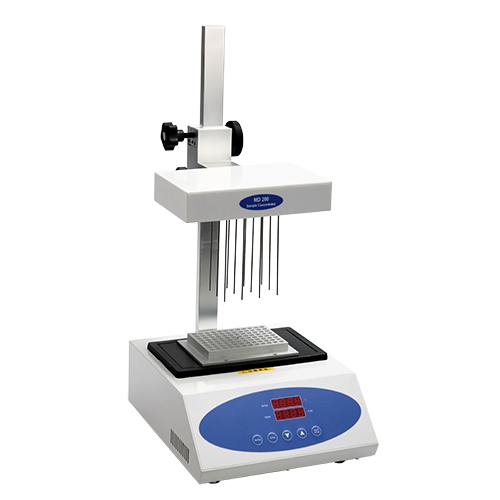

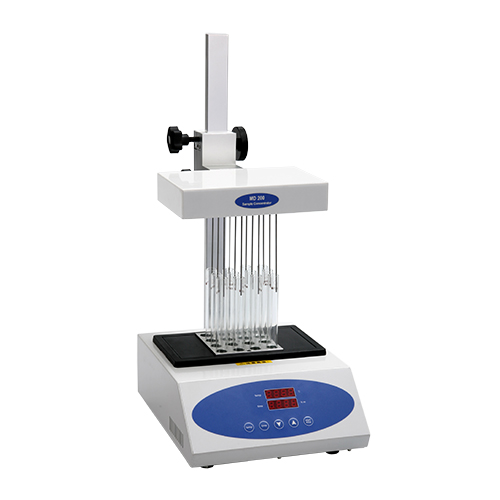

Nade Gas Generation Equipment Nitrogen Evaporator MD200-1
MD200-1 Sample Concentration consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in a bolck .
Feature
1. High precision and wide range of temperature control
2. Blowing a large number of samples at one time
3. Blowing each sample independently
4. Amount of airflow can be adjusted
5. Easy operation; safe and reliable to use
Specification
1.Temperature range: RT.+5~150°C
2.Temperature control discrepancy: ≤ ±0.5°C (RT+5°C~150°C)
≤ ±1°C (100°C ~ 150°C)
3. Low Nitrogen consumption of 330ml/min/sample
4. Time required for temperature to increase from 40°C to 150°C: ≤30m minutes
5 .Maximum input power: 200W
6. Temp. control discrepancy: ± 0.1°C
7. Dimensions: 280W x240D x 500H
8. Net weight: 6Kg
9. All units will fit and are recommended to be used in a bench-top.ventiated hood
10. Needles length: 150mm
11. Standard Blocks: See "Blocks for MD200
Blocks for MD200
| Type
| Parameter
| Capacity
| Dimension (mm)
|
| BK01 | 6 mm | 49 | 96 x 96 x 49 |
| BK02 | 7 mm | 49 | 96 x 96 x 49 |
| BK03 | 10 mm | 25 | 96 x 96 x 49 |
| BK04 | 12 mm | 25 | 96 x 96 x 49 |
| BK05 | 13 mm | 25 | 96 x 96 x 49 |
| BK06 | 15 mm | 12 | 96 x 96 x 49 |
| BK07 | 15 mm | 16 | 96 x 96 x 49 |
| BK08 | 16 mm | 12 | 96 x 96 x 49 |
| BK09 | 16 mm | 16 | 96 x 96 x 49 |
| BK10 | 19 mm | 12 | 96 x 96 x 49 |
| BK11 | 19 mm | 16 | 96 x 96 x 49 |
| BK12 | 20 mm | 9 | 96 x 96 x 49 |
| BK13 | 26 mm | 9 | 96 x 96 x 49 |
| BK14 | 28 mm | 4 | 96 x 96 x 49 |
| BK15 | 40 mm | 4 | 96 x 96 x 49 |
| BK16 | 0.5 ml Centrifuge tube | 49 | 96 x 96 x 49 |
| BK17 | 1.5 ml Centrifuge tube | 25 | 96 x 96 x 49 |
| BK18 | 2.0 ml Centrifuge tube | 25 | 96 x 96 x 49 |
More models pls click the picture for more details:

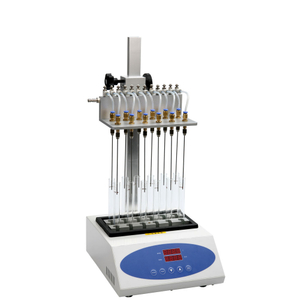

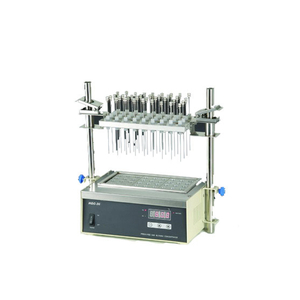

MD200-2 MD200-1A

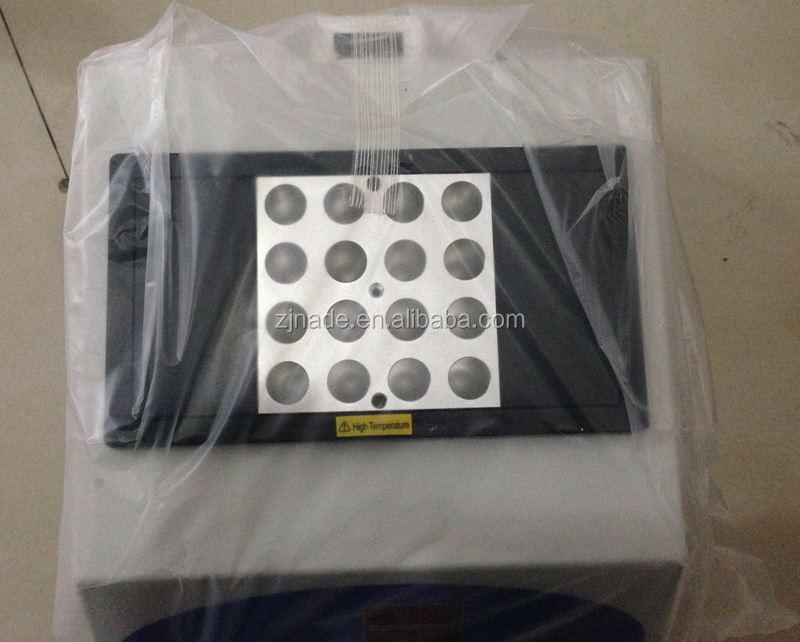

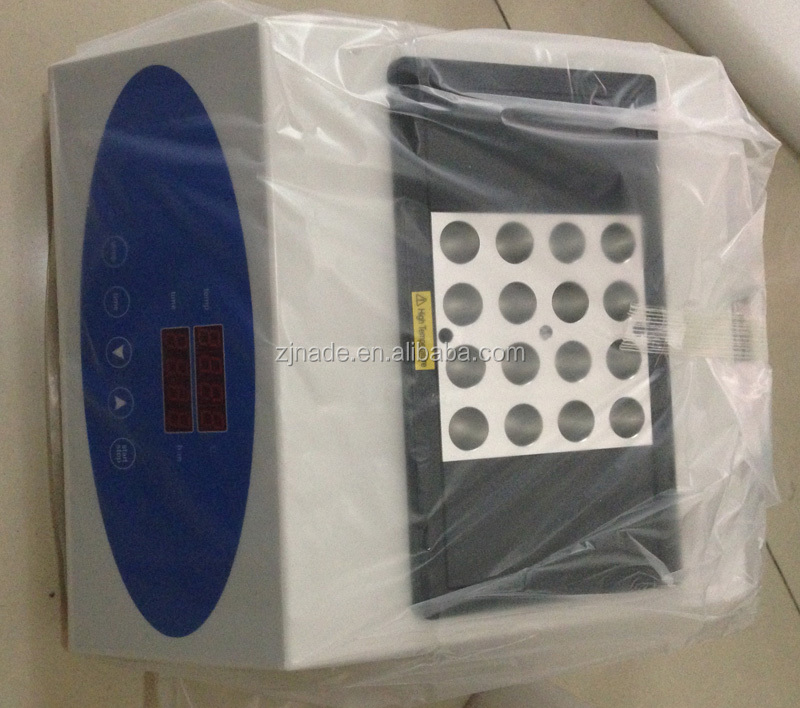

Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
