Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

  • Manufacturing Plant, Lab
  • None
  • None
  • New
  • Zhejiang, China
  • Nade
  • Nitrogen
  • 200
  • 220v
  • 5.8kgs
  • 400x200x400mm
  • ISO
  • 1 Year
  • Video technical support, Online support, Engineers available to service machinery overseas
  • Easy to Operate
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Other
  • 220v
  • 2
  • 24
  • +/-1 °c
  • 0-10L/min
  • Nitrogen Generator
  • HGC--24A
  • Lab nitrogen concentration
  • Digital

Product Description

Nade Gas Generation Equipment Nitrogen Evaporator HGC-24A Nitrogen Generator

Product Description

APPLICATION:

HGC series Pressure Blowing Concentrator use the inert gases to separate the samples and then get the purifying and oxygen-free concentration. This method saves time, easy to be operated, and then offers the exact result. It is widely used in pharmacy, medical test, pesticide residue test, etc.

Feature:

1.Healer-Block Type(HGC series) and water-Bath Type (HSC series) satisfy the different user' demands.

2.The needles can be used respectively. The height of nitrogen distributor is adjustable according to the demads.

3.Digital temperature controller, Dual-digital display. PID technology, and Over-temperature.

4.The parts which may contact with the solvent are made of 316 stainless steel, aluminum or the surface is plastic spraying. Long service life and easy to clean.

5.HGC series (standard:φ15mm,φ17mm or φ21mm,special model can be ordered in advanced from manufacturer.

Specification:

Model samples Blocks Temp Accuracy Temp control Flow rate Dimensions Power weight
HGC-24A 24 2 +/-1 °c

Digtal Display/

PID

Adjustment/Over-

Temp protection/

PTC Heating

0-10L/min

400x200

x400mm

200w 5.8kg
Notice: Temperature range: Heater block: Ambient----120 °c Water Bath: Ambient ----100 °c


Accessories:

Product Specification Notice
block Φ15mm,T45mm Round bottom
block Φ15mm,T45mm Round Bottom
block Φ15mm,T45mm Round Bottom
block Φ15mm,T45mm Round Bottom with 6 holes
block Φ15mm,T45mm

Round Bottom with

2 Holes

Tube Support

Aperture-diameter options

Special block can be ordered in advanced
Needle Length 158mm


Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

Water-bath Tube support Aperture-diameter options. Special Block can be ordered in advanced

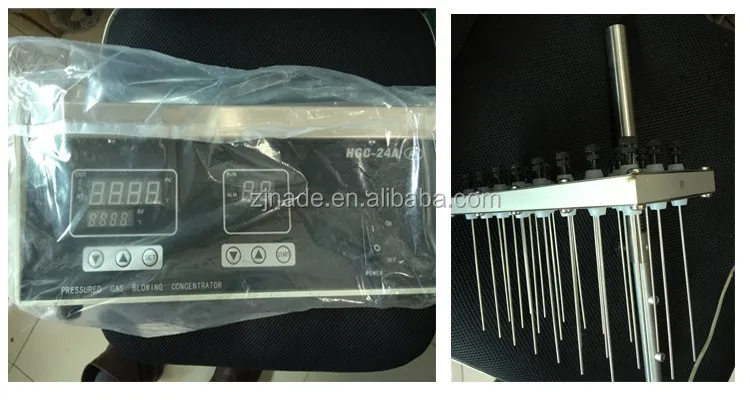

Real photos show

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

More models pls click the picture for more details:

HGC-12A HGC-12D

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

Packaging & Shipping

Our Packaging Details:

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

Our Shipping

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

Company Information

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

Our Services

Nade Gas Generation Equipment Nitrogen Evaporator HGC--24A Nitrogen Generator 24 samples

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
