Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

  • Other

  • Nade

  • MD200-1A

  • Zhejiang, China

  • +5~150°C

  • ± 0.1°C

  • 80mm

  • 330ml/min/sample

  • Sample concentrator

  • MD200-1A

  • Nitrogen Evaporator

  • Lab Research

  • Lab Usage

  • 200W

Product Description

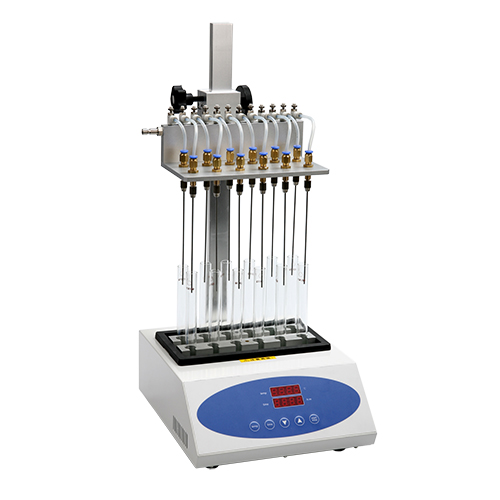

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Product Description

The instrument consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in a bolck. The gas at 5 to 10 psig passes through the distribution manifold. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the correct height. Needles or glass pipets blow gas onto the surface of the solution resulting in rapid evaporation of the solvent. All materials used are laboratory quality and can withstand contact with organic solvents. Acid resistant models are available for corrosive application

Nade Nitrogen Evaporator MD200-1A

Features
1. High precision and wide range of temp control
2. Blowing a large number of samples at one time
3. Blowing each sample independently
4. Amount of airflow can be adjusted
5. Easy operation; safe and reliable to use

Specification
1.Temp. range: room temp. +5~150°C

2.Temperature control discrepancy: ≤ ±0.5°C (RT+5°C~150°C)
≤±1°C (100°C ~ 150°C)

3. Low Nitrogen consumption of 330ml/min/sample
4. Time required for temperature to increase from 40°C to 150°C: ≤30m minutes

5. Maximum input power: 200W
6. Temp. control discrepancy: ± 0.1
°C
7. Dimensions: 280W x240D x 500H
8. Net weight: 6Kg
9. All units will fit and are recommended to be used in a bench-top.
ventiated hood
10. Needles length: 80mm
11. Standard Blocks: See "
Blocks for MD200-1A"

Blocks for MD200-1A,chooose one

Type

Parameter

Capacity

Dimension (mm)

BK19

0.2ml

96

78 x 114 x 26

BK20

Plate(no holes)

microplate

81 x 123 x 19

More models pls click the picture for more details

MD200-1 MD200-2 KD200

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Real photos show

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Packaging & Shipping

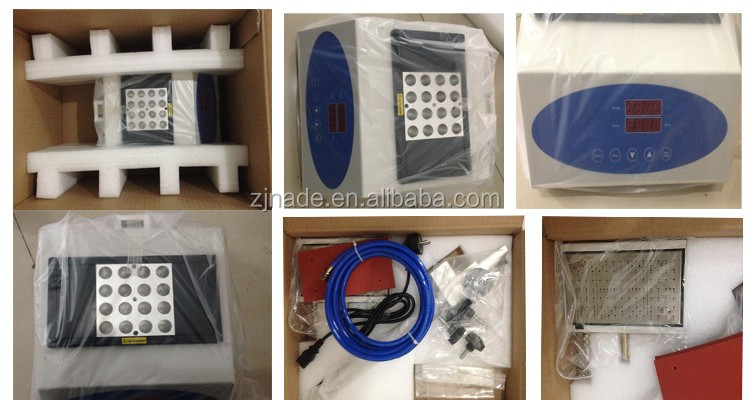

Our Packaging Details:

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Our Shipping

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Our Services

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Company Information

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

Nade Lab Pre-Sample Instrument Nitrogen Evaporator MD200-1A

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.

Please send your request details to us by clicking "send" at the bottom!
