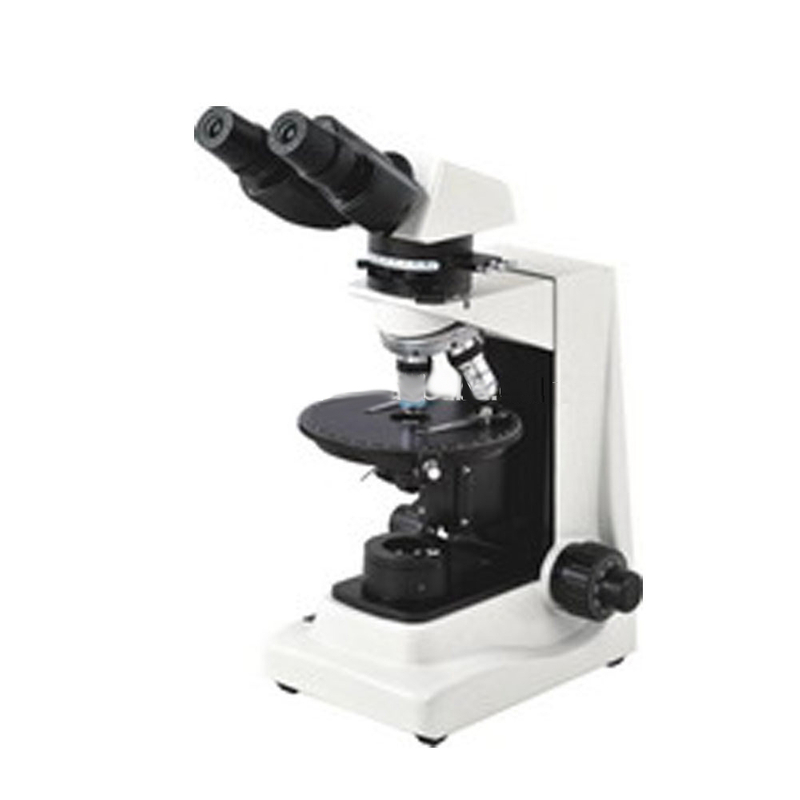

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

  • 1 year

  • other

  • Zhejiang, China

  • Nade-Laboratory Biological Microscope

  • NPL-400B Binocular Head

  • Biological Microscope

  • BINOCULAR

  • Laboratory Biological Microscope

  • NPL-400B Binocular Head

  • Compensation Free Binocular Head at 30°, 360° Rotatable

  • Eyepiece WF10x/18 with Scale of Crosshair

  • Backward Quadruple Nosepiece, Center Adjustable

Product Description

Product Description

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

With the features of streamline and stable frame, easy operation and complete functions, polarizing microscope NPL-400 is the best choice for user to observe mineral crystal figure, color and interference color and also exactly identify the optical performance of mineral and other crystal specimen.

Feature:

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

1. 0°-90° Rotatable Analyzer and when out of optical path, Single Polarizing Observation is Available. With Bertrand, Interferogram of Specimen can be observed clearly. λ Slip,1/4λ Slip and Quartz Wedge are Equipped

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

2. Quadruple Nosepiece, Center Adjustable

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

3. Polarizer can be Swung out of Optical Path.6V/ 20W Halogen Lamp Illumination, Brightness Adjustable

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

4. Trinocular Observing is Available

Specification:

NPL-400B

NPL-400T

Viewing Head

Compensation Free Binocular Head at 30°, 360° Rotatable

S

Compensation Free Trinocular Head at 30°, 360° Rotatable

S

Eyepiece

Eyepiece WF10×/ 18 with Scale of Crosshair

S

S

Eyepiece WF10×/ 18

S

S

Objective

Strain free Achromatic Objective 4×,10×,
40×,60×

S

S

Nosepiece

Backward Quadruple Nosepiece, Center Adjustable

S

S

Analyzer

Rotatable Analyzer with Gradation 0°-90°

S

S

Bertrand Lens

Bertrand Lens, Sliding in/out of Optical Path

S

S

Optical Compensator

λ Slip(first class red), 1/ 4λ Slip, Quartz Wedge

s

S

Revolving Round Stage

Diameter Φ160mm, Graduated in 1°Increments, Minimum Resolution 6’ when using Vernier Scale

S

S

Condenser

NA1.25 Abbe Condenser with Iris Diaphragm & Filter

S

S

Focusing

Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm

S

S

Polarizer

Sliding in/ out of Optical Path, Located on the Top of Collector

S

S

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable

S

S


Note: "S" Standard Outfit, "O"Optional

Packaging & Shipping

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

Company Information

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

Our Services

Nade Lab Microscope Polarizing Binocular Head Biological Microscope NPL-400B

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
