Nade-Biological Microscope
N-180M Binocular Head
Biological Microscope
BINOCULAR
Wide Field Eyepiece EW10X/20
Biological Binocular Microscope
N-180M Binocular Head
Binocular
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable
Semi-plan Achromatic Objective 4x, 10x, 40x, 100x
Product Description

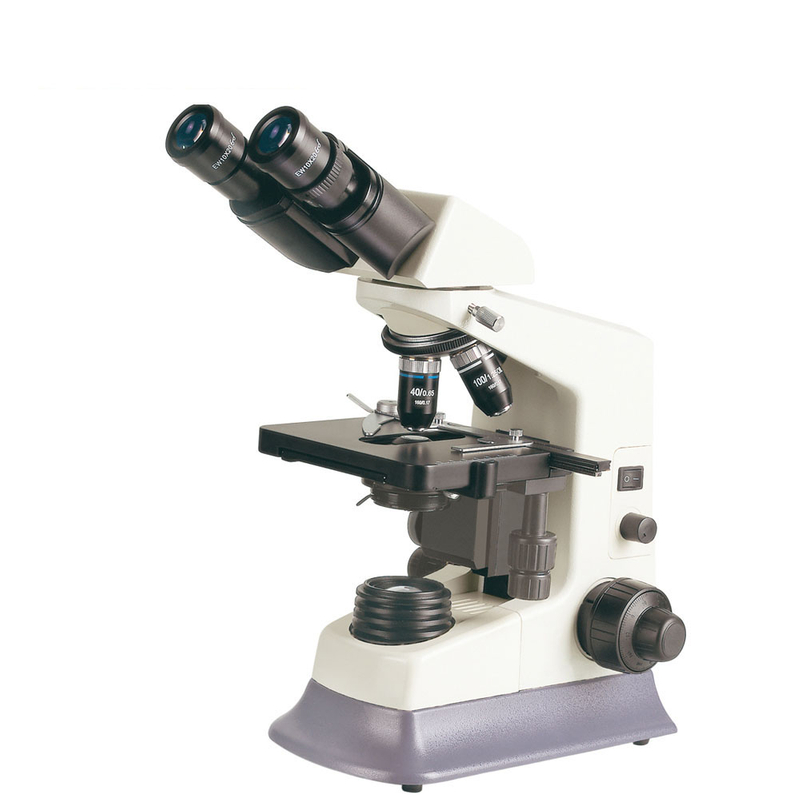

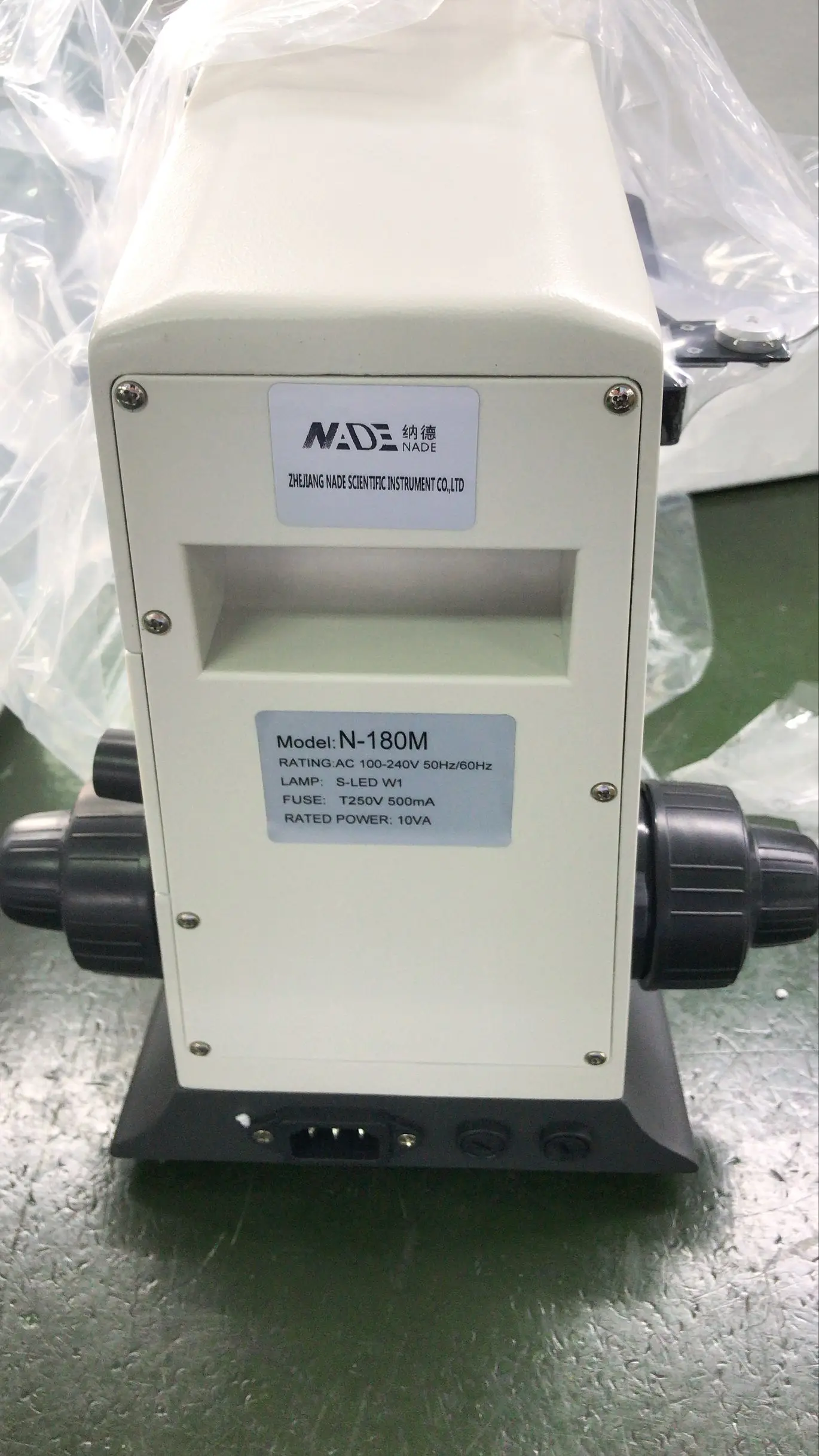

Nade Lab Microscope N-180M Biological Binocular Microscope Binocular Head
Description
1.Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.
2.It is an ideal instrument for biology field, bacteriology field, immunology field, pharmacology field and so on.
Specification
| Viewing Head | Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable | S |
| Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable | O | |
| Eyepiece | Wide Field Eyepiece EW10×/ 20 | S |
| Wide Field Eyepiece WF16×/ 11 | O | |
| Objective | Semi-plan Achromatic Objective 4×, 10×, 40×, 100× | S |
| Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× | O | |
| Nosepiece | Backward Quadruple Nosepiece | S |
| Quintuple Nosepiece | O | |
| Stage | Double Layers Mechanical Stage 140×140mm/ 75×50mm | S |
| Condenser | NA 1.25 Abbe Condenser with lris Diaphragm and Filter | S |
| Illumination | Halogen Lamp 6V/ 20W, Brightness Adjustable | S |
| Kohler Illumination | O | |
| Photo Attachment | O | |
| Video Attachment | C Mount 1× & 0.5× | O |
| Filter | Blue Filter | S |
| Green Filter | S | |
| Polarization Set | Simple Polarization Set | O |
| Phase Contrast Kit | Simple Phase Contrast Kit | O |
| Sliding Phase Contrast Kit | O | |
| Turret Phase Contrast Kit | O | |
| Dark Field Attachment | Dark Field Condenser (Dry) NA 0.9 | O |
| Dark Field Condenser (Oil) NA 1.25-1.36 | O | |
| Epi-fluorescent Attachment | O | |
| Pointer | Green LED Pointer System | O |
O means optional, S means Standard.
Feature:
Convenient and Comfortable Observing with High Point and Wide Field Eyepiece EW10×/ 20
Sharp and Bright Image with Semi-plan Objectives
Replacement of bulbs become easier and more secure, just take away the Collector without overturn the microscope
Convenient Handling with Special Design Low Position Coarse & Fine Adjustment Suitable for Different Region Power Supply with 100V-240V Multi-input Rating
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
