Product Description

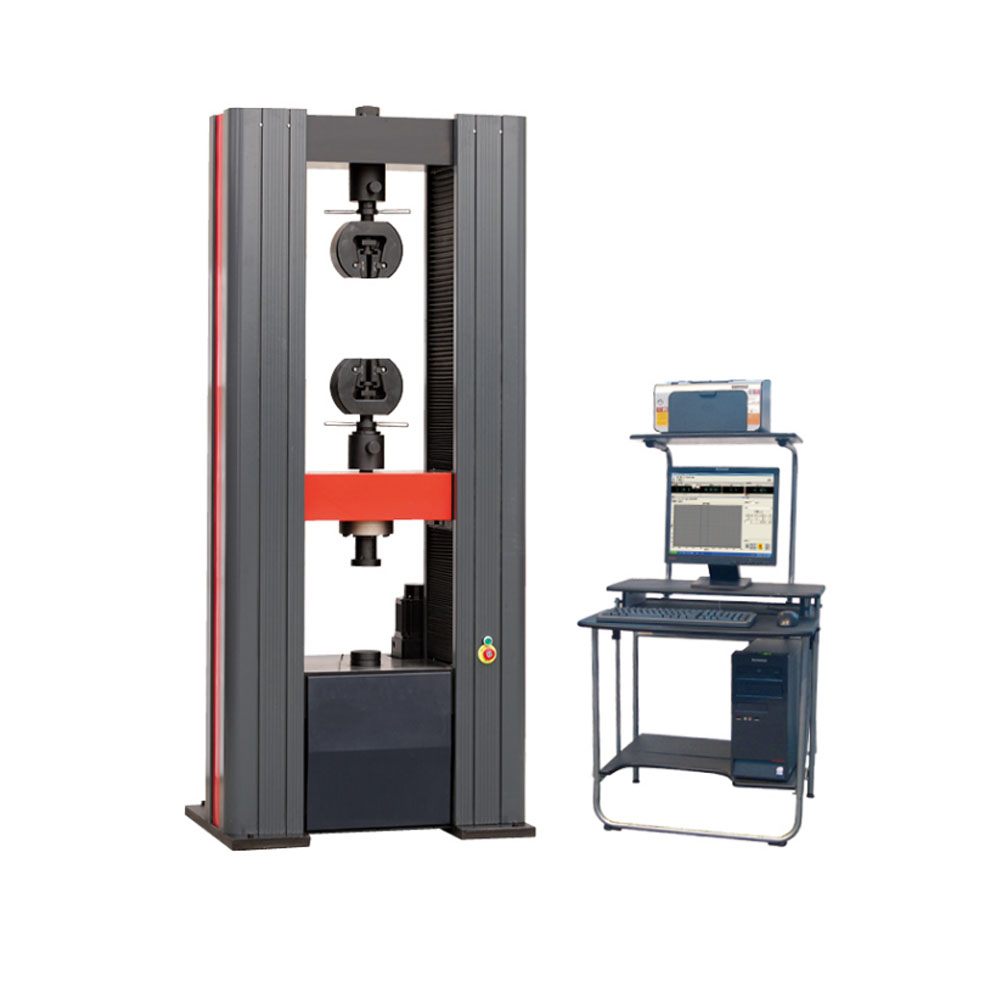

NADE WDW-10E 10kN Computer Control Electronic Universal Tensile Testing Machine For Small Load Metal Material Mechanical Test
Application:
Suitable for non-metallic material such as rubber,plastic,ribbon,wire,rope,
waterproofing membrane,wood-based panel,and small size,small load metal material mechanical test.The relative fixture can be complete tensile, compression,bending,shearing,tearing,peeling,static stiffness,ring rigidity,
extraction force and other performance tests.They may add test methods or rules according to customers requirement.They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Features:
1. crossbeam and worktable form a high rigidity frame.High precision ball driver under the servo motor control to adjust the space and test loading.
2. Adopt servo motor to drive the ball screw and ball screw drive the crossbeam up and down moving.This test equipment not only can finish the low-speed brittle materials test such as glass and carbon rods but also can finish super-deformation plastic material test.
3. Simple connection.Has variety of clamping way and thousands of test fixtures.Clamping way”leveraged type;screw tight type;hydraulic type;pneumatic type;eccentric wheel type;latch type;self-locking type;compression type and so on.
4. Large test space,convent to add other test decive such as environment box,high temperature furnace and large deformation extensometer.Also can configure miltiple load cell to cover more range.
5. No need to add hydraulic oil,environmental protection and pollution-free green equipment.
Technical Specifications
Different test samples require different fixtures,if you want to learn more information,pls contact us.
| Model | WDS-10E WDW-10E | WDS-20EWDW-20E |
| Max. Test force | 10kN | 20kN |
| Testing accuracy | 0.5% FS | |
| Accuracy of indication | ≤0.5% | |
| Measurement range | 1%-100%FS | |
| Extensometer testing range | 1%--100%FS | |
| Accuracy of extensometer | ≤0.5% | |
| Force control rate range | 0.005-0.5FS/S | |
| Force control rate accuracy | Rate<0.05%FS/s,≤±1%, Rate≥0.05%FS/s,≤±0.5%; | |
| Strain control rate range | 0.005-0.5FS/S | |
| Strain control rate accuracy | Rate<0.05%FS/s,≤±1%, Rate≥0.05%FS/s,≤±0.5%; | |
| Displacement Accuracy | ≤0.5% | |
| Moving range of Crossbeam | 800mm | |
| Speed of Crossbeam | 0.001~500 | |
| Effective test space | 370 | |
| Max.stretching space | 800mm | |
| Max.compression space | 1100mm | |
| Clamping range of circular specimens | Φ4~Φ20mm | |
| Clamping thickness of plate specimens | 0~20mm | |
Standard accessories:
Extensometer Pneumatic non-metal clamp (non-standard)
Other model:WDW-5E/WDW-20E/WDW-50E/WDW-100E/WDW-200E/WDW-300E……
Main test force:5kn,20kn,50kn,100kn,200kn,300kn……
