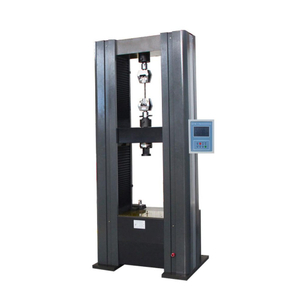

WDW-100M Electronic Universal Testing Machine

Max. Test force: 100kN
Testing accuracy: 0.5% FS
Accuracy of indication: ≤0.5%
Display: Computer display
Availability:
  • WDW-100M
  • NADE
  • 1
  • 1 year
  • China

Product Description

Application:

Suitable for non-metallic material such as rubber,plastic,ribbon,wire,rope,

waterproofing membrane,wood-based panel,and small size,small load metal material mechanical test.The relative fixture can be complete tensile, compression,bending,shearing,tearing,peeling,static stiffness,ring rigidity,

extraction force and other performance tests.They may add test methods or rules according to customers requirement.They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

WDW

Features:

1. crossbeam and worktable form a high rigidity frame.High precision ball driver under the servo motor control to adjust the space and test loading.

2. Adopt servo motor to drive the ball screw and ball screw drive the crossbeam up and down moving.This test equipment not only can finish the low-speed brittle materials test such as glass and carbon rods but also can finish super-deformation plastic material test.

3. Simple connection.Has variety of clamping way and thousands of test fixtures.Clamping wayleveraged type;screw tight type;hydraulic type;pneumatic type;eccentric wheel type;latch type;self-locking type;compression type and so on.

4. Large test space,convent to add other test decive such as environment box,high temperature furnace and large deformation extensometer.Also can configure miltiple load cell to cover more range.

5. No need to add hydraulic oil,environmental protection and pollution-free green equipment.


Specification

Model

WDS-10M
WDW-10M

WDS-20M

WDW-20M

WDS-50M

WDW-50M

WDS-100M
WDW-100M

WDS-200M
WDW200M

WDS-300M
WDW-300M

Max. Test force

10kN

20kN

50kN

100kN

200kN

300kN

Testing accuracy

0.5% FS

0.5% FS

0.5% FS

Accuracy of indication

≤0.5

≤0.5

≤0.5

Measurement range

1%-100FS

1%-100FS

1%-100FS

Extensometer testing range

1%--100%FS

1%--100%FS

1%--100%FS

Accuracy of extensometer

≤0.5

≤0.5

≤0.5

Force control rate range

0.005-0.5FS/S

0.005-0.5FS/S

0.005-0.5FS/S

Force control rate accuracy

Rate0.05%FS/s,≤±1%,

Rate≥0.05%FS/s,≤±0.5%

Strain control rate range

0.005-0.5FS/S

0.005-0.5FS/S

0.005-0.5FS/S

Strain control rate accuracy

Rate0.05%FS/s,≤±1%,

Rate≥0.05%FS/s,≤±0.5%

Displacement Accuracy

≤0.5

Moving range of Crossbeam

800mm

900mm

900mm

Speed of Crossbeam

0.001500

0.001500

0.001200

Effective test space

370

475

500

Max.stretching space

800mm

700mm

600mm

Max.compression space

1100mm

1100mm

1000mm

Clamping range of circular specimens

Φ4Φ20mm

Φ4Φ20mm

Φ4Φ26mm

Clamping thickness of plate specimens

020mm

020mm

0~26mm

Note: WDS Series is digital display, WDW Series is computer screen display

Different test samples require different fixtures,if you want to learn more information,pls contact us.





Standard accessories

Nade Digital Display Electronic Universal Testing Machine WDS-100E 100KN material tensile tester

Extensometer  Pneumatic non-metal clamp

Extensometer
      Pneumatic non-metal clamp (non-standard)
