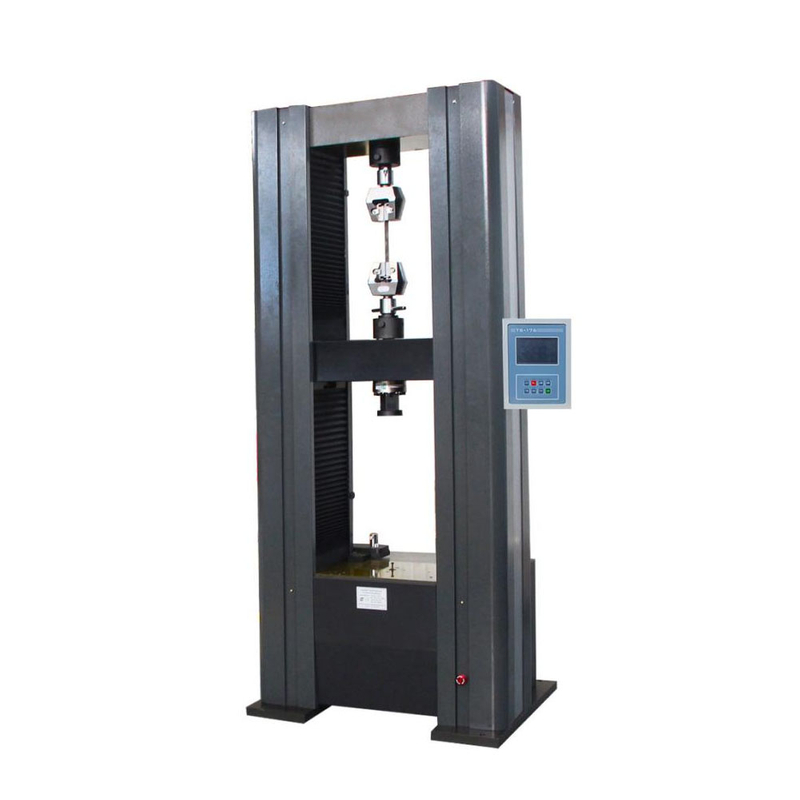

WDS-200M Electronic Universal Testing Machine

Max. Test force: 200kN
Testing accuracy: 0.5% FS
Accuracy of indication: ≤0.5%
Measurement range: 1%-100%FS
Availability:
  • WDS-200M
  • NADE
  • 1
  • 1 year
  • China

Product Description

Application:

Suitable for non-metallic material such as rubber,plastic,ribbon,wire,rope,

waterproofing membrane,wood-based panel,and small size,small load metal material mechanical test.The relative fixture can be complete tensile, compression,bending,shearing,tearing,peeling,static stiffness,ring rigidity,

extraction force and other performance tests.They may add test methods or rules according to customers requirement.They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

Nade Waterproofing Membrane Tensile Tearing Strength Testing Machine WDS-200E 200KN Electronic Universal Testing Machine

Features:

1. crossbeam and worktable form a high rigidity frame. High precision ball driver under the servo motor control to adjust the space and test loading.

2. Adopt servo motor to drive the ball screw and ball screw drive the crossbeam up and down moving.This test equipment not only can finish the low-speed brittle materials test such as glass and carbon rods but also can finish super-deformation plastic material test.

3. Simple connection.Has variety of clamping way and thousands of test fixtures.Clamping wayleveraged type;screw tight type;hydraulic type;pneumatic type;eccentric wheel type;latch type;self-locking type;compression type and so on.

4. Large test space,convent to add other test decive such as environment box,high temperature furnace and large deformation extensometer.Also can configure miltiple load cell to cover more range.

5. No need to add hydraulic oil,environmental protection and pollution-free green equipment.


Specification

Different test samples require different fixtures,if you want to learn more information,pls contact us.

Model

WDS-200M

WDW-200M

WDS-300M

WDW-300M

Max. Test force

200kN

300kN

Testing

accuracy

0.5% FS

Accuracy of indication

≤0.5%

Measurement

range

1%--100%FS

Extensometer testing range

1%--100%FS

Accuracy of extensometer

≤0.5%

Force control rate range

0.005-0.5FS/S

Force control rate accuracy

Rate<0.05%FS/s,±1%,

Rate≥0.05%FS/s,±0.5%;

Strain control rate range

0.005-0.5FS/S

Strain control rate accuracy

Rate<0.05%FS/s,≤±1%,

Rate≥0.05%FS/s,≤±0.5%;

Displacement Accuracy

≤0.5%

Moving range of Crossbeam

900mm

Speed of Crossbeam

0.001~200

Effective test space

500

Max.stretching space

600mm

Max.compression space

1000mm

Clamping range of circular specimens

Φ4~Φ26mm

Clamping thickness of plate specimens

0-26mm


Standard accessories
