WDW-5M Universal Testing Machine

Max. test force: 5 KN
Accuracy of indication: ±1%(Special requirements ±0.5%)
Accuracy of displacement: ±1%(Special requirements ±0.5%)
Crosshead displacement resolution: 0.001mm
Availability:
  • WDW-5M
  • NADE
  • 1
  • 1 year
  • China

Product Description

Brief Introduction:

WDW-5 Electronic Universal Testing Machine with special tensile fixtures can do tensile strength test of rope . It is computer-controlled precision testing machine, Computer automatically control test program , display test date and analyze test results . The capacity is 5kn , so static tensile load can reach to 5 kn.


Application:

Suitable for non-metallic material such as rubber,plastic,ribbon,wire,rope,

waterproofing membrane,wood-based panel,and small size,small load metal material mechanical test.The relative fixture can be complete tensile, compression,bending,shearing,tearing,peeling,static stiffness,ring rigidity,

extraction force and other performance tests.They may add test methods or rules according to customers requirement.They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.


Specification


Model

WDW-5M

Max. test force

5 KN

Accuracy of  indication

±1%(Special requirements ±0.5%)

Measurement range of test force

1%-100% FS(Special requirements can reach

0.4%-100%FS)

Accuracy of displacement

±1%(Special requirements ±0.5%)

Crosshead displacement resolution

0.001mm

Adjust speed range

0.005-500mm/min

Tensile test space

More than 550 mm

Compression Test Space

More than 600mm

Distance between coloums

400mm

Force value loading speed

0.1-100 mpa/s

Force model

load cell

Deformation measurement way

cable encoder,resistance extensometer

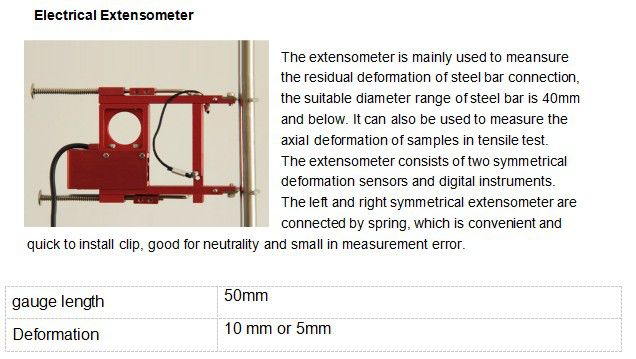

Large deformation extensometer

Voltage

220 v(110 v for choice)



Soft ware:

NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine

1. Language selection: English and other languages interface freely switch operation,
2. Basic functions: calculate and list data graphics: the basic parameters of a material testing machine: (1).yield point(2).0.2% off set.(3). Yield strength(4). Tensile strength(5). Elongation(6). Energy absorption(7). Maximum(8). Rupture values(9). Deformation amount (10). Averages. More than twenty parameters contrast to graphics.
3. Multiple curve display mode: Stress - strain, Force - displacement, Force - time,Strength –Time and other curve patterns.
4. Control mode: fixed displacement, fixed speed, constant strain rate, fixed load, fixed load rate, fixed strain rate, etc.
5. Dynamic display: During the test, the load, elongation, displacement and experimental curves selected as testing, real-time dynamic display on the main screen.
6.Automatic identification ,storage: test conditions, test results, regression
7.Graphical Analysis: After the test is completed, you can use the mouse to view data from the test curve, any point on the test curve can be enlarged analysis, and choose Print.
8.Report Output: Graphics and arguments are opened to customers and can be modified as required. It can output different report formats, convenient and easy to learn practical.

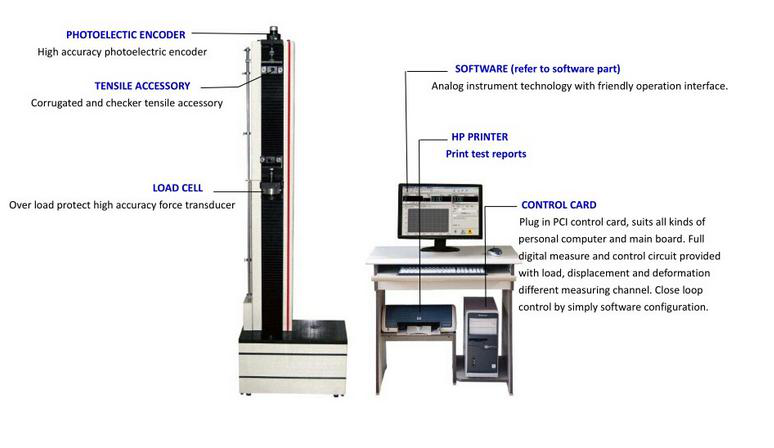

Detailed Images

NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine

NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine

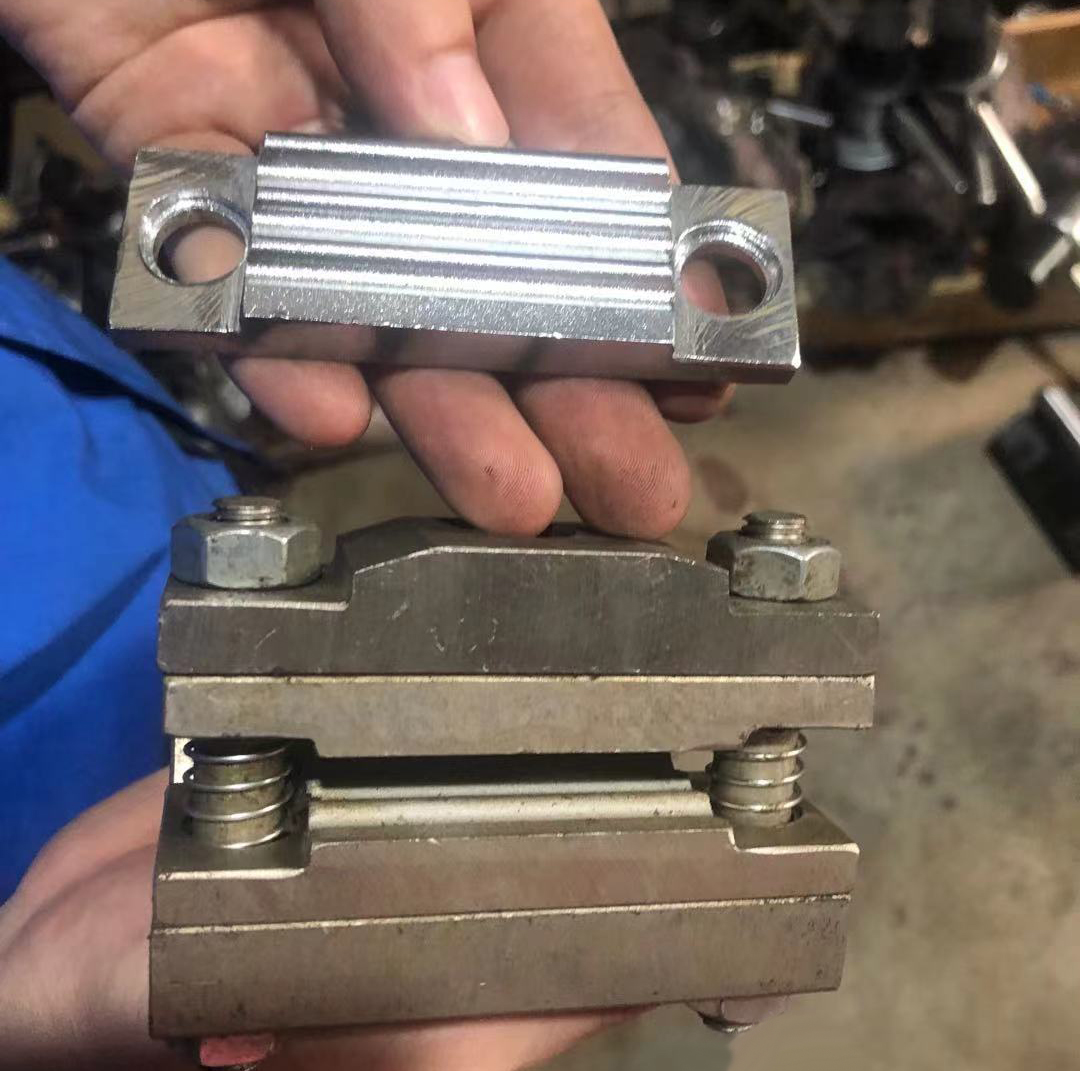

Standard accessories

NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine

thin film

NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machineNADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machineNADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine

fabric

NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine NADE Lab Digital Display Universal Testing Machine for thin film test WDW-5E 5kN tensile test machine
