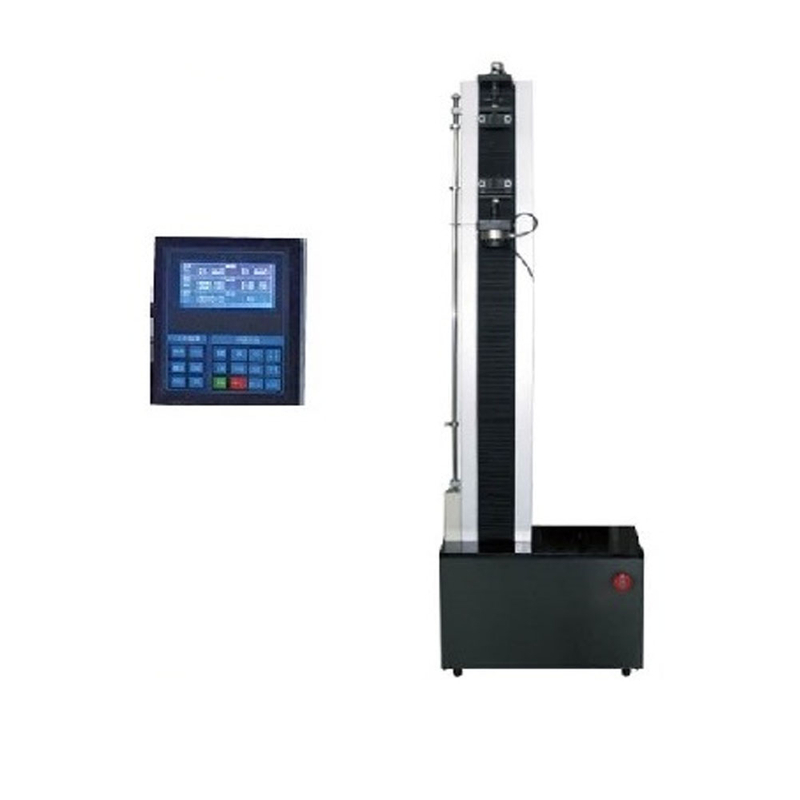

WDS-5M Universal Testing Machine

Max test force ( KN ): 5
Load measurement range: 2%-100%
Test force accuracy: ±1%
Speed of displacement: 1-200mm/min
Availability:
  • WDS-5M
  • NADE
  • 1
  • 1 year
  • China

Product Description

Brief Introduction:

WDS-5 Electronic Universal Testing Machine+Tensile Strength Testing Machine +Ultimate Tensile Strength Testing Machine  is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision testing machine.


Application:

Suitable for non-metallic material such as rubber,plastic,ribbon,wire,rope,

waterproofing membrane,wood-based panel,and small size,small load metal material mechanical test.The relative fixture can be complete tensile, compression,bending,shearing,tearing,peeling,static stiffness,ring rigidity,

extraction force and other performance tests.They may add test methods or rules according to customers requirement.They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine


Features:

1.The test adopt high accuracy and digital speed system, precision decelerate structure and precision drive screw ball to realize the max range of test speed. During the testing there is lower noise and smooth operation.

2.Touch button operation, LCD display screen. It includes test methods display screen, test force display screen, test operation and result display screen and curve display screen. It’s so convenient and fast.

3.It can achieve the adjustment of crosshead’s speed when clamp the specimen.


Specification

Model

WDS-5M

Structure type

Single Arm-type

Max test force ( KN )

5

Ways of operate

Digital display

Load measurement range

2%-100%

Test force accuracy

±1%

Speed of displacement

1-200mm/min

Displacement accuracy

±1%

Tensile space

550mm

Compression space

600mm

Dimension

600*450*1500

Accuracy

Class 1

protection

Overload protection and limit protection

Working environment

Room temperature10-35℃ humidity 20%-80%

Grip type

According to the client’s demand

Details:

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine  NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine  NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine  NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine



Main accessory

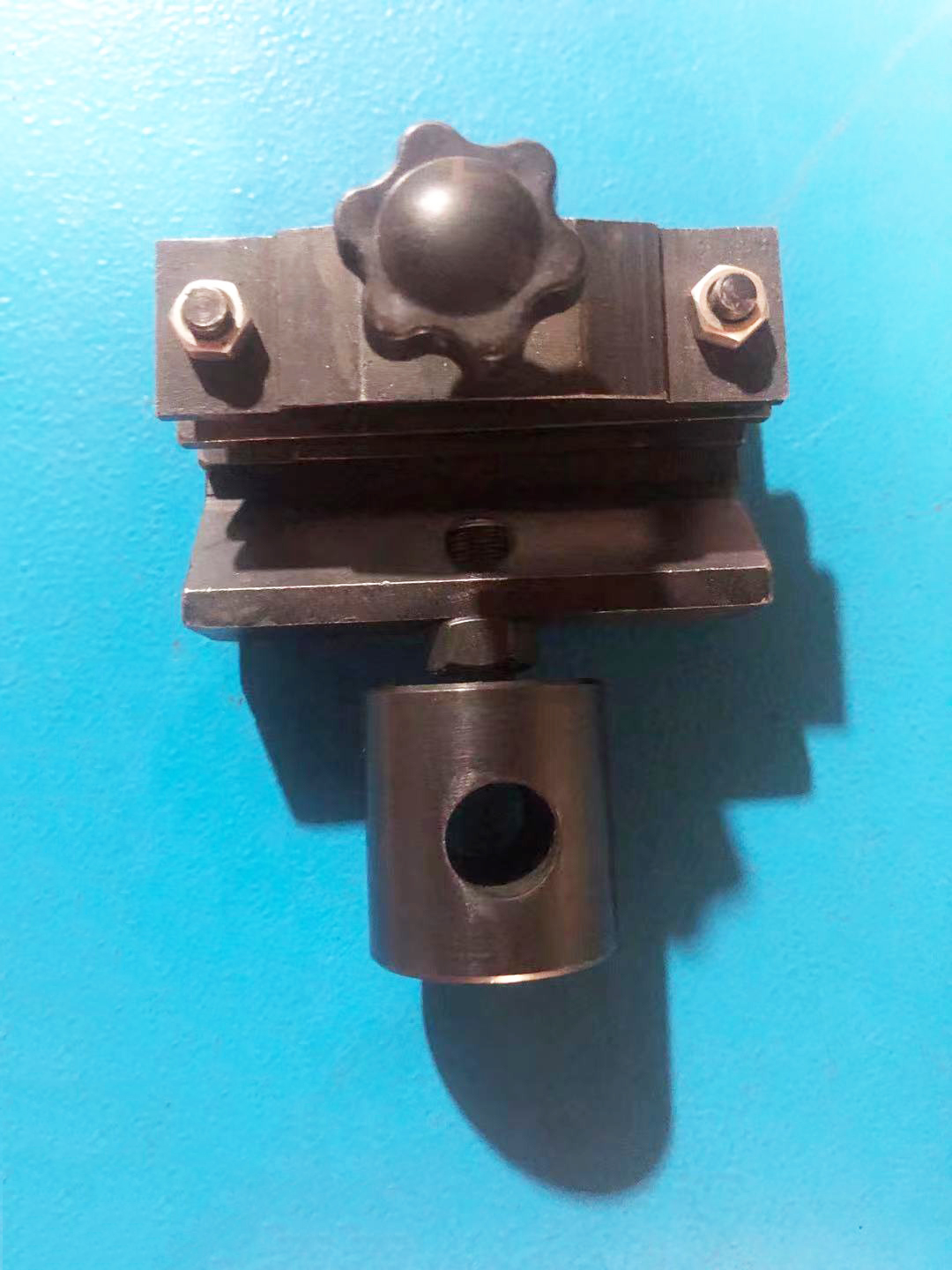

1. Mechanical tensile grip    1 set


NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine



2. Compression test attachment 1 set

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine

Specification: Diameter 100

3. High precision load cell    1set

 Flat load cell +/- 5kn, tensile & compression type

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine

4. Photoelectric encoder     1 set

  Measure the displacement

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine

5. LCD DISPLAT

NADE Lab tensile test machine Good Price for fabric tensile strength WDS-5E 5kN Digital Display Universal Testing Machine
