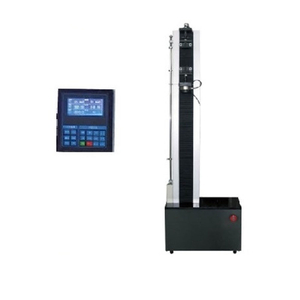

TST-02M Lab Universal Test Machine

Maximum Stroke: 1000mm
Testing accuracy: 0.2% FS
Accuracy of Speed: ±1%
Drive System: High performance imported servo driving system
  • TST-02M

  • NADE

  • AC 220V 50Hz/120V 60Hz

  • 1

  • 1 year

  • China

Product Description

TST-02M Auto Tensile Tester is applicable to determination of tensile properties, peel strength (90°, 180°), deformation, tearing strength, heat seal strength, puncture resistance, opening force, low-speed unwrapping force, pullout force and other properties of plastic films, composite materials, adhesives, adhesive tapes, medical patches, protective films, pressure sensitive paper, combination caps, metal foils and back panel materials, etc


High-end configuration·1000mm extra-long stroke

Ø High-precision imported ball nut screw with a new transmission structure of three-guide column guide bushing makes the system run more smoothly

Ø Two-way test mode for tensile and compression

Ø 0.2% of full scale effectively ensures accuracy and repeatability of test results

Ø Equipped with advanced displacement control system, displacement accuracy can reach 0.1mm

Ø With advanced servo drive system, which can achieve infinitely variable speed and wider test speed range to meet the user's needs for different test conditions

Ø 11.6inch PAD with intelligent data processing functions, providing users with a comfortable and smooth operating experience

Ø Speeds up to 3000mm/min for high-speed testing requirements

Ø Equipped with a portable control box for auxiliary operation, which makes the test more convenient

Ø Wide range of load cells for a variety of force testing requirements

Ø Equipped with a variety of grips for choose, which can meet the test requirements of more than 10,000 materials

Security Configuration

Ø Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation

Ø Equipped with UL certified imported Schneider emergency stop button to maximize the safety of man and machine during the test

Ø Timely monitoring of the system status to ensure that the equipment is always in the best operating status

Professional software

Ø Concise and intuitive operation interface, convenient user-defined test functions, and complete data analysis and reporting functions

Ø Built-in test file standard library, in line with various international test methods

Ø Provide historical data backup management function, which can conduct diversified analysis of historical test data

Ø User multi-level authority management, convenient for laboratory managers to regulate equipment use

Ø Equipped with a standard serial communication port, which can be connected to computer software to facilitate data processing and transmission

Ø The software data is traceable, which can realize functions such as multi-level authority management, audit trail, electronic signature, etc., which meets the requirements of GMP (optional)

Ø Pubtester also provides professional customization services to meet the individual needs of users in fixtures, software, etc.

Ø Free software upgrade lifetime.


NADE Lab Universal Test Machine Adjustable Speed Tensile Strength Tester TST-02M For Adhesive Tapes, Medical Patches

Test Principle
The specimen clamped between two chuck and do relative motion. Conduct piercing or opening test through special clamp head. Collect the strength and displacement changes in the progress of test by force test and control system to calculate the corresponding force value data


ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, JIS P8113, QB/T 2358, QB/T 1130


Basic Application*

Extended Application**

Tensile Strength & Deformation Rate

Puncture Resistance Test of Artificial Skin

Puncture Test of Films

Puncture Resistance of Infusion Bag Closures

Puncture/Pullout Test of Flexible Rubber Closures

Tensile Stress at Break

Opening Resistance Test of Combined Covers

Tear Test of ZD - Type Caps

Tearing Resistance Test of Oral Liquid Caps

Puncture/Pullout Test of Oral Liquid Caps

Heat Seal Strength

90 Degree Pullout Force Test of Infusion Bag Closure

Pullout Test of Infusion Bag Closure

23 Degree Pullout Test of Bottle Caps

Puncture/Pullout Test of Flexible Rubber Closures

Tearing Strength

90 Degree Peel Test of Adhesive Tapes

Tear Resistance Test of Adhesive Binding Books

90 Degree Peel Test of Water-soluble Plasters

Tearing Resistance Test of Adhesives

Shearing Strength

Adhesive Strength Test (soft)

Adhesive Strength Test (Hard)

Peel Test of Flexible Tube Caps

Removal Force of Pipes and Pipe Joints

180 degree Peel Test

Pullout Test of Cosmetic Brush Hair

Pullout Test of Tooth Brush Hair

Tensile Strength of Ropes at Break

Opening Force Test of Jelly Cups and Yogurt Cups

90 Degree Peel Test

Peel Test of Cup Films

Pullout Test of Rubber Closure

45 Degree Peel Test of Bottle Membranes

Tensile Strength of Sealing Bags

Compression Test

Peel Test of Magnetic Cards

90 Degree Peel Test of Magnetic Cards

Tearing Resistance of Heat-sealable Films

Separating Force Test of Protective Films

User defined test

Separating Force of Release Paper

Tear Test Using Trouser Method

Unwrapping Force of Adhesive Tapes

Compression Resistance Test of Plastic Bottles

20 Degree Peel Test

135 Degree Peel Test of Plugs

Peeling Grips of Floating Rollers

Eccentric Grips

Wide Sample Grips

Japanese Sample Grips

British Sample Grips


Note: *Additional accessories or customized sample grips may need to be purchased separately to complete the tests that cannot be completed with standard sample grips.

     ** Customized grips are needed for extended applications


Standard configuration: Instrument, Computer, Universal Grips, Professional Software, Communication Cable, HP Printer, Portable Control Box

Optional configuration: Test plate (50×125mm, 40×180mm, 50×200mm and others need to be customized), sample cutter (10#, 15#, 20#, 25#, 25.4#, others need to be customized), standard pressure roller, Pneumatic grip, extensometer, calibration weight, GMP software, etc.
