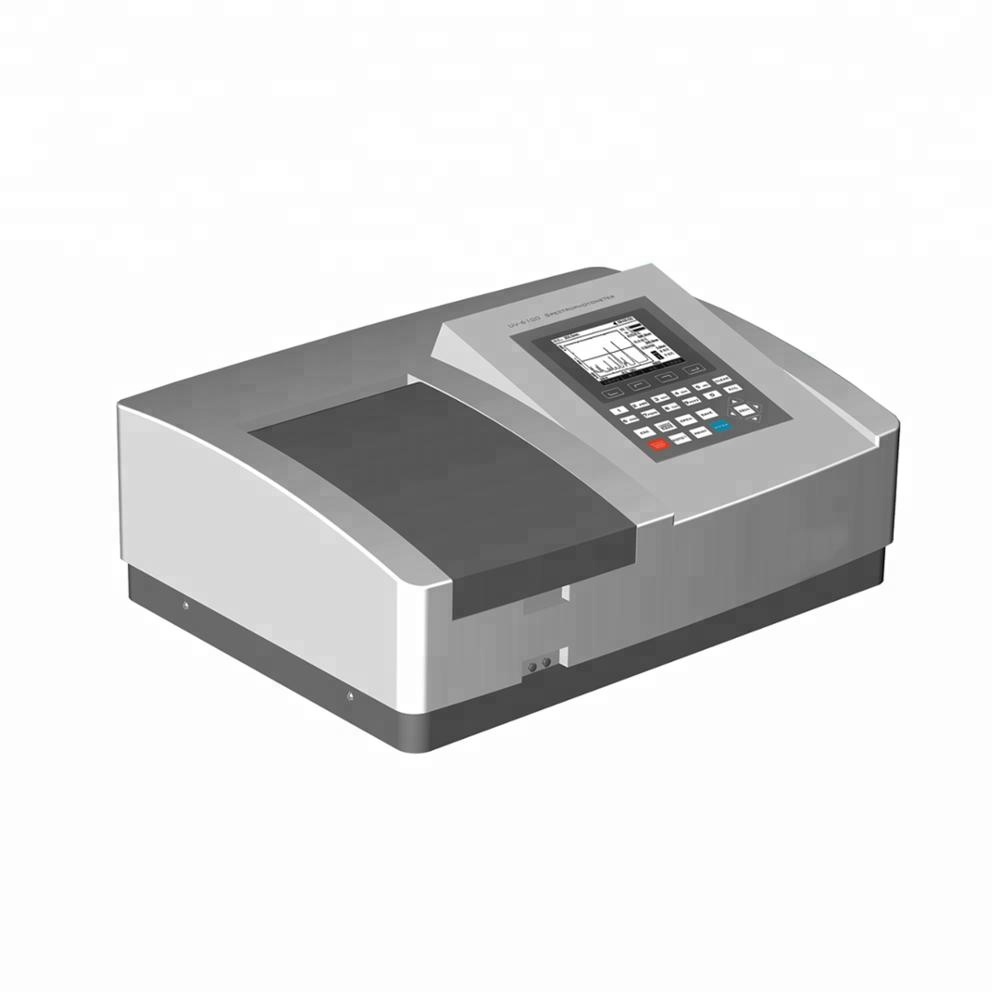

NADE UV-6100S Laboratory Advanced Bandwidth Adjustable Double Beam UV VIS Spectrophotometer

UV-6000 Series is an advanced double beam design consisting of 3 models.

UV6100 with 1.8nm fixed bandwidth.

UV6300 with 1.0 fixed bandwidth.

UV6100S with variable bandwidth:0.5/1/2/5nm.

Other specifications of the six models are almost the same except bandwidth.

The two detectors measure sample and reference respectively and simultaneously for optimizing measurement accuracy.

They provide excellent performance for measurements in the range of 190 to 1100nm.

They are suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analysis, kinetics, wavelength scan, multiple components and DNA/Protein, PC Windows application software make these instruments versatile.

All instruments provide excellent performance for measurements.

1. Fixed or variable slits(bandwidths)
2. For Stand-alone models, all software methods are included as built-in standard; this eliminates the need of software.
3. Online software upgrading via internet helps to keep it updated.
4. Data Download-to-PC software expands the data storage to unlimited.
5. The stand-alone model has 5 inch screen and the PC model has UV/Vis Analyst software.

Model	UV-6100 UV6100PC	UV-6300 UV-6300PC		UV-6100S UV-6100PCS
Wavelength Range	190-1100nm
Spectral Bandwidth	1.8nm		1.0nm	0.5,1,2,4nm
Optical System	Double Beam , Grating 1200 lines/mm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	0.2nm
Scan Speed	Hi ,MED. ,LOW. ,MAX. 3000nm/min
Photometric Accuracy	≤±0.5%T or ±0.005A@1A
Photometric Range	0-200%T , -0.3 - 3A .
Stray Light	0.05%T@220 ,340nm
Stability	±0.001A/h @500nm
Display	5 inches LCD(320*240 dots)
Baseline Flatness	±0.001A
Standard Cell Holder	Standard 10mm single cell holder (2 pcs)

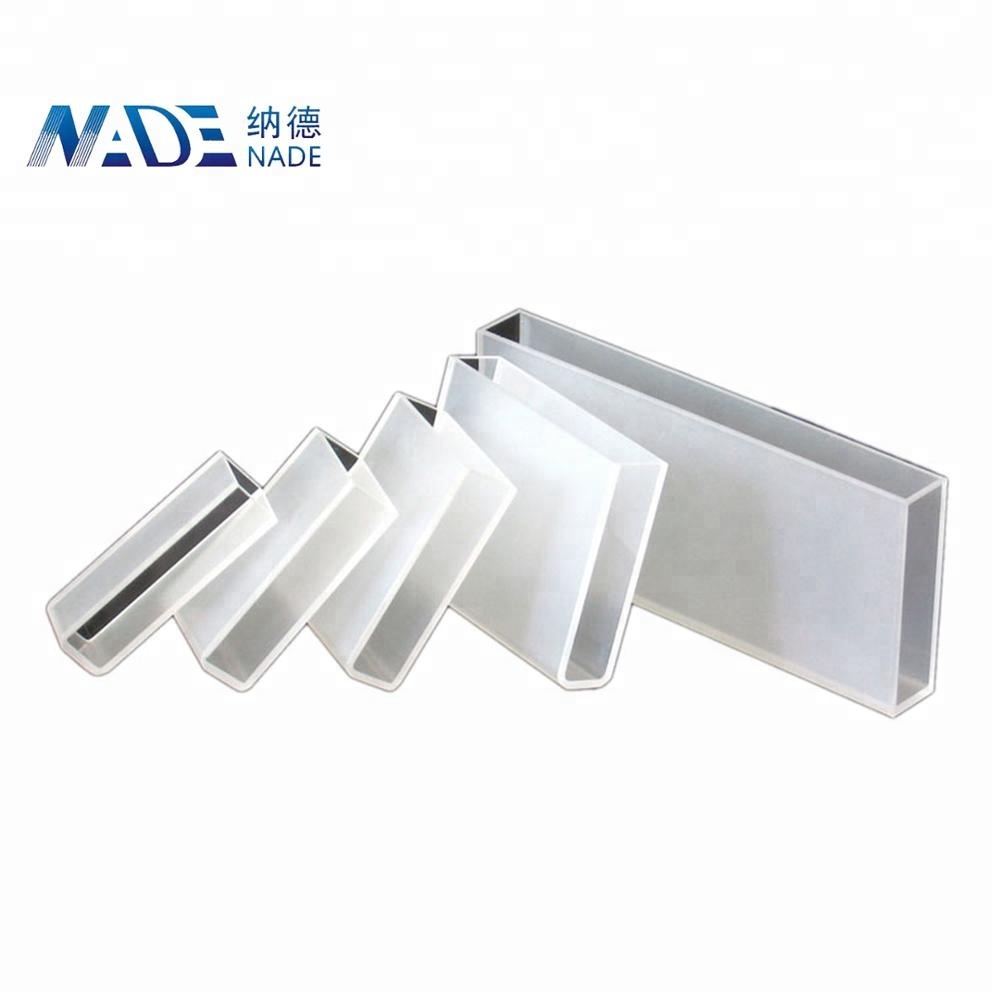

Sample Compartment	Standard 10mm pathlength cuvette

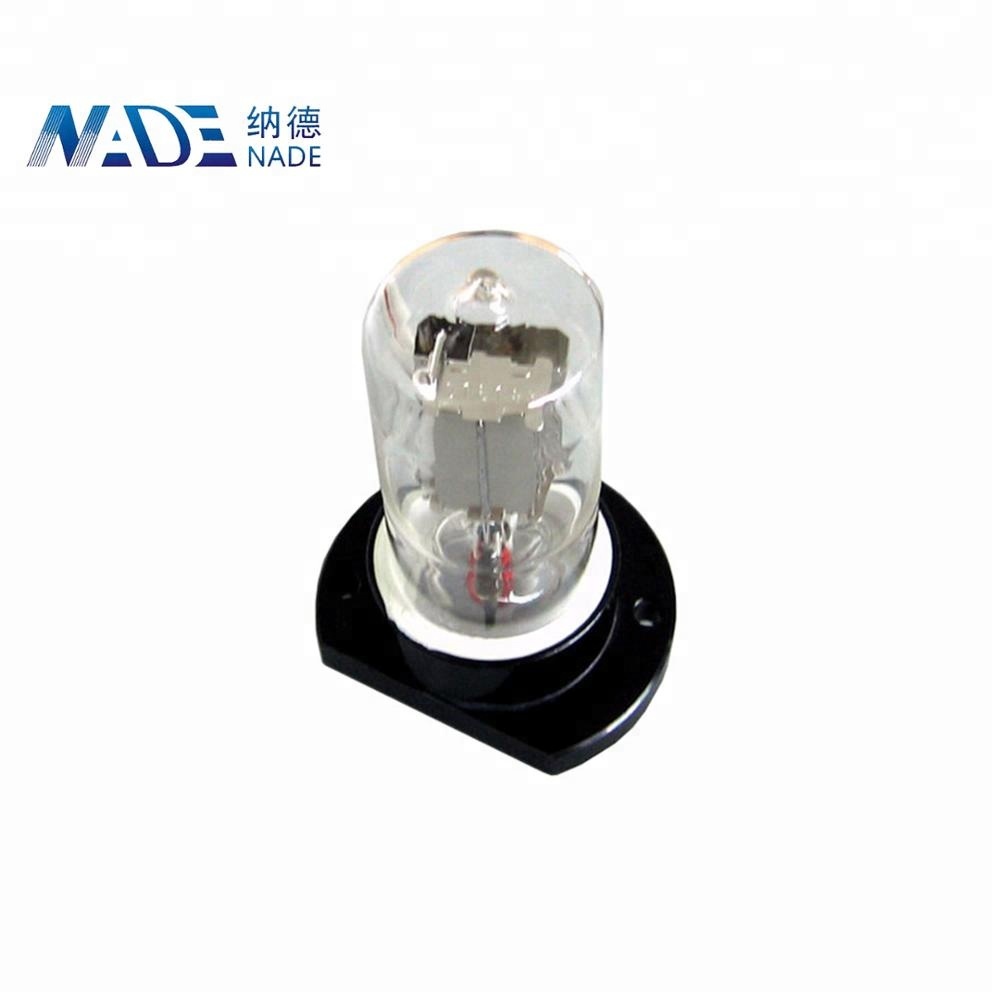

Light Source	Tungsten & Deuterium lamp(pre-aligned)
Output	USB Port & Parallel Port(printer)
Power Requirement	AC 110/220V 50/60Hz
Dimensions(W*D*H)	600*450*200mm
Weight	22kg

UV6000 series are all with PC software.

Introduction for UV-6000 Series Local Control Software:

All methods are included as built-in standard; this eliminates the need of software. Online software update via internet.

The local control software includes functions such as: Photometry, Quantitative, Wavelength Scan, Kinetics, DNA/Protein, Multi-wavelength and System Utilities.

Standard Curve

Up to 10 standard solutions may be used to establish calibration equation curve. There is a choice of four methods for fitting a curve through the calibration points: Linear fit, Linear fit through zero, square fit and cubic fit.

Wavelength Scan

The Wavelength Scan intervals are 0.1, 0.2, 0.5, 1, 2, 5nm, and High, Medium and Low scan speeds are available. Scan speeds vary from 100 to 1000 nm/min. Wavelengths are scanned from high to low so that the instrument stand by at high wavelength. This minimizes the degradation of UV sensitive samples. Precise control of filter and lamp changes means that their effects are not seen on the final scan. Post-run manipulation includes re-scaling axes, curve tracking and peak picking.

Kinetics

This mode may be used for scanning time course or reacting rate calculations. Abs. vs. time graphs is displayed on the screen in real time.

Wait time and measurement time up to 12 hours may be entered with time intervals of 0.5, 1, 2,5, 10, 30, seconds and 1 min.

Post-run manipulation includes re-scaling, curve tracking and selection of the part of the curve required for the rate calculation. Rate is calculated using a linear regression algorithm before multiplying by the entered factor.

Multi-Wavelength

Up to 10 wavelengths may be entered, allowing the measurement of multiple wavelengths on a series of Samples

DNA/Protein Test

Concentration and DNA purity are calculated by

Absorbance ratios 260nm/280nm or 260nm/230nm with optional subtracted absorbance at 320nm

DNA Concentration=62.9*A260-36.0*A280

Or 49.1*A260-3.48*A230

Protein Concentration=1552*A260-757.3*A280

Or 183*A260-75.8*A230

Other wavelengths and factors may be entered.

UV/Vis Analyst for UV-3000 &UV-6000 Series

The windows based PC application software UV/Vis Analyst takes the best features of the stand-alone version plus more powerful data processing, expanded data collecting, and storage capability. It comes standard with PC models and is optional to stand-alone models.

The PC application software offers:

Photometric Mode

Quantitative test(standard curve)

Wavelength Scan

Kinetics

DNA/Protein

Multi-Wavelength

System Utility
