NADE 190~1100nm wavelength scanning UV VIS Spectrophotometer 756PC

  • 1 year
  • other
  • China
  • NADE
  • 756PC
  • 456*375*220 mm
  • 17.5kg
  • no
  • 190 to 1100nm, 190 - 1100nm (step interval 0.1nm)
  • Single beam, C-T type, 1200 lines/mm grating
  • Tungsten lamp, Deuterium lamp
  • +/- 1.0nm (Auto-calibration when starting )
  • 2nm
  • 0.5 nm
  • 4.3" color LCD, touch screen
  • USB interface, LPT parallel printer interface

Product Description

Introduction

1.High UV-Vis performance between 190 and 1100 nm
2.Specially designed for industry and labs
3.Pre-set wavelength program (4 wavelengths), and one-touch key response
4.Single-point curve calibration and multi-point curve calibration (up to 12 points)
5.Display of fitting degree of curve fitting and concentration data with up to 50 sets of curve parameters storage
6.Display of concentration data with up to 200 sets of data storage
7.System clock management/ Dark current calibration/ wavelength calibration/USB data communication
8.Data-processing software

Applications

Measurement of quantities of some certain material in both visible and ultraviolet region. It could be applied vary among different fields, such as factories, schools, metallurgy, agriculture, food industry, biochemistry, environment protection, petrochemical industry, medical and health and scientific research institutes or labs.

Features

1.Big Color Screen: Large screen, TFT LCD monitor, provide abundant weighing display information, convenient to read.
2.Full Screen Touch: In line with the laboratory touch solutions for work habits, even wear gloves more pieces, it can be operated.
3.Humanized user interface: Application of Metro color scheme, using the green color, the eye won’t tired long for long time work.
4.Deviation Elimination: Deviation caused by cuvette will be eliminated automatically.

Specification
Model
756PC
Optical System
Single beam, C-T type, 1200 lines/mm grating
Detector
Silicon photo diode
Light Source
Tungsten lamp (socket type, 20W / 12V, 2000 hours)

Deuterium lamp (1000 hours)
Display Mode
4.3” color LCD, touch screen
Spectral Bandwidth
2nm
Wavelength Range
190 - 1100nm (step interval 0.1nm)
Wavelength Accuracy
±1.0nm(Calibrate by system automatically )
Wavelength Repeatability
0.5nm
Stray Light
≤0.15%T (220Nal)
Photometric Range
T:-1.0 ~ 200.0%T, A:-0.5 ~ 3.000Abs, F:0 ~ 9999, C:0 ~ 9999
Photometric Accuracy
±0.5%T
Photometric Repeatability
0.2%T
Stability
±0.002A/h
Data Output
USB interface, LPT parallel printer interface
Software
UV-Solution
Power Requirement
220V±10% 50Hz 150VA
Dimensions
456(W)×375(D)×220(H) mm
Net Weight
17.5kg
Accessories

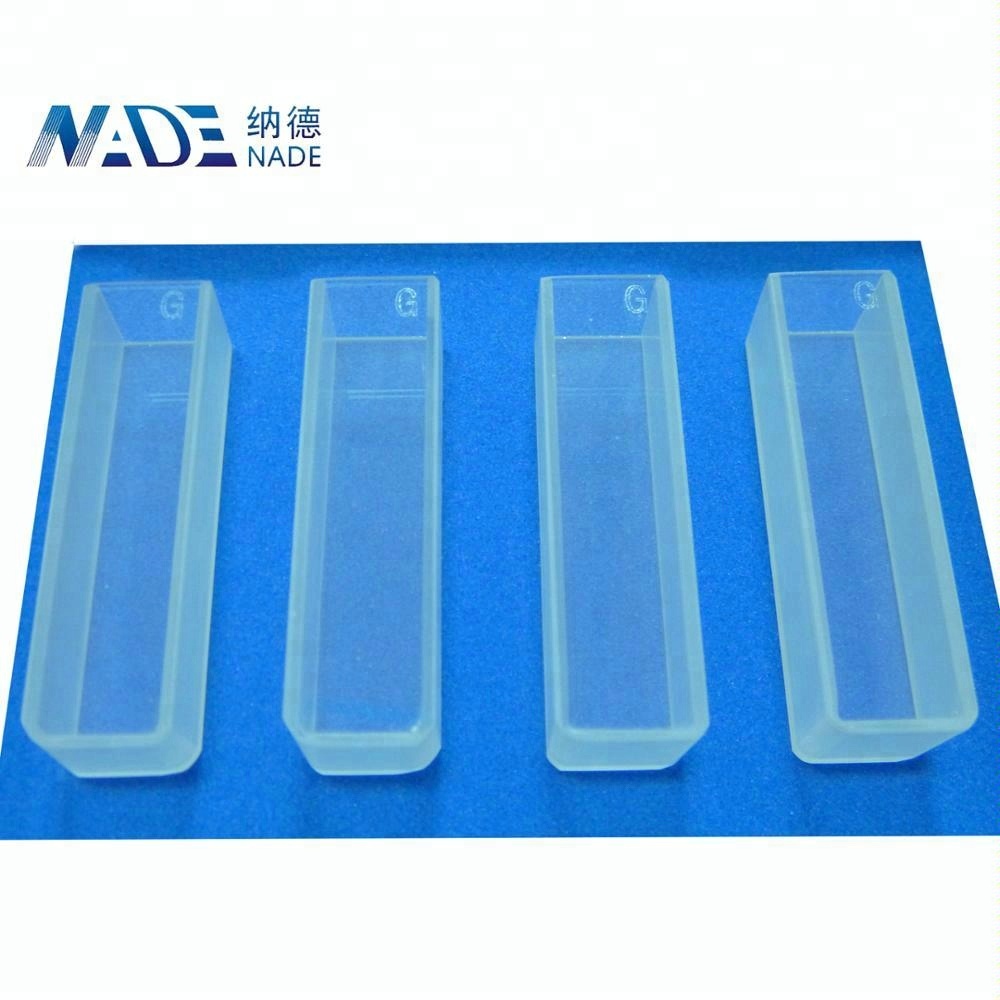

We also provide cuvette for spectrophotometer, glass/quartz/plastic(disposible) at different size.
