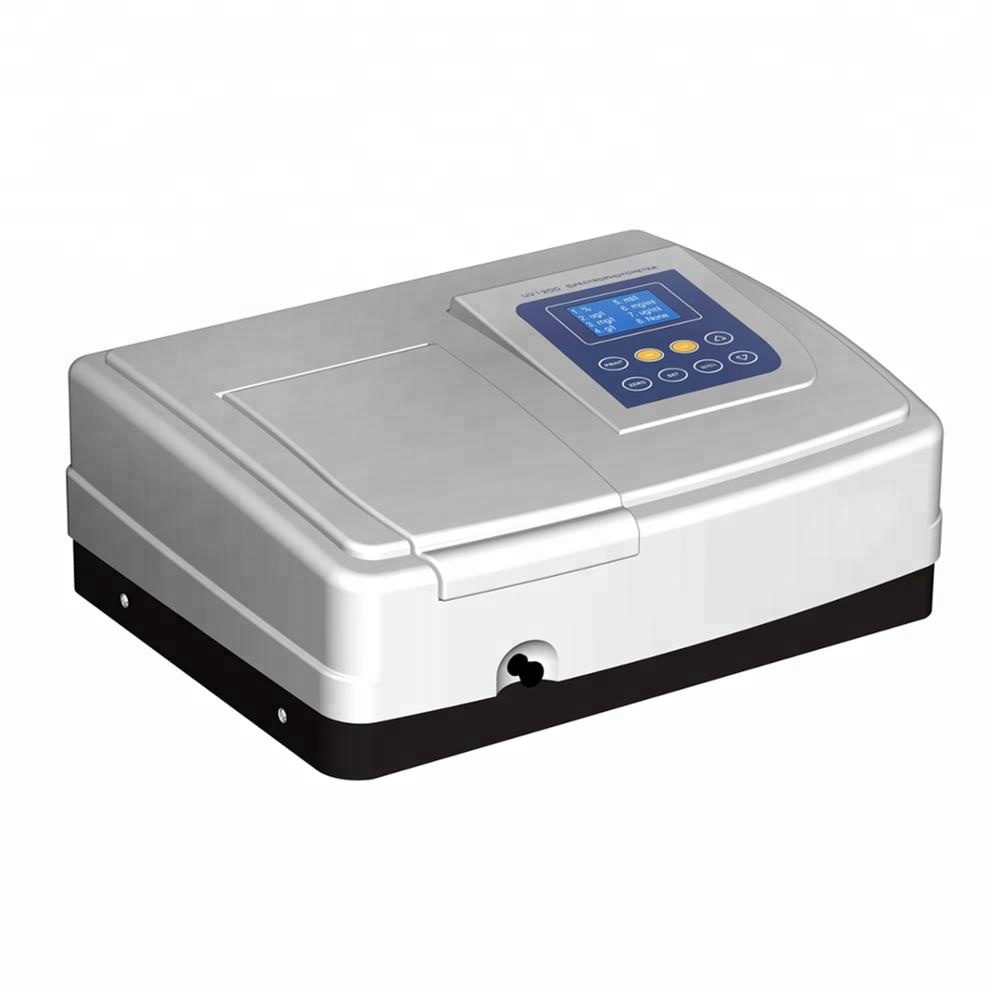

NADE UV-1100 200~1000nm Basic UV Vis Spectrophotometer for school

  • China

  • NADE

  • 4 nm

  • Single Beam , Grating 1200 lines/mm

  • ±2nm

  • Tungsten & Deuterium lamp

  • 0-200%T , -0.3 - 3A

Product Description

Introductions

V/UV-1200, UV-1100 spectrophotometer is the ideal instrument for education and QC laboratories.

Using your standard sample solutions, you can get a standard curve on the large LCD screen.

They are widely used in colleges and enterprises for general quantitative analysis and experiments.

Features:
  • Large LCD screen(128*64 Dots).
  • Can display total 50 groups of data, 3 groups per screen. Can display standard curve and the curve equation.
  • System can also save the test results. Total 200 groups of data and 100 standard curves can be saved; it is convenient for check and reload.
  • Data can be restored after a sudden power cut.
  • Auto setting wavelength.
  • Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime.
  • Pre-aligned design makes it convenient to change lamps.
  • Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are available.
Specification:

Model

V-1200

UV-1200

UV-1100

Wavelength Range

325-1000nm

200-1000nm

Spectral Bandwidth

4nm

Optical System

Single Beam , Grating 1200 lines/mm

Wavelength Accuracy

±2nm

Wavelength Repeatability

0.8nm

1nm

Photometric Accuracy

≤±0.5%T or ±0.003A@1A

Photometric Range

0-200%T , -0.3 - 3A ,0-9999Conc

Stray Light

0.3%T

Stability

±0.002A/h @500nm

Detector

Silicon Photodiode

Standard Cell Holder

4-position 10mm cell changer

Sample Compartment

Standard 10mm pathlength cuvette

Light Source

Tungsten lamp

Tungsten& Deuterium lamp

Output

USB Port & Parallel Port(printer)

Power Requirement

AC 110/220V 50/60Hz

Dimensions(W*D*H)

470*370*180mm

Weight

12kg

14kg
