NADE UV-1800PC Laboratory Professional UV-VIS Spectrophotometer with Software

  • China

  • NADE

  • 190-1100nm

  • 2 nm

  • Single Beam , Grating 1200 lines/mm

  • ±0.5nm

  • Tungsten & Deuterium Lamp

Product Description

Introduction

Simple-to-use instruments with advanced performance.
Its’ stray light is only 0.05%. The local stand-alone software provides functions of Photometry, Quantitative Test, Kinetics and System Utilities functions.

Features

1.Large LCD screen(128*64 Dots).
2.System can also save the test results, total 200 groups of data 100 standard curves can be saved in the RAM. Convenient for check and reload.
3.Data can be stored after a sudden power cut.
4.Auto setting wavelength
5.Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime.
6.The optional application software M. Wave Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. It can expand to the following functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test.
7.Pre-aligned design makes it convenient to change lamps.

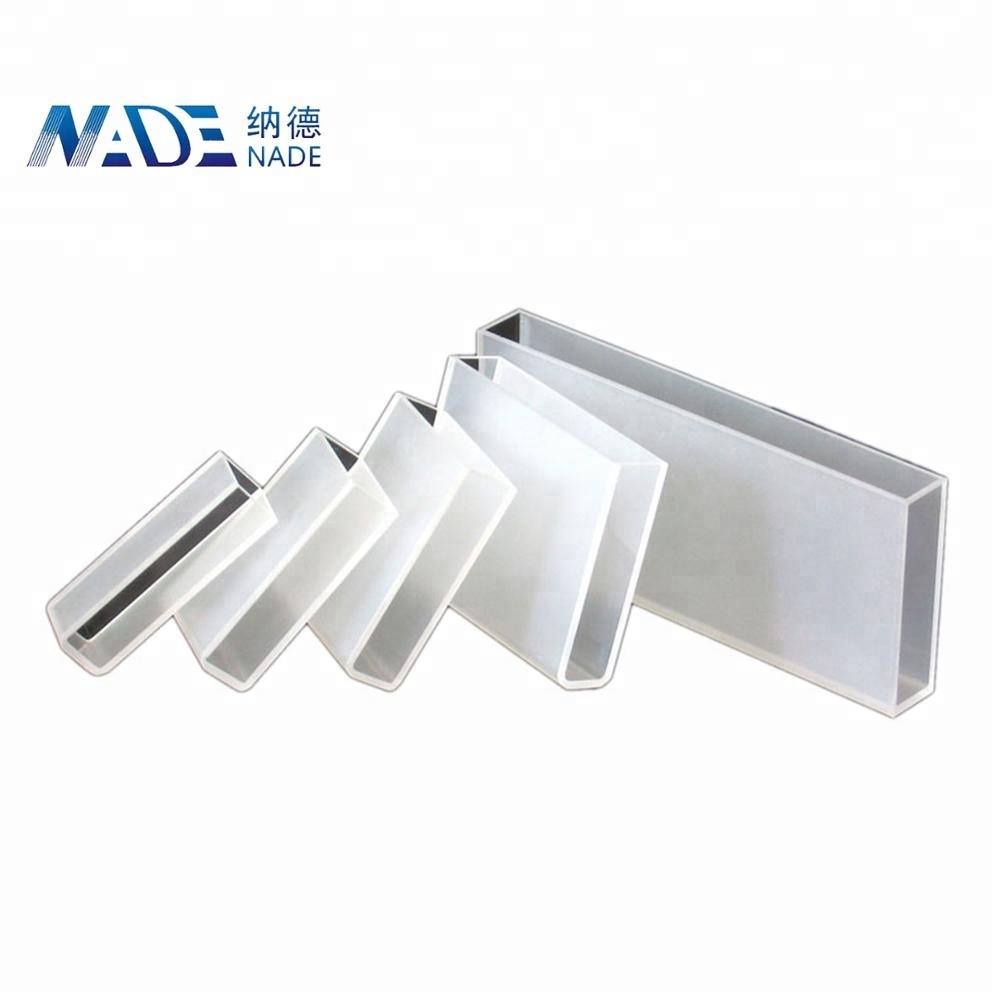

8.Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are available.

Specification
Model
UV-1800 UV-1800PC
Wavelength Range
190-1100nm
Spectral Bandwidth
2nm
Optical System
Single Beam , Grating 1200 lines/mm
Wavelength Accuracy
±0.5nm
Wavelength Repeatability
0.3nm
Photometric Accuracy
≤±0.5%T or ±0.003A@1A
Photometric Range
0-200%T , -0.3 - 3A ,0-9999Conc
Stray Light
≤0.05%T@220 ,360nm
Stability
±0.002A/h @500nm
Display
Graphic LCD(128*64 dots)
Keyboard
22 Membrane keypad
Standard Cell Holder
Standard 10mm pathlength cuvette
Sample Compartment

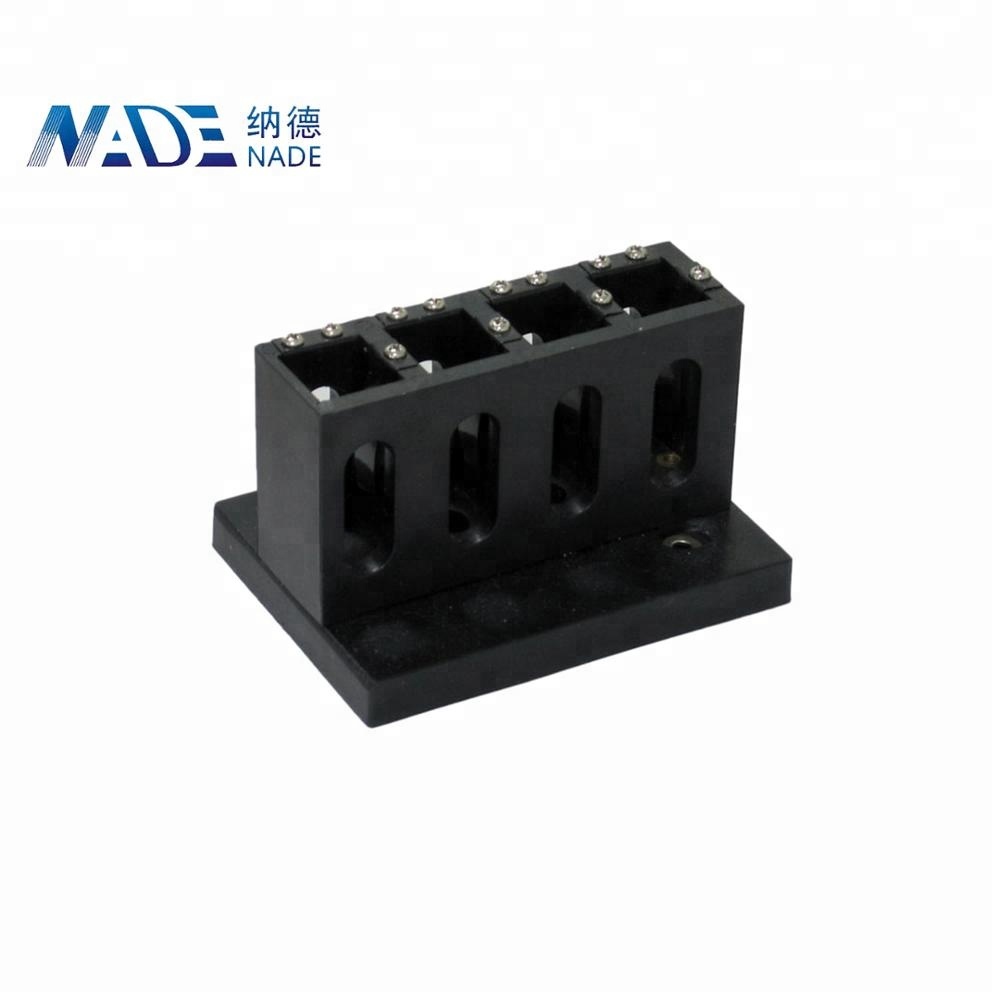

4-position 10mm cell changer
Light Source
Tungsten & Deuterium lamp
Output
USB Port & Parallel Port(printer)
Power Requirement
AC 110/220V 50/60Hz
Dimensions(W*D*H)
470*370*180mm
Weight
14kg

Mode with '"PC" means equipped with PC software.

PC software details


Main Menu

Move the cursor on the function menu you want, then press ENTER key to go into the corresponding interface.

01 Basic Mode


Absorbance, Transmittance or Concentration measurements. It can display and save 200 groups of data, 5 groups per screen.

02.Quantitative

2.1 Standard Curve At most 9 standard samples can be used to establish a standard curve. The curve and its equation will be displayed on the screen simultaneously. You can measure your unknown concentration solutions by the curve. Total 100 curves can be saved in the RAM. 2.2 Coefficient Method If you have known the coefficient K*a + b is known, you can input them directly by the button, and then test your unknown solutions.

03 Kinetics


This mode may be used for time course scanning or reaction rate calculations. Abs. VS time graphs is displayed on the screen in real time. It can most record 1000 data.

04.System Utilities
