Product Description

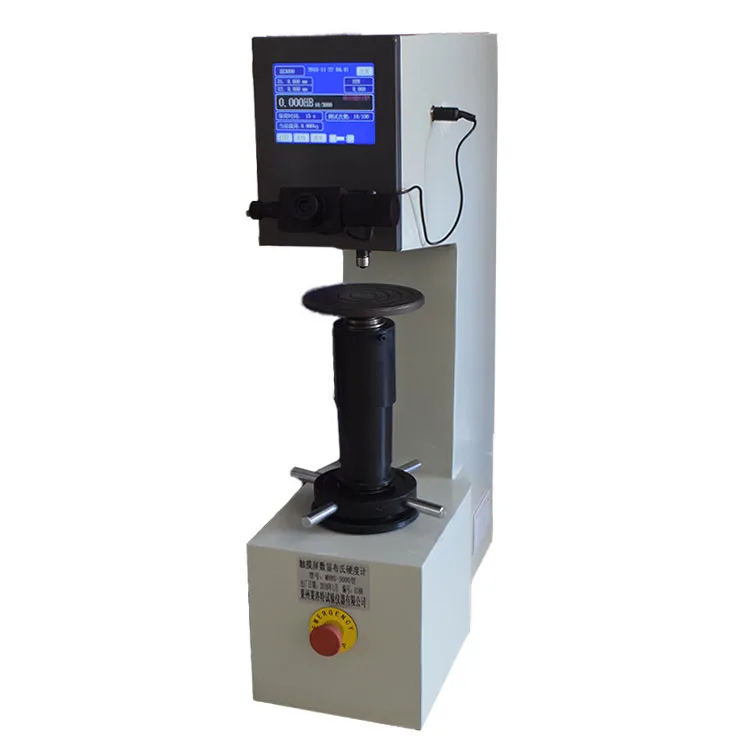

NADE MHBS-3000 touch screen digital display Brinell hardness tester Price for metals
Innovative design, strong construction ,high test efficiency ;
Automatic loading, closed-loop control system, test process LCD screen display;
On-board measurement, can be converted Rockwell, Vickers hardness and tensile strength, then print hardness test results;
Large LCD liquid crystal display, menu intellisense, easy to operate;
Video system and CCD image processing system optional;
Precision conforms to the Standards of GB/T 231.2, ISO 6506-2 and ASTM E10.
It's suitable to determine the Brinell hardness of ferrous metals, nonferrous metals and bearing alloy materials;
Wide range of applications, especially for parallel plane precision measurement.
| Measuring range | 8-650HBW |
| Brinell scale | HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/162.5, HBW5/250,HBW5/750,HBW10/100,HBW10/1500, HBW10/3000,HBW10/1250,HBW10/500,HBW10/1000 |
| Test force | 62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N), 187.5kgf(1839N),250kgf(2452N),500kgf(4903N), 750kgf(7355N),1000kgf(8907N),1500kgf(14710N), 3000kgf(29420N) |
| Max. height of test piece | 225mm |
| Depth of throat | 135mm |
| Optical magnification | 20X |
| Min test unit | 1μm |
| Power | AC220V 50/60HZ |
| Dimension | 565*245*786mm |
| Weight | 130kg |
