1 year
hardness tester
other
Zhejiang, China
NADE
HBS-3000
235mm
120mm
20X
Product Description

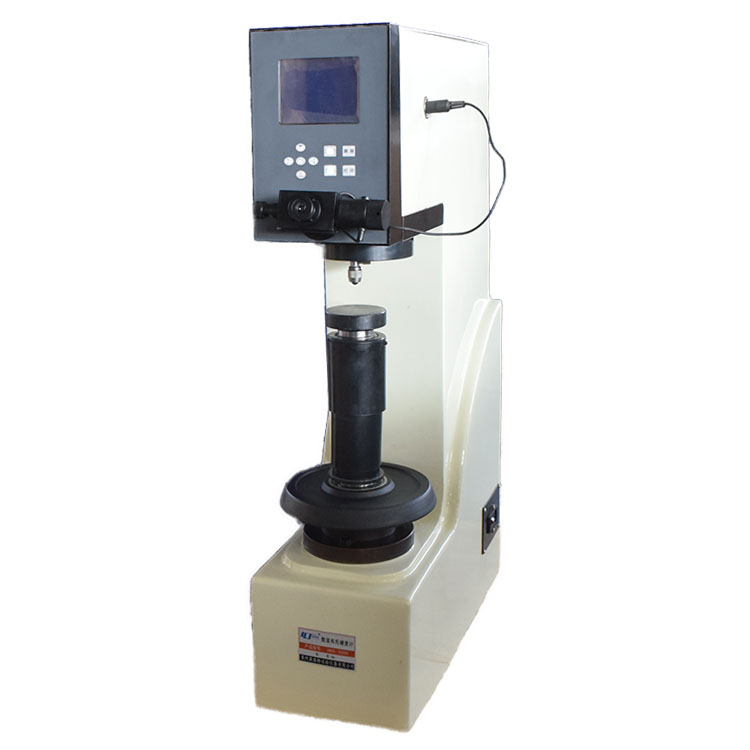

NADE HBS-3000 Digital display Brinell hardness tester Price for ferrous metals, nonferrous metals
Innovative design, solid construciton ,high test efficiency ;
Weight adding system ,LCD display test process;
On-board measurement, can be converted Rockwell, Vickers hardness and tensile strength, then print hardness test results;
Large LCD liquid crystal display, menu intellisense, easy to operate;
Video system and CCD image processing system optional;
Precision conforms to the Standards of GB/T 231.2, ISO 6506-2 and ASTM E10.
It's suitable to determine the Brinell hardness of ferrous metals, nonferrous metals and bearing alloy materials;
Wide range of applications, especially for parallel plane precision measurement.
| Measuring range | 8-650HBW |
| Test force | 1838.8,2451.8,4903.5,7355.3,9807,29421N (187.5,250,500,750,1000,3000kfg) |
| Max. height of test piece | 235mm |
| Depth of throat | 120mm |
| Optical magnification | 20X |
| Min test unit | 1μm |
| Power | AC220V 50/60HZ |
| Dimension | 705*215*880mm |
| Weight | Approx. 200kg |
