1 year
hardness tester
other
Zhejiang, China
NADE
200HVS-5
130mm
110mm
400x;100x
0.25mm
Product Description

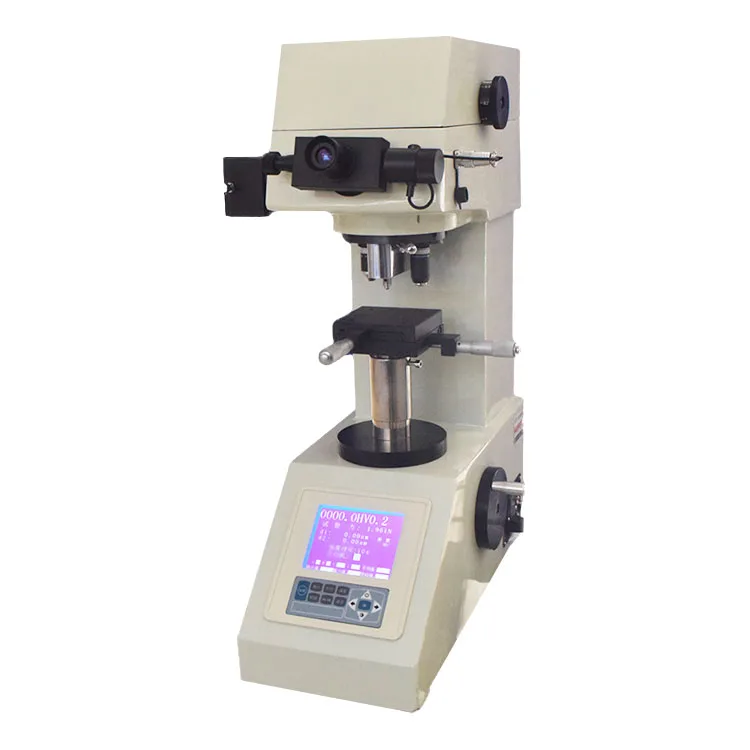

NADE 200HVS-5 Digital Display Low Load Vickers Hardness tester Price for Nitrided layer, ceramic, steel
Weight direct load-type Vickers ,micro vickers integrated machine, high precision ;
LCD hardness display, high precision optical measurement system;
Equipped with RS232 interface;
CCD image processing system optional;
Equipped with precise coordinate test table ,can test case depth and hardness trapezoid;
The test force covers the microscopic and Vickers test requirements;
Precision conforms to the Standards of GB/T 4340.2, ISO 6507-2 and ASTM E92.
Nitrided layer, ceramic, steel, nonferrous metals;
Sheet metal sheet, electroplated layer, micro specimen;
Depth measurement of carbonized layer, decarburized layer, and quenched hardened layer.
| Measuring range | 5-3000HV |
| Test scale | 1.961,2.942,4.93,9.807,19.61,25.52,29.42,49.03N (0.2,0.3,0.5,1.0,2.0,2.5,3,5kgf) |
| Magnification | 400x;100x |
| Min test unit | 0.25mm |
| Test force dwelling time | 0-99s |
| Max height of specimen | 130mm |
| Throat depth | 110mm |
| Size of XY coordinate worktable | 100*100mm |
| Travel of XY coordinate worktable | 25*25mm |
| Resolution of xy coordiante worktable | 0.01mm |
| Optical source | 12v/20w |
| Language | Chinese /English |
| Power supply | AC220V 50HZ/60HZ |
| Power Consumption | ≤50w |
| Overall Dimension | 486*337*657mm |
| Weight | 68kg |
