Vacuum Drying Equipment
12kg
Medicine Processing, Chemicals Processing, Food Processing
New
China
Nade
220V 50HZ
2200W
580*500*720mm
CE Certificate
Easy to Operate
1 Year
81
No service
laboratory
None
None
Ordinary Product
Not Available
Not Available
1 Year
Other
≤-80℃
500mm
dia.255mm
6kg/24h
4L/S
≤5pa
24pcs
500ml/pc
wind cooled
Electric Defrosting
Product Description

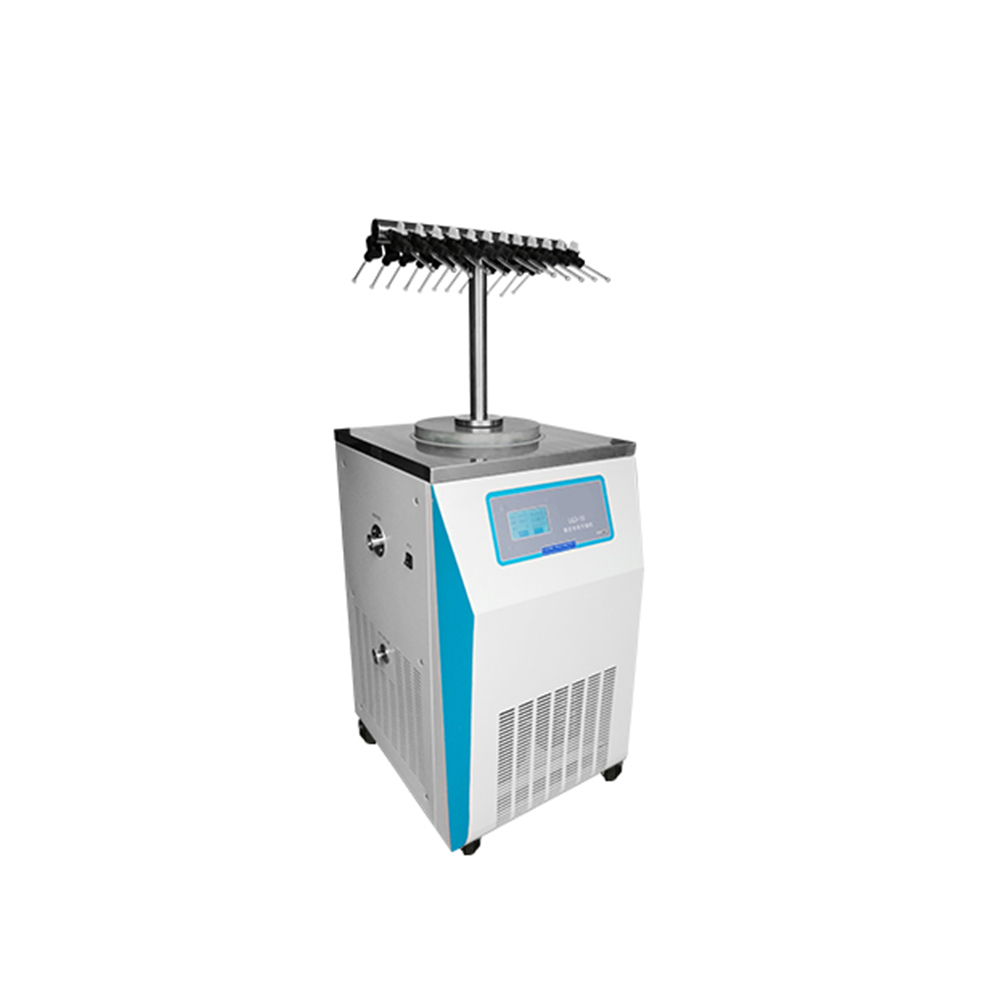

NADE LGJ-18-80T T-type Eggplant bottle laboratory Vacuum Lyophilizer/freeze drying equipment/freeze dryer China
LGJ-18-80T T-type vacuum freeze dryer widely used in medicine, pharmacy, biology research, chemical industry and food production,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.LGJ-18-80T is suitable for experiment in laboratory or small quantity of production. It can meet the regular freeze drying requirments of the most laboratory.
1. All-in-one structure , small size, no external flange, easy to use, no leakage.
2. All materials in contact with the product use inert materials to meet the requirements of the GLP.
3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6. Patented gas diversion technology, and strong ice holding ability.
7. World- known brand compressors, high efficiency, long life, low noise.
8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.
| Model | LGJ-18T |
| Specification | T type |
| Cold trap temperature | ≤-80℃ |
| Cold trap dept | 500mm |
| Cold trap dia. | dia.255mm |
| Ice collecting capacity | 6kg/24h |
| Pumping speed | 4L/S |
| Ultimate vacuum | ≤5pa |
| Number of bottles | 24pcs |
| Eggplant bottle specification | 500ml/pc |
| Power | 2200w |
| Weight | 81kg |
| Overall dimensions | 580*500*720mm |
| Drying chamber size | dia.260*465mm |
| Cooling mode | wind cooled |
| Defrosting mode | Electric Defrosting |
Optional accessories and functions
·cold trap temperature -80℃
·vacuum pump anti-returned oil device
.cold trap electrical heat defrosting
·oil mist filter system
·imported vacuum pump
other models:
LGJ-18D LGJ-18E LGJ-18T
There are other series model:LGJ-10 series,LGJ-12 series,LGJ-12S series,LGJ-18S series,etc.
Please contact us for more information on the above models.
