NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer

  • Vacuum Drying Equipment

  • 4kg

  • Medicine Processing, Chemicals Processing, Food Processing

  • New

  • China

  • Nade

  • 220V 50HZ

  • 1.4KW

  • 580*500*720mm

  • CE Certificate

  • Easy to Operate

  • 1 Year

  • No service

  • laboratory

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Other

  • 0.08m^2

  • 3-4Kg/24h

  • <5Pa(no load)

  • <-56℃,optional≤-80℃

  • dia.180mm

  • 3pcs

  • 70mm

  • 240mm,dia.220mm

  • 0.8L(thickness 10mm)

  • 62kg

Product Description

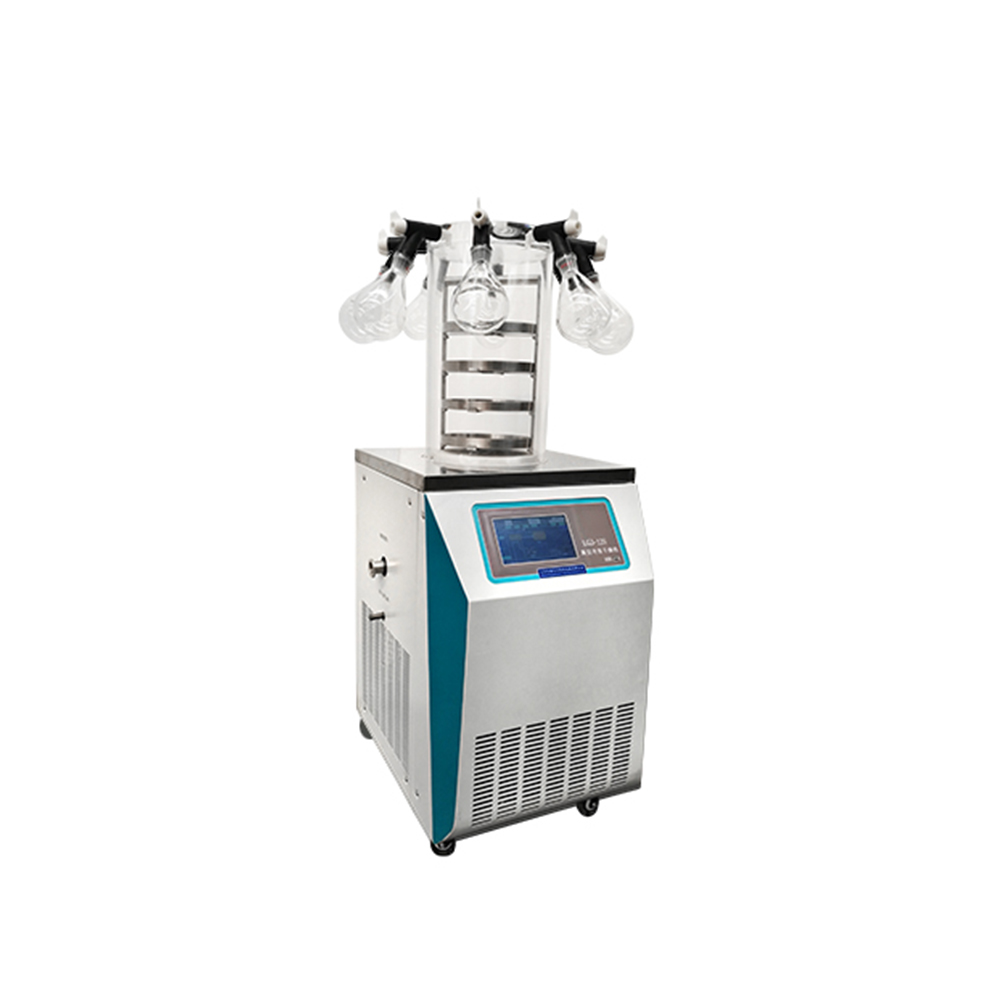

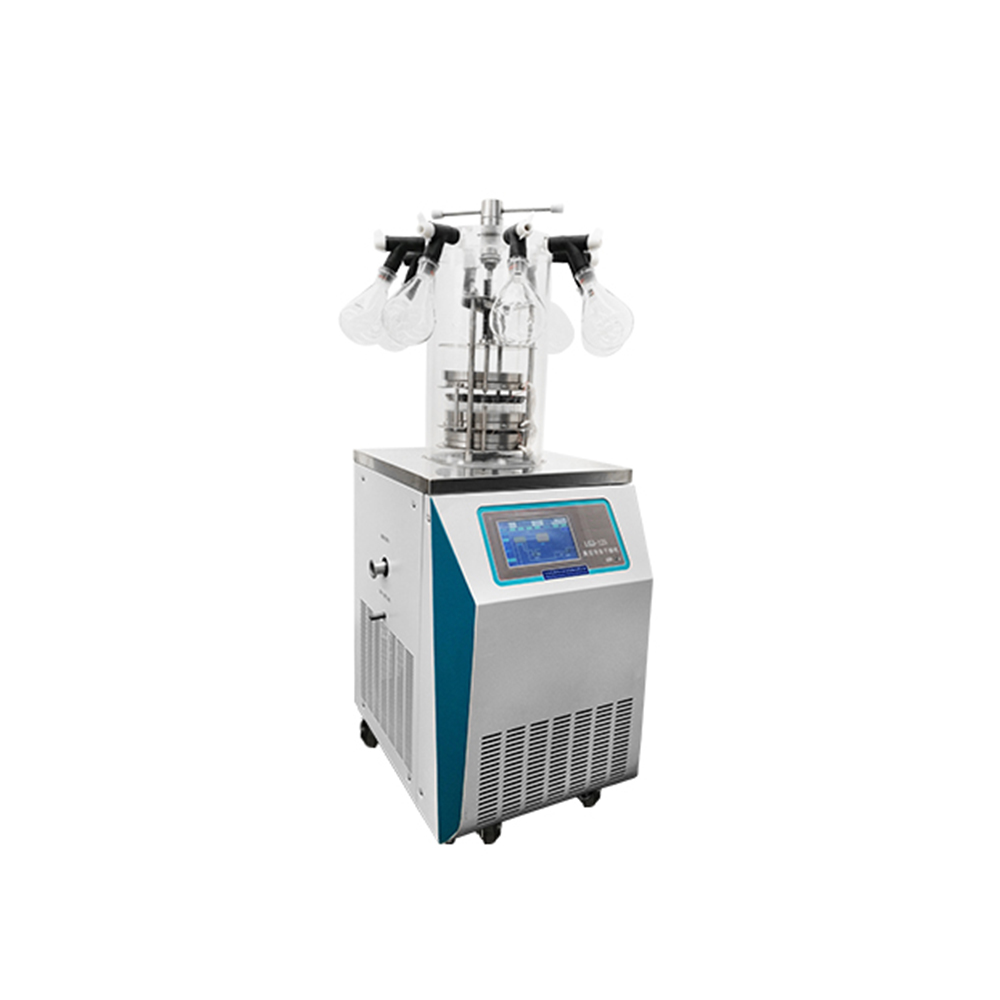

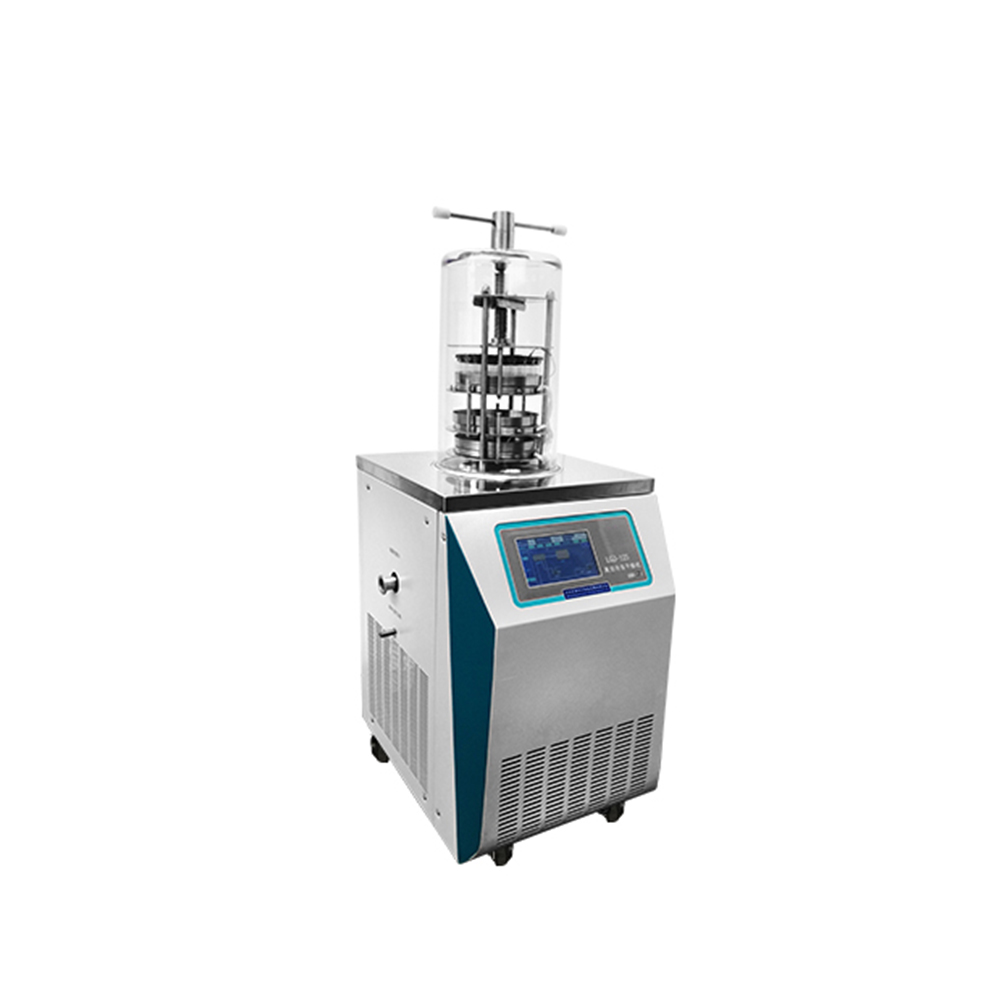

NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer

Product Description

LGJ-12SB Top Press Type Experimental Electric-heating Freeze Dryer is widely used in medicine,pharmacy,biology research,chemical industry and food production,etc.After the freeze drying process,along term preservation is much easier.They can be restored to the original state and mantain their chemical and biological characteristics after being watered.This model is suitable for experiment in laboratory and small amount production ,and it can meet the regular freeze dying requirements of the most laboratories.

Applications:

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying after the vials' lids covered untightly. The capping device compacts the vials' lids to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer

Feature

1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. world- known brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

12. The shelf electric heating safety .The control systemvoltage (36V) temperature can control the heating rate.

13. Flexible manual + automatic control method, manual exploration process, automatic batch production.

14. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.

15. You can set the user level and password, decentralized operation management.

16. Powerful sensor calibration function ensures the long term accuracy of the measured value.

Specification

Model

LGJ-12SB

Specification

Top Press Type(electric-heating)

Freeze drying area

0.08m^2

Material tray dia.

dia.180mm

No. of tray

3pcs

Tray spacing

70mm

Cold trap temperature

≤-56C,optional≤-80℃

Cold trap dept

240mm

Cold trap dia.

dia.220mm

Ice collecting capacity

3-4kg/24h

Pumping speed

2L/S

Ultimate vacuum

≤5pa

Power

1400w

Weight

62kg

Overall dimensions

580*500*720mm

-80℃ overall dimensions

770*550*720mm

Drying chamber size

dia.260*470mm

Cooling mode

wind cooled

Defrosting mode

air cooled

Shipping capacity

0.8L(thickness 10mm)

Loaded vials

dia.12mm

492pcs

dia.16mm

279pcs

dia.22mm

147pcs

Optional accessories and functions

·cold trap temperature -80℃

eutectic point tester

·vacuum pump anti-returned oil device

·cold trap electrical heat defrosting

·oil mist filter system

Vacuum adjustment system

LYO-MEGA Software System

.air filter

·imported vacuum pump

NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer

other models:

NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-12SB Top Press Type Experimental Electric Vacuum Laboratory Lyophilizer/freeze drying equipment/freeze dryer

LGJ-12SA LGJ-12SC LGJ-12SD

There are other series model:LGJ-10 series,LGJ-12 series,LGJ-18 series,LGJ-18S series,etc.
