NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

  • Vacuum Drying Equipment
  • 3kg
  • Medicine Processing, Chemicals Processing, Food Processing
  • New
  • China
  • Nade
  • 970W
  • 580*500*720mm
  • CE Certificate
  • Long Service Life
  • 1 Year
  • 62
  • No service
  • Manufacturing Plant, Food & Beverage Factory
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Motor
  • 0.08㎡
  • 70mm
  • dia.180mm
  • 3pcs
  • ≤-56℃,optional≤-80℃
  • ≤5Pa
  • 140mm,dia.215mm
  • 3-4kg/24h
  • 2L/S
  • 0.8L(thickness 10mm)

Product Description

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

Product Description

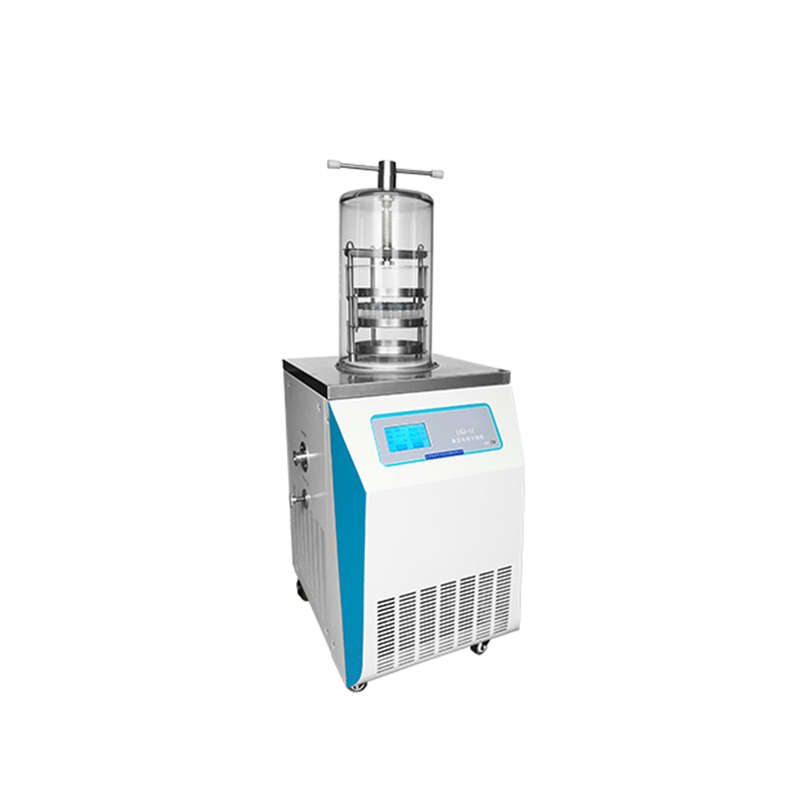

LGJ-12B Top Press Type Experimental Freeze Dryer is widely used in medicine,pharmacy,biology research,chemical industry and food production,etc.After the freeze drying process,along term preservation is much easier.They canbe restored to the original state and mantain their chemicaland biological characteristics after being watered.This model is suitable for experiment in laboratory and small amount production ,and it can meet the regular freeze dying requirements of the most laboratories.

Applications:

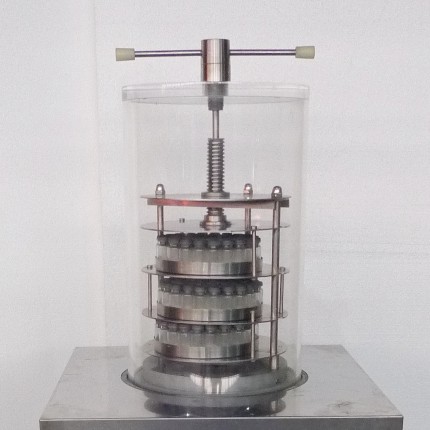

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying after the vials' lids covered untightly. The capping device compacts the vials' lids to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

Feature

1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. World- known brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. ntelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

Specification

Model

LGJ-12B

Specification

Top Press Type

Freeze drying area

0.08m^2

Material tray dia.

dia.180mm

No. of tray

3pcs

Tray spacing

70mm

Cold trap temperature

≤-56C,optional≤-80℃

Cold trap dept

140mm

Cold trap dia.

dia.215mm

Ice collecting capacity

3-4kg/24h

Pumping speed

2L/S

Ultimate vacuum

≤5pa

Power

970w

Weight

62kg

Overall dimensions

580*500*720mm

-80℃ overall dimensions

770*550*720mm

Drying chamber size

dia.260*490mm

Cooling mode

wind cooled

Defrosting mode

air cooled

Shipping capacity

0.8L(thickness 10mm)

Loaded vials

dia.12mm

492pcs

dia.16mm

279pcs

dia.22mm

147pcs

Optional accessories and functions

·cold trap temperature -80℃

·vacuum pump anti-returned oil device

·cold trap electrical heat defrosting

·oil mist filter system

·imported vacuum pump

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

other models:

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

LGJ-12A LGJ-12C LGJ-12D

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

LGJ-12E LGJ-12T

There are other series model:LGJ-10 series,LGJ-12S series,LGJ-18 series,LGJ-18S series,etc.

Please contact us for more information on the above models.

Packaging & Shipping

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

Company Information

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

NADE LGJ-12B Top Press Type Lab Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid and he vials materials

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.

Please send your request details to us by clicking "send" at the bottom!
