NADE TF-FD-27 Minitype gland type Laboratory Lyophilizer/freeze drying equipment/freeze dryer

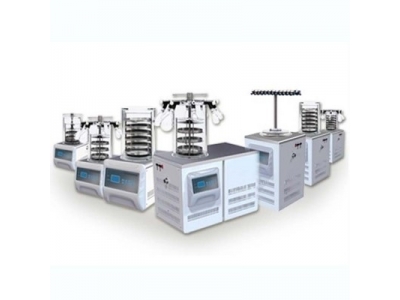

The laboratory lyophilizer series include ordinary type, cover type, branch manifold type, and T fixture, which are suitable for the freeze drying thermosensitive substances, such as serum, plasma, antibody, vaccines, drugs and microorganism, the plant extracting for bioresearch, and drying nano-particles, colloid, power, foods, plants and cultural relics in non-biological field.
The full name of the lyophilizers are freeze dryer, also called refrigerated dryer. They can be sorted into two fields: laboratory and industry according to application.
The TF-FD laboratory lyophilizers series are in the field of the biological laboratory products. The freeze-drying technology is mainly be used in the drug production of serum, plasma, vaccine, enzyme, antibiotic, hormone, etc. The freeze-drying technology can be used in the medicine inspection of biochemistry, immunology and bacteriology. It can also be used in blood, bacteria, artery, skeleton, skin, cornea, nerve tissues, the long-stem storage of organs, etc.
The equipment is adopted with imported all-seal refrigerant compressor with low temperature and high capturing water capability. The machine can be cooled down by air, instead of water.
Vacuum connection is adopted with international standard parts, which is easy to dismantle or install and has reliable sealing performance.
Cold trap temperature and sample vacuum are both used LED digital to display, which is brief and clear.
The touching soft key which is specifically designed can set various functions fast and accurately. The operation is easy and convenient.
The transparent bell-type drying room is natural heating, safe and visual.
The stainless steel sample holder is designed specially. Normal sample tray is space adjustable and the layers can be set freely.
The stainless steel cold trap and mesa is clean, hygeian, beautiful and corrosion resistant.
1.1 Model TF-FD-27(gland type)
1.2 Condensing Temperature <-80℃
1.3 Vacuum <15Pa(no load)
1.4 Freeze-dried Area 0.11m2
1.5 Capturing Water Capability 6Kg/24h
1.6 Sample Plate Φ220mm×3 layers
1.7 Power Supply Requirements 220V 50Hz
1.8 Power 2200W
1.9 Dimension 1200mm×550mm×880mm (not include drying room)
