Vacuum Drying Equipment
4kg
Medicine Processing, Chemicals Processing, Food Processing
New
China
Nade
220V 50HZ
0.97W, 1.6KW
615*450*370mm
CE Certificate
Easy to Operate
1 Year
Online support
No service
laboratory
None
None
Ordinary Product
Provided
Not Available
1 Year
Other
0.08m^2
<5Pa
3-4kg/24h
≤-56℃,optional≤-80℃
dia.180mm
3pcs
140mm,dia.215mm
air cooled
0.8L(thickness 10mm)
Product Description

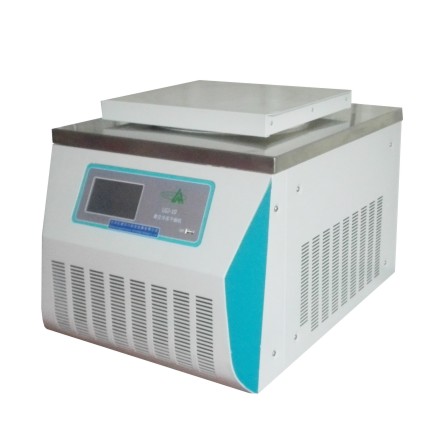

NADE LGJ-10B Top Press Type benchtop Laboratory Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid
appearance have been updated to below picture:
LGJ-10B Top Press Type benchtop Lab Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.This model is suitable for experiment in laboratory and can meet the regular freeze drying requirments of the most laboratory.
Applications:
This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying after the vials' lids covered untightly. The capping device compacts the vials' lids to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
1. All-in-one structure , small size, no external flange, easy to use, no leakage.
2. All materials in contact with the product use inert materials to meet the requirements of the GLP.
3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6. Patented gas diversion technology, and strong ice holding ability.
7. World- known brand compressors, high efficiency, long life, low noise.
8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.
| Model | LGJ-10B | |
| Specification | Top Press Type | |
| Freeze drying area | 0.08m^2 | |
| Material tray dia. | dia.180mm | |
| No. of tray | 3pcs | |
| Tray spacing | 70mm | |
| Cold trap temperature | ≤-56C,optional≤-80℃ | |
| Cold trap dept | 140mm | |
| Cold trap dia. | dia.215mm | |
| Ice collecting capacity | 3-4kg/24h | |
| Pumping speed | 2L/S | |
| Ultimate vacuum | ≤5pa | |
| Power | 970w | |
| Weight | 41kg | |
| Overall dimensions | 615*450*370mm | |
| -80℃ overall dimensions | 850*680*405mm | |
| Drying chamber size | dia.260*490mm | |
| Cooling mode | wind cooled | |
| Defrosting mode | air cooled | |
| Shipping capacity | 0.8L(thickness 10mm) | |
| Loaded vials | dia.12mm | 492pcs |
|
| dia.16mm | 279pcs |
|
| dia.22mm | 147pcs |
Optional accessories and functions
·cold trap temperature -80℃
·vacuum pump anti-returned oil device
·cold trap electrical heat defrosting
·oil mist filter system
·imported vacuum pump
other models:
There are other series model:LGJ-12 series,LGJ-12S series,LGJ-18 series,ND-18S series,etc.
Please contact us for more information on the above models.
