MX-M Mixing Equipment MicroPlate Mixer

Shaking movement:Orbital
Orbital diameter:4.5mm
Max. shaking weight (with accessory):0.5kg
Motor type:Brushless DC motor
Availability:
  • MX-M

  • NADE

  • MX-M

  • 100~120V /200~240V,50/60HZ

  • 1

  • 1 year

  • China

Product Description

Nade Lab Scientific Mixing Equipment  MicroPlate Mixer MX-M  0-1500rpm

Microplate mixer is used for holding single or double microplates. The compact shape of MX-M microplate mixer occupies less bench space and makes the storage easier. It is widely used in life science including microbiology, cell and molecular biology, immunology and biotechnology




Features

1. Wide range of speed from 0 to 1500 rpm (Double microplate: 0-1000 rpm)
2. Excellent performance with electronic speed control
3. High speed and effective mixing for microplates
4. With adapters for most popular vessels and microtiter plates
5. Used for various mixing applications with optional adapters
6. Maintenance-free brushless DC motor

Specifications

Voltage [VAC]

100-240

Frequency[Hz]

50/60

Power[W]

20

Shaking movement

Orbital

Orbital diameter[mm]

4.5

Max. shaking weight(with attachments)[kg]

0.5

Motor type

External rotor brushless motor

Motor rating input[W]

18

Motor rating output [W]

10

Speed range[rpm]

0-1500

Speed display

Scale

Dimensions[mm]

260×150×80

Weight[kg]

3

Permissible ambient temperature [°C]

5-40

Permissible relative humidity

80%

Protection class acc. to DIN EN60529

IP21

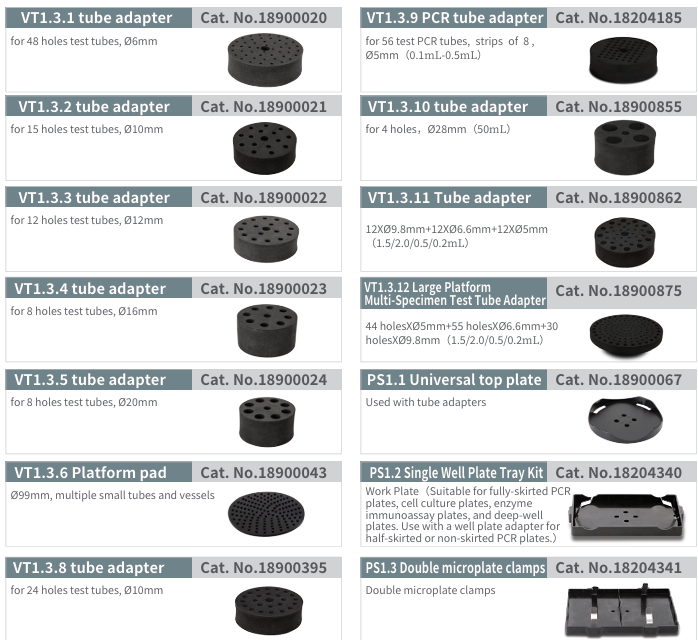

Accessories

屏幕截图 2025-07-28 113442
