1 year
Laboratory Thermostatic Devices
other
Nade
HNY-111B
China
188L
650W
10℃-35℃
one
ambient +5°Cto 60°C(No refrigeration)
HNY-111B
0-999H
convolution
P.I.D microprocessor chip
forced convection
Product Description

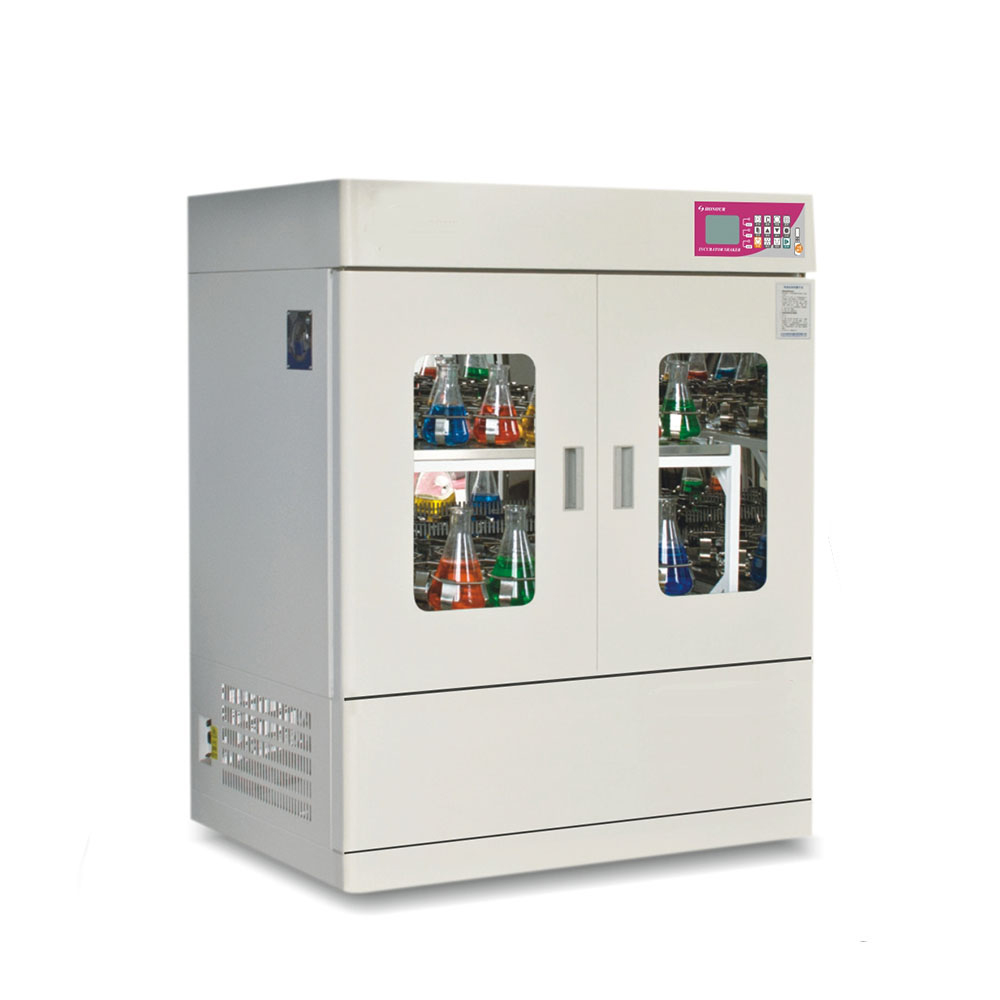

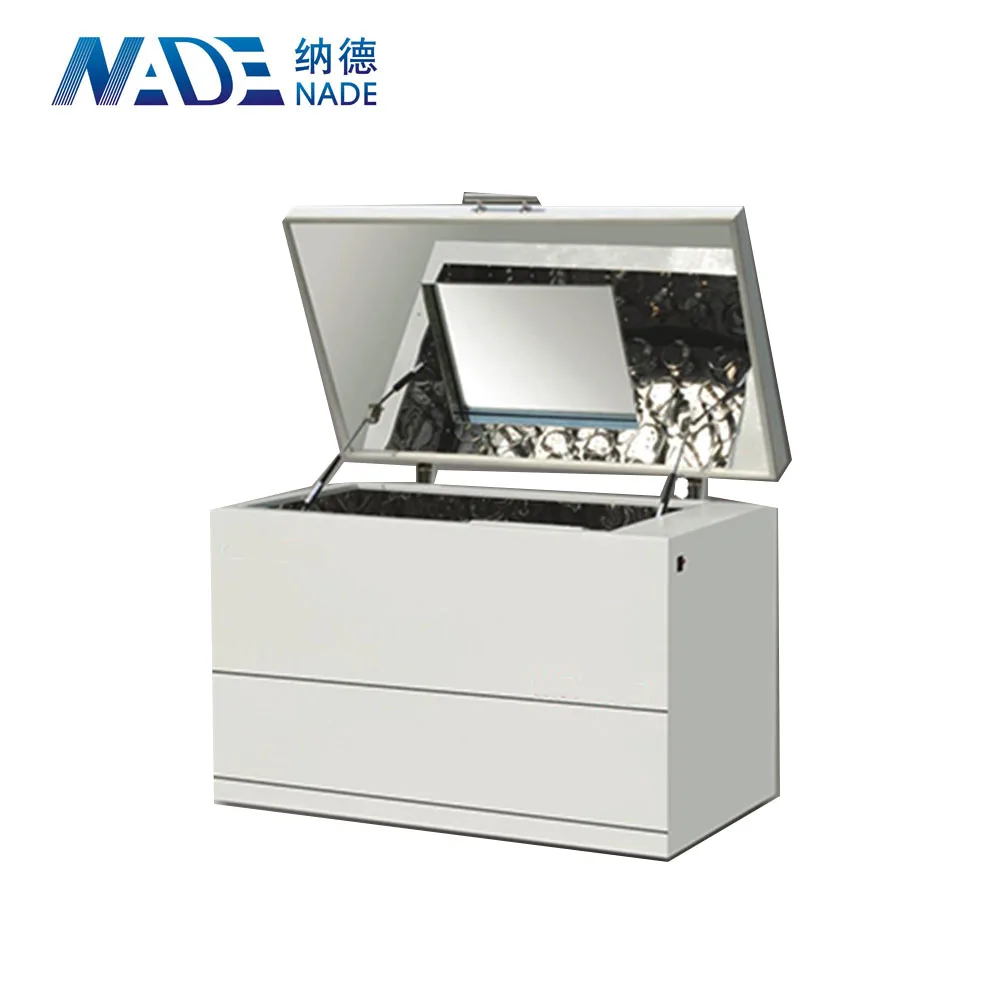

Nade Thermostatic Shaking Incubator oscillator constant temperature shaker HNY-111B
1,Advanced USB data automatic record, download and processing system. As well as it has large storage, and automatic recording & saving in the full test processing,
2,The data could be directly downloaded by USB in a minute or automatically downloaded by wireless, without the hassle of moving computers and replacing printing papers.
3, Automatic analyzing, listing table, charting and printing on downloaded dates. Easy replay the data by clicking the mouse; it can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
4, Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation (touch screen only).
5, The ultra low speed starts, startup speed is adjustable. If the speed out of control, it will be locked automatically.
6,Adjustable closed cycle heating & cooling systems are controlled electronically. Both consistent temperature and temperature evenness are ensured by the mute fan, forced convection and the duct design.
7, The mode of cooling is automatic which can automatically switch opening or closing of the refrigeration system according to the changes of environment temperature. It is without manual operation.
8,The technology of smart refrigeration frost-free operation can make the equipment stably operate in low temperature for a long time and; and it has automatic defrost function.
9, high-precision speed control: PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
10,high-precision temperature control: PID feedback control, the measurement accuracy of 0.1 ° C, the measured temperature deviation from the set value ≥ ± 3 ° C, audible and visual alarm
11,Unique drive system makes the machine running smoothly, stably, durably and reliably.
12,Intelligent sound and light alarm environmental scanning micro-processing controller, the machine has the functions of automatic stop protection by opening the door, self-diagnostic, and security alarm.
13,Big backlight LCD screen with Chinese subtitles, man-machine dialogue prompts, and displaying measured values, settings and machine operation.
14,The operating parameters can be memorized and protected. Unexpected power outage, the original set-up process can be automatically resumed.
15,The operating parameters are encrypted and locked, which can avoid human errors. The machine has the functions of Light and ultraviolet disinfection.
16,Automatic power protection devices when the motor is overheating or the temperature is out of control
17,The machine can run continuously or be timing. It can display the set time and time remaining
18,A unique slow-start design, preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
19,Three layers structure, over an area of an area small, the large using space.
20,Each layer can be independently controlled. Temperature, speed and time can be set alone. Users can run any layer according to need.
21,Clock and date can be displayed (touch screen only).
Note: stackable incubator shaker would be optional high temperature incubator shaker (temperature up to 80 ℃); Light incubator shaker; Humidifying incubator shaker.
| model | HNY-111B
|
| specifications | |
| control model | P.I.D microprocessor chip |
| convection model | forced convection |
| shake model | convolution |
| display | LCD liquid-crystal display |
| Drive mode | Unidimensional drive |
| system of USB data download and analysis | yes |
| control system | 30 segments temperature, speed, time, control system |
| cyclotron frequency range(rpm/min) | 0;20-300(To do static culture) |
| cyclotron frequency sensitivity(rpm) | ±1 |
| Orbit Diameter(mm) | Φ26 |
| maximum capacity | 100ML×66 OR 250ML×54 OR 500ML×28 OR 1000ML×15 OR 2000ML×11 |
| standard capacity | 500ML×28 |
| size of platform(mm) | 920×500 |
| timing range(h) | 0-9999h/min(Any time,continuous duty) |
| temperature range(℃) | ambient +5°Cto 60°C(No refrigeration) |
| temperature sensitivity(℃) | ±0.1 |
| temperature uniformity(℃) | ≤0.3(37℃) |
| temperature uniformity(℃) | ≤0.1(37℃) |
| number of platform | one |
| outside dimension(W*D*H)(mm) | 1200×760×880 |
| capacity(L) | 188 |
| power(W) | 650 |
| power supply | AC220±10%50-60HZ |
| outside temperature(℃) | 5-25 |
| Net weight(kg) | 170 |
| Gross weight(kg) | 210 |
| other functions | ultra-low speed start, adjustable start speed, overspeed auto-prtection, watch dog timer, parameters Storage, encryption parameters, electricity incoming recovery, refrigeration unit overload protection, sound and light alarm when upper and lower overtemperature, automatically stop when opening the door (optional), function of lighting and UV disinfection (optional) |
