SK-O330-Pro Lab LCD display Digital Orbital Shakers

Orbital diameter:10mm
Max. load capacity (with platform)7.5kg
Motor type:Brushless DC motor
Speed range:100-500rpm
Availability:
  • SK-O330-Pro

  • NADE

  • SK-O330-Pro

  • 100V-240V,50Hz/60Hz

  • 1

  • 1 year

  • China

Product Description


Introductions

Orbital Digital Shakers provide smooth and quiet motions for mixing in culture dishes, flasks and beakers.

NADE Lab LCD display Digital Orbital Shakers SK-O330-Pro speed range 100-500rpm for mixing in culture dishes, flasks and beakers




Features

Features:



1. Compact, orbital shakers with ideal shaking motion, for a maximum shaking weight of 7.5kg and 2.5kg

2. LCD displays speed and timer. Speed, timer and operating mode can be viewed simultaneously- Wide range of platforms for use with a variety of vessels

3. Electronic time switching clock controls time or continuous operation mode

4. DC brushless motor, long service life and maintenance free

5. Over speed detection and protection

6. Free software Shaker PC, computer can control and document all operation values via RS232 interface


Specifications

Model

SK-O330-Pro

Voltage[VAC]

100-240

Frequency[Hz]

50/60

Power[W]

30

Shaking motion

Orbital

Orbital diameter[mm]

10

Max. load capacity (with platform) [kg]

7.5

Motor type

DC brushless motor

Motor rating input[W]

28

Motor rating output[W]

15

Speed range[rpm]

100-500(Orbital)

Speed display

LCD

Timer

Yes

Timer display

LCD

Time setting range[min]

1-1199

Operation type

Continuous / timed operation

Dimensions[W×H×D mm]

420×370×100

Weight[kg]

13.5

Permissible ambient temperature[]

5-40

Permissible relative humidity

80%

Protection class acc. DIN EN60529

IP21

RS232 interface

Yes

Standard configuration:

SK-O330-Pro: Orbital Digital Shaker, without fixing clamp, including a platform 18900155,

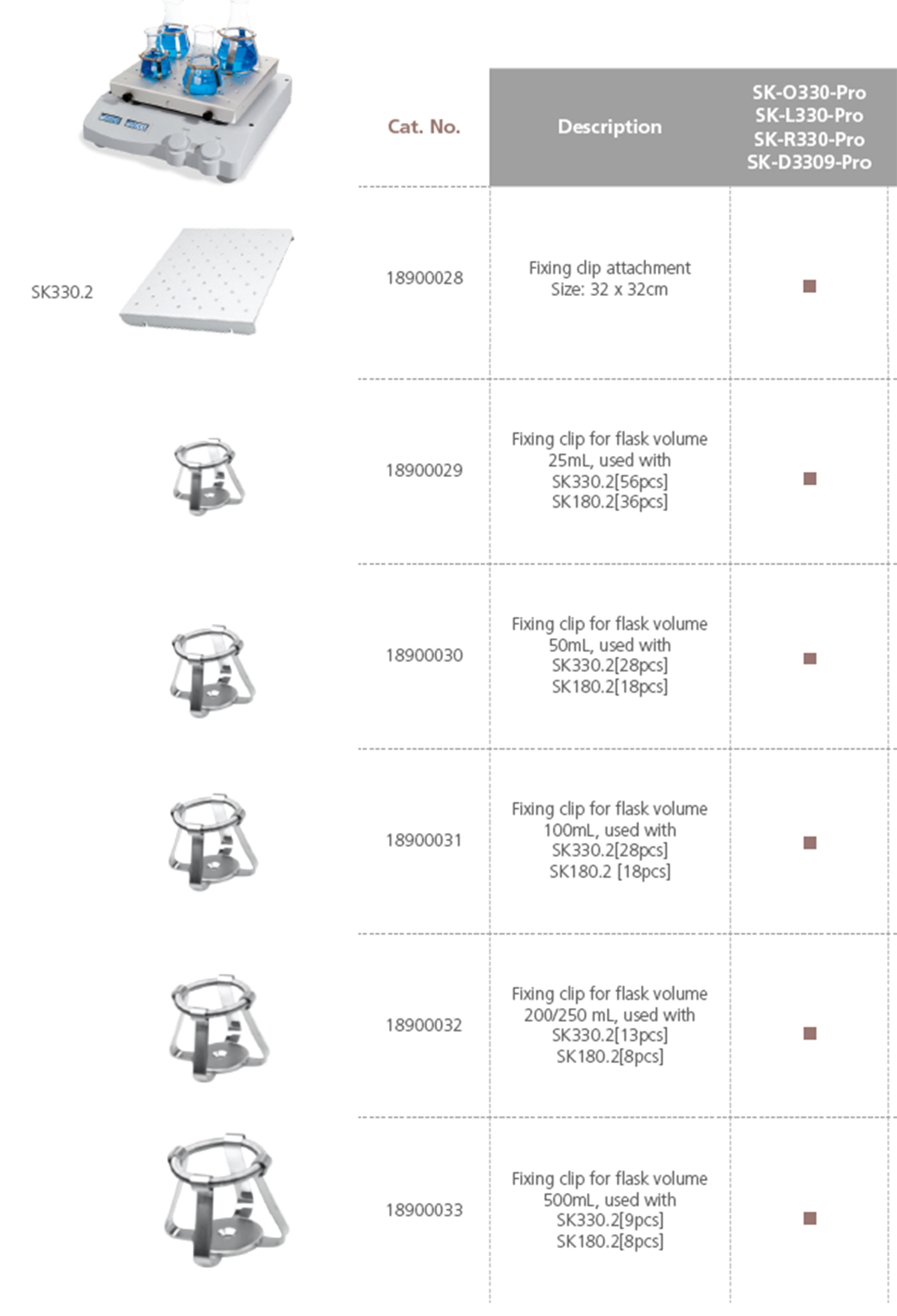

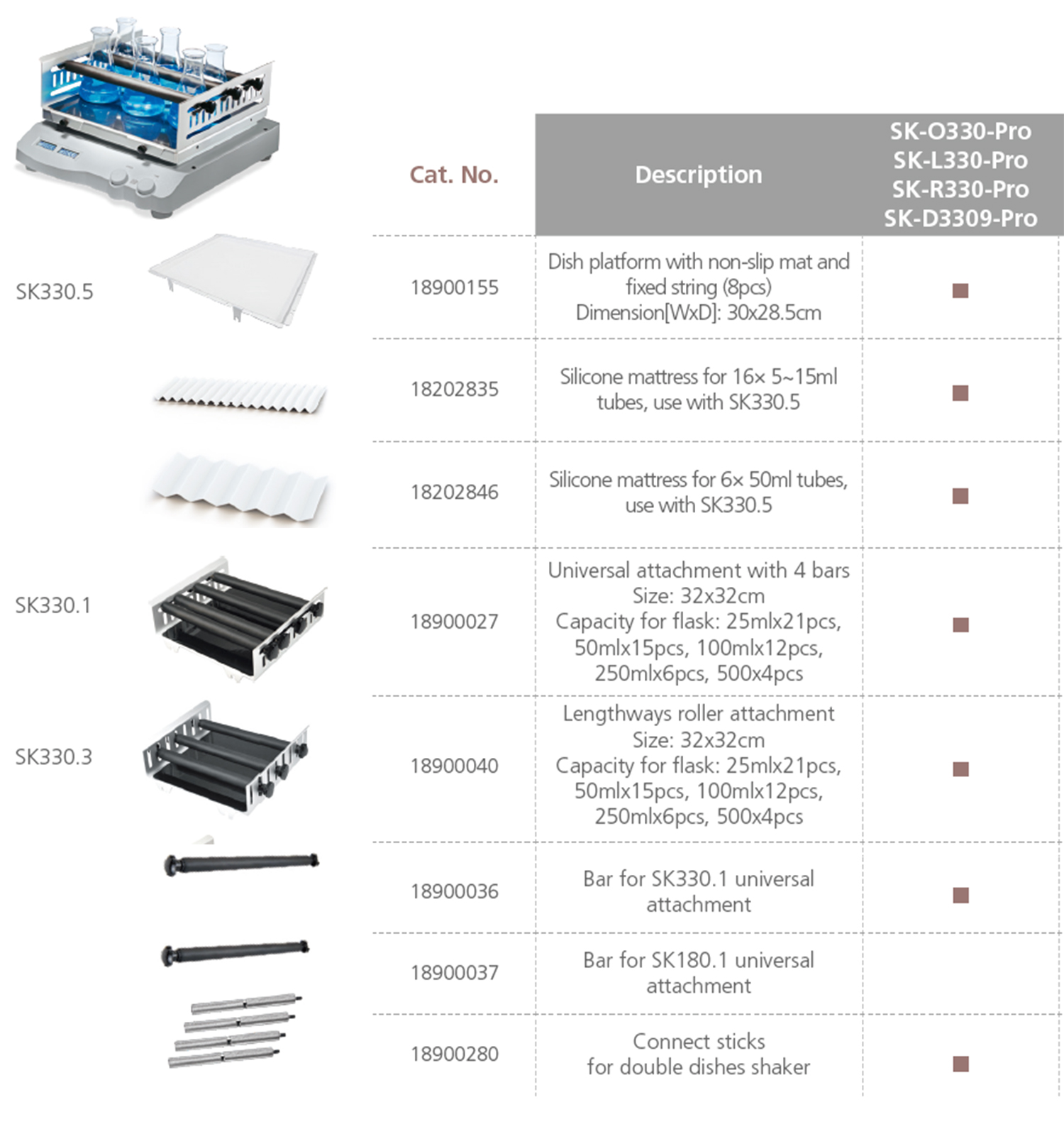

Accessories

Optional accessories


For model SK-O330-Pro/SK-L330-Pro

Number

Model

Description

18900027

SK330.1

Universal attachment with 4 bars

18900028

SK330.2

Fixing clip attachment

18900040

SK330.3

Length ways roller attachment

18900155

SK330.5

Dish platform with non-slip mat and fixed string(8 pcs)

18900036

SK330.3

Bar for SK330.1 Universal attachment, black

18900029

SK330.2.1

Fixing clip for flask volume 25 ml

18900030

SK330.2.2

Fixing clip for flask volume 50 ml

18900031

SK330.2.3

Fixing clip for flask volume 100 ml

18900032

SK330.2.4

Fixing clip for flask volume 200/250 ml

18900033

SK330.2.5

Fixing clip for flask volume 500 ml


Accessory details:

NADE Lab LCD display Digital Orbital Shakers SK-O330-Pro speed range 100-500rpm for mixing in culture dishes, flasks and beakers   NADE Lab LCD display Digital Orbital Shakers SK-O330-Pro speed range 100-500rpm for mixing in culture dishes, flasks and beakers
