Product Description

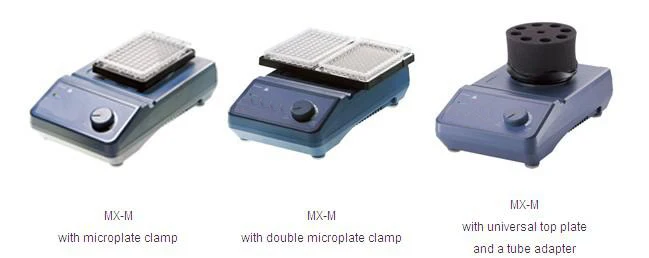

NADE Adjustable Speed Tube and Microplate Mixer MX-M
Microplate mixer is used for holding single or double microplates. The compact shape of MX-M microplate mixer occupies less bench space and makes the storage easier. It is widely used in life science including microbiology, cell and molecular biology, immunology and biotechnology.
A wide range of speed from 0 to 1500rpm.
Used for various mixing applications with optional adapters.
Maintenance-free brushless DC motor.
| Model | MX-M |
| Voltage[VAC] | 100-240 |
| Frequency[Hz] | 50/60 |
| Power[W] | 60 |
| Shaking movement | Orbital |
| Orbital diameter[mm] | 4.5 |
| Max shaking weight(with accessory)[kg] | 0.5 |
| Motor rating input[W] | 18 |
| Motor rating output[W] | 10 |
| Speed range[rpm] | Single microplate: 0-1500rpm Double microplate: 0-1000rpm |
| Speed display | Scale |
| Dimensions[W×H×D mm] | 260×150×80 |
| Weight[kg] | 3 |
| Permissible ambient temperature[℃] | 5-40 |
| Permissible relative humidity | 80% |
| Protection class acc. DIN EN60529 | IP21 |
MX-M can also mix tube with more accessories for tube shaking.
