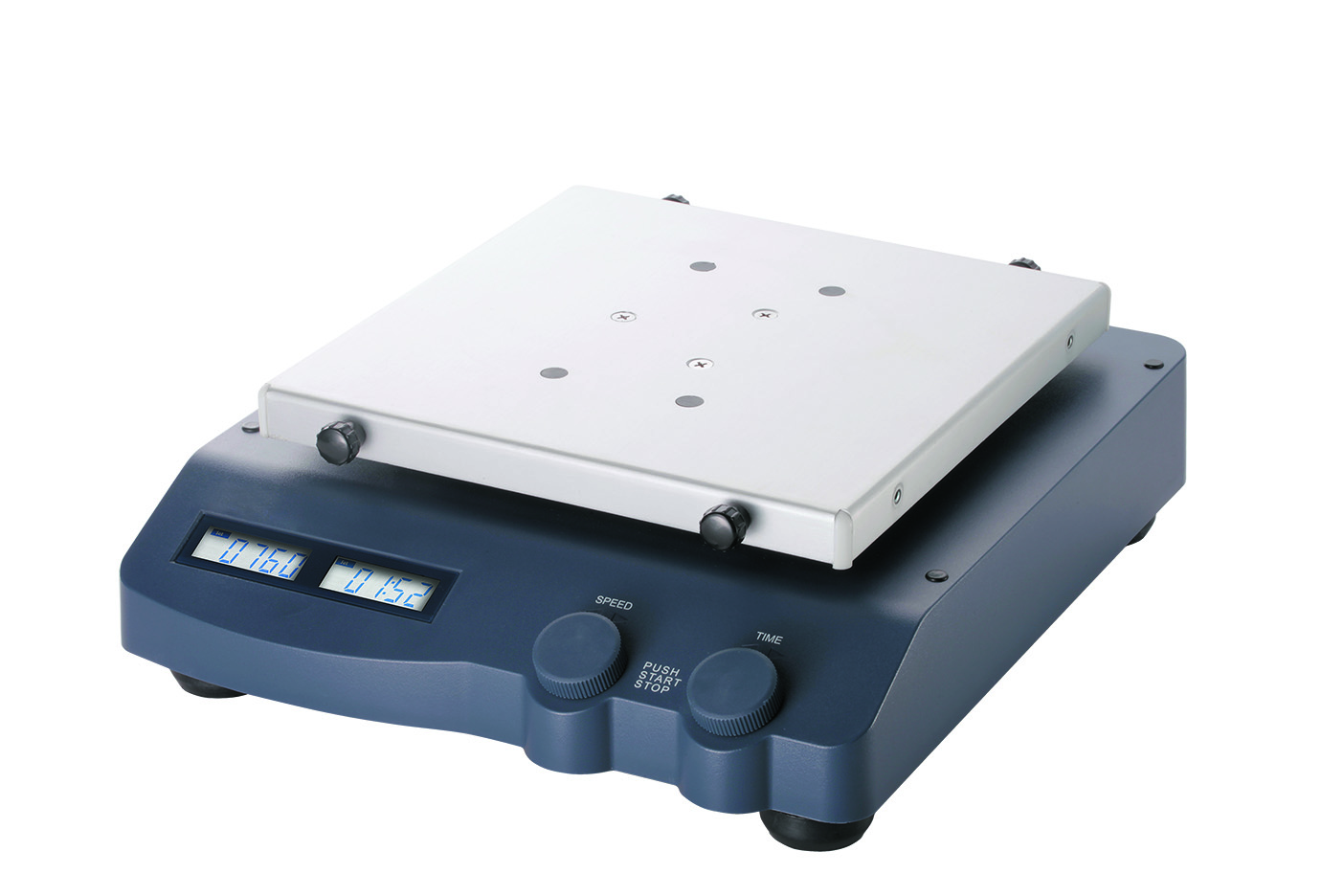

SK-L180-Pro Lab LCD Digital Linear Shakers

Amplitude:4mm
Max. load capacity (with platform):2.5kg
Motor type:Brushless DC motor
Speed range:100-350rpm
Availability:
  • SK-L180-Pro

  • NADE

  • SK-L180-Pro

  • 100V-240V,50Hz/60Hz

  • 1

  • 1 year

  • China

Product Description


Introductions

Linear Digital Shakers provide smooth and quiet motions for mixing in culture dishes, flasks and beakers.

NADE Lab LCD Digital Linear Shakers SK-L180-Pro diameter 4mm speed range 100-350rpm

Features

1. Compact,Linear shakers with ideal shaking motion, for a maximum shaking weight of  2.5kg

2. LCD displays speed and timer. Speed, timer and operating mode can be viewed simultaneously- Wide range of platforms for use with a variety of vessels

3. Electronic time switching clock controls time or continuous operation mode

4. DC brushless motor, long service life and maintenance free

5. Over speed detection and protection

6. Free software Shaker PC, computer can control and document all operation values via RS232 interface


Specifications


Model

SK-L180-Pro

Voltage[VAC]

100-240

Frequency[Hz]

50/60

Power[W]

30

Shaking motion

Linear

Orbital diameter[mm]

4

Max. load capacity (with platform) [kg]

2.5

Motor type

DC brushless motor

Motor rating input[W]

28

Motor rating output[W]

15

Speed range[rpm]

100-350

Speed display

LCD

Timer

Yes

Timer display

LCD

Time setting range[min]

1-1199

Operation type

Continuous / timed operation

Dimensions[W×H×D mm]

340×300×100

Weight[kg]

8.1

Permissible ambient temperature[]

5-40

Permissible relative humidity

80%

Protection class acc. DIN EN60529

IP21

RS232 interface

Yes


Standard configuration:

SK-L180-ProLinear Digital Shaker, without fixing clamp, including Petri dish holder 18900039

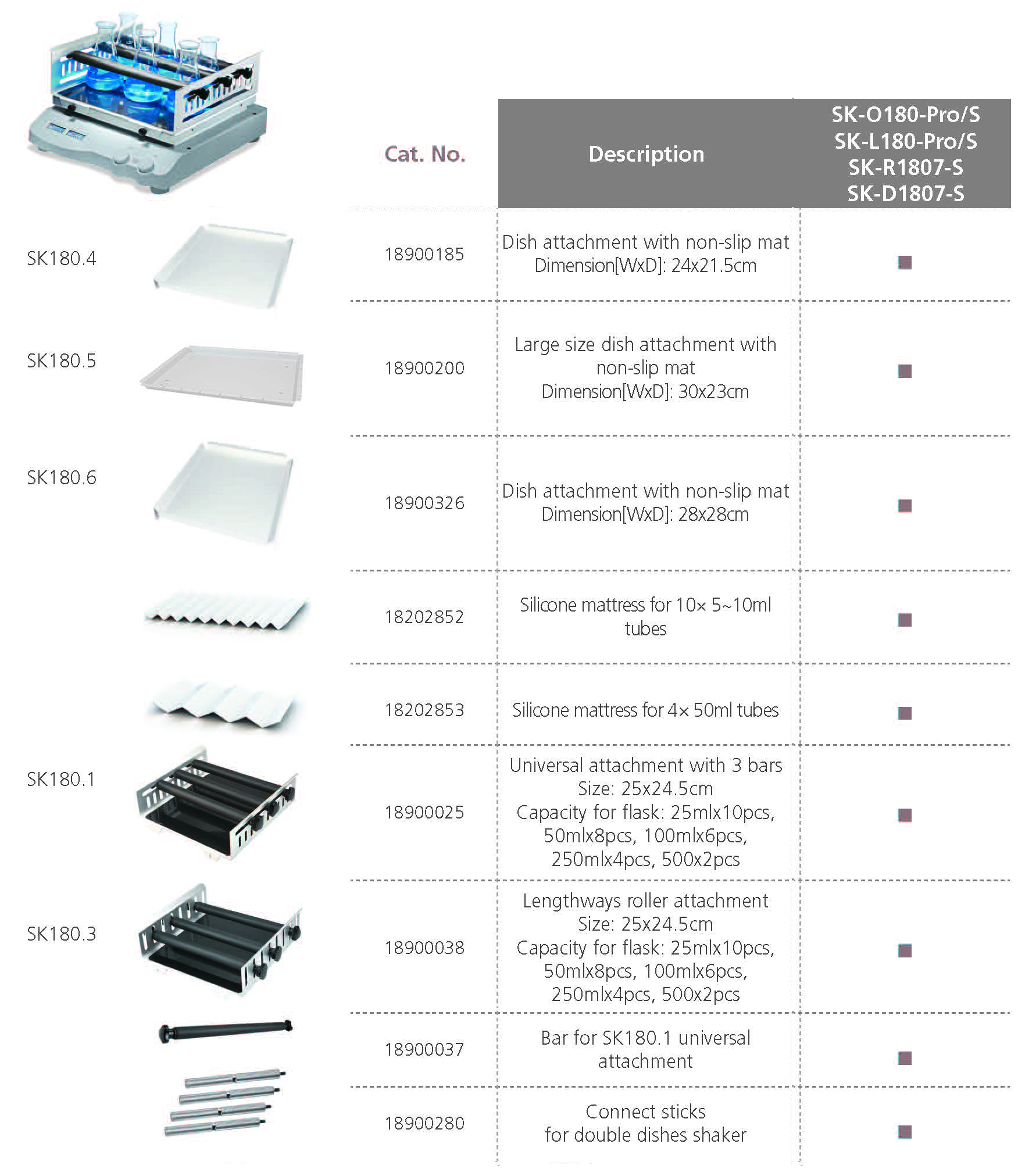

Accessories

Optional accessorie

For model SK-O180-Pro/SK-L180-Pro

Number

Model

Description

18900025

SK180.1

Universal attachment

18900038

SK180.3

Length ways roller attachment

18900039

SK180.4

Dish platform with non-slip mat

18900026

SK180.2

Fixing clip attachment

18900029

SK180.2.1

Fixing clip for flask volume 25 ml

18900030

SK180.2.2

Fixing clip for flask volume 50 ml

18900031

SK180.2.3

Fixing clip for flask volume 100 ml

18900032

SK180.2.4

Fixing clip for flask volume 200/250 ml

18900033

SK180.2.5

Fixing clip for flask volume 500 ml

18900037


Bar for SK180.1 Universal attachment, black


Accessory details:

NADE Lab LCD Digital Linear Shakers SK-L180-Pro diameter 4mm speed range 100-350rpm   NADE Lab LCD Digital Linear Shakers SK-L180-Pro diameter 4mm speed range 100-350rpm
