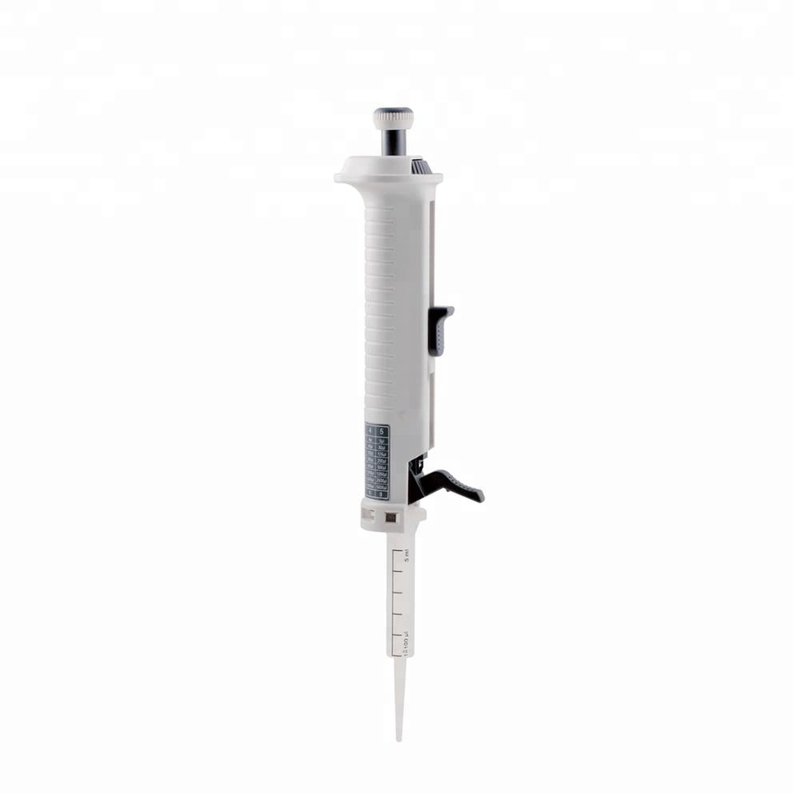

Step Mate Stepper Wide Dispensing

Application:Aqueous solution, high viscosity or volatile solution
Operation Method:Mechanical
Volume Range:0.5-50mL
Channel Option:Single channel
Availability:
  • StepMate

  • 1

  • 1 year

Product Description

  Positive-displacement, continuously adjustable, repetitive dispenser

Applications

Ideal for any application requiring repetitive dispensing in the biological, chemical, food and beverage, pharmaceutical industry.

Features

1,Slim, light and robust

2.Wide dispensing volume from 10μL to 5mL
3.Up to 48 dispensing steps in succession
4.Equipped with durable dispenser tip stop lever
5.Fits different sizes of disposable polypropylene dispenser tips from 0.5mL to 50mL

How to select dispensing volume

Find the required dispensing volume in the table.

Use the volume selection dial to set the required volume.
Select and insert a suitable dispenser tip. Follow the maximum dispensing steps as stated.

Precision Dispenser Tip

Dispenser tips are convenient for viscous or foaming solutions, volatile liquids and applications where repetitive dispensing of volumes in long series is required The dispenser tips are made from high quality materials without soft lubricants or other additives.

Specifications

Note:

The first and last dispensing liquid should be discarded for precision.

Dial setting
1
2
3
4
5



Number of steps
48
23
15
11
8



Cat.No.
dispenser tip volume
Dispensing volume per step
Systematic Error
Random Error
Description
mL
μL
%
%
17900032
0.50
10
20
30
40
50
±0.8
≤0.7
0.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
17900033
1.25
25
50
75
100
125
±0.8
≤0.5
1.25mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
17900034
2.50
50
100
150
200
250
±0.8
≤0.4
2.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
17900035
5.00
100
200
300
400
500
±0.4
≤0.3
5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
17900036
12.50
250
500
750
1000
1250
±0.3
≤0.3
12.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
17900037
25.00
500
1000
1500
2000
2500
±0.2
≤0.3
25mL, piston PE-HD, cylinder PP, 1 packing, 2 pcs/packing with 1 pc adapter
17900038
50.00
1000
2000
3000
4000
5000
±0.2
≤0.2
50mL, piston PE-HD, cylinder PP, 1 packing, 2 pcs/packing with 1 pc adapter
