1 year, 1 Year
other
Zhejiang, China
Nade
XT5107-DSC275
Electronic
XT5107-DSC275
275L
+5~65C
Drug stability test chamber
0.1-0.2
Horizontal
2/5
535x480x950
have
Product Description

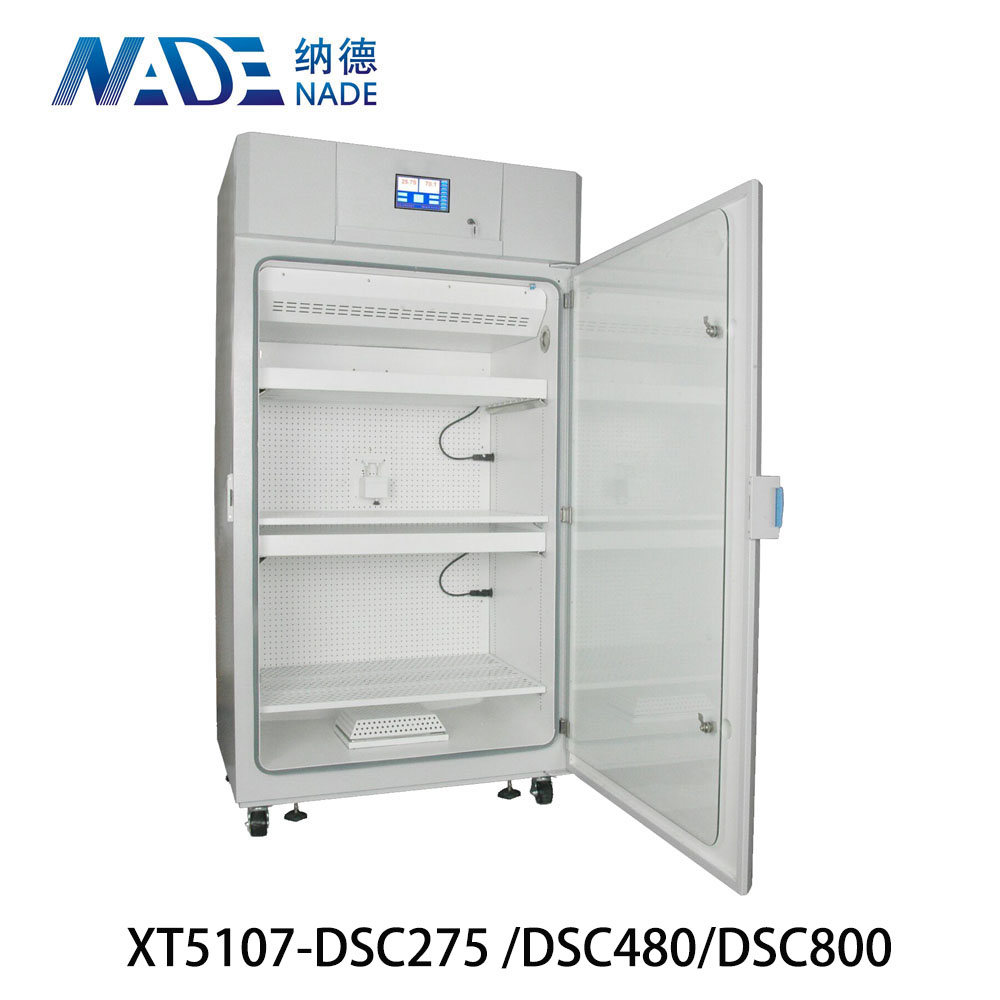

Nade Drug Stability/photostability test chambers XT5107-DSC275 275L +5~65C
Available with capacity of 275L, 480L, 800L and 1200L for varieties of applications
Full range of features to support ICH Q1A (R2) and Q1 B
Guidelines for temperature testing, humidity testing, accelerated testing, long term testing and, visualand UVA exposure testing.
1.New active substances, medical products and similar applications
2.Available with capacity of 275L, 480L, 800L and 1200L for varieties of applications
3.Full range of features to support ICH Q1A (R2) and Q1 B
4.Guidelines for temperature testing, humidity testing, accelerated testing, long term
testing and, visualand UVA exposure testing
5.Patented stepper valve hot gas by-passing and dynamic temperature and humidity
control forstability up to ±0.1 °C and ±2.0 %RH,for continuous reliable operation
6.7 in high resolution true color TFT touch screenfor data input for equipment
opera-tion, programming of temperature and humidity, alarm history and operating status,
in text, graphic symbols and curves .
7.Optional data acquisition and recording system meeting requirements for FDA, CFR21 Part
11Replacement for Binder KBF & KBF P, Memmert ICH L and MMM Climacell
8.Specifications:
| Models | XT5107-DSC275 | XT5107-DSC480 | XT5107-DSC800 | XT5107-DSC1200 |
| Effective capacity L | 275 | 480 | 800 | 1200 |
| Temperature range@20℃ | +5~+65 | +5~+65 | +5~+65 | +5~+65 |
| Temperature stability±℃ | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 |
| Temperature deviation ℃ | 1.0 | 1.0 | 1.0 | 1.0 |
| Humidity range(std)opt) | 40~95%RH | 40~95%RH | 40~95%RH | 40~95%RH |
| Humidity range(opt) %RH | 20~95 | 20~95 | 20~95 | 20~95 |
| Humidity stability ±%RH | 1~2 | 1~2 | 1~2 | 1~2 |
| Humidity deviation %RH | 3~5 | 3~5 | 3~5 | 3~5 |
| Heater wattage W | 450 | 450 | 950 | 950 |
| Cooling capacity@20℃ W | 250 | 350 | 500 | 800 |
| Interior size(WDH) mm | 535×480×950 | 635×560×1350 | 935×640×1350 | 1235×720×1350 |
| Overall size(WDH)mm | 640×660×1600 | 740×740×1972 | 1040×820×1972 | 1340×900×1972 |
| Air movement | Horizontal | Horizontal | Horizontal | Horizontal |
| Shelves (standard/maximum) | 2/5 | 3/7 | 3/7 | 3/7 |
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
