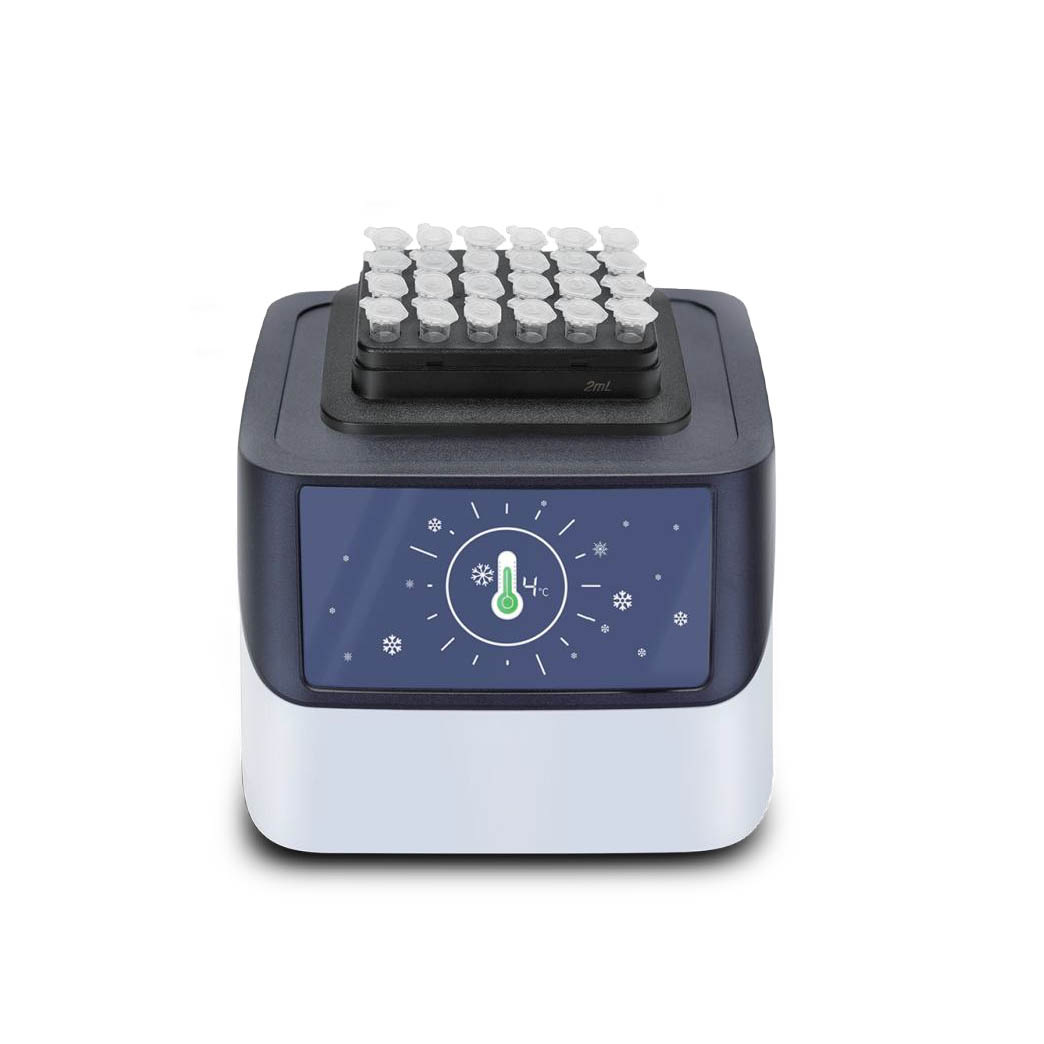

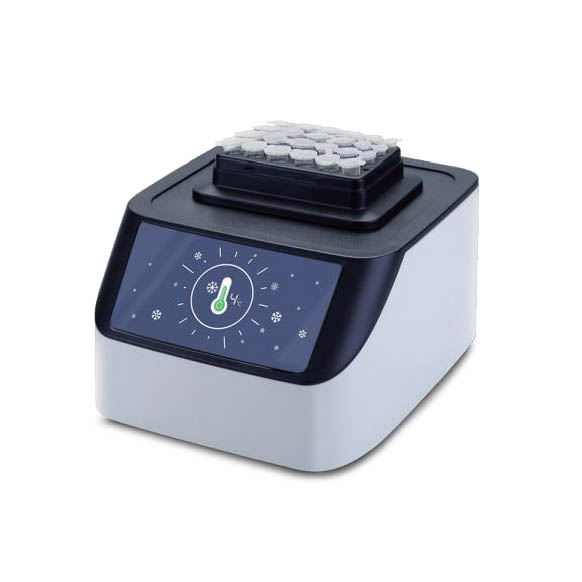

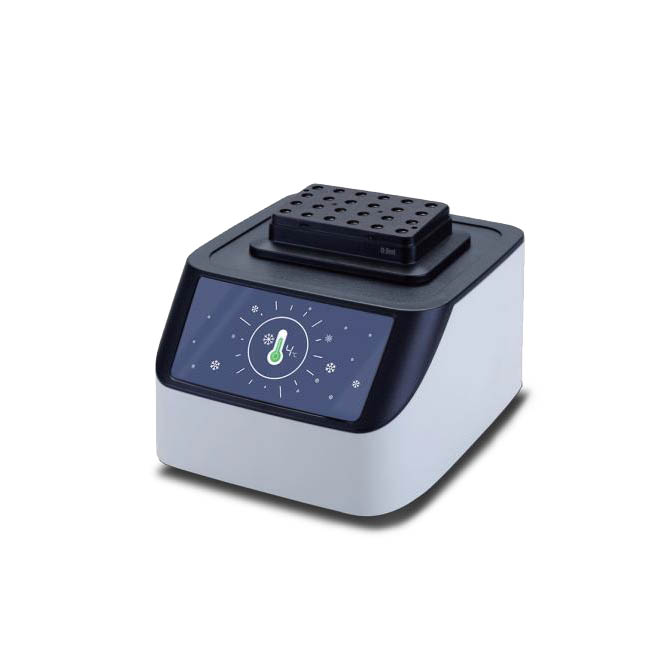

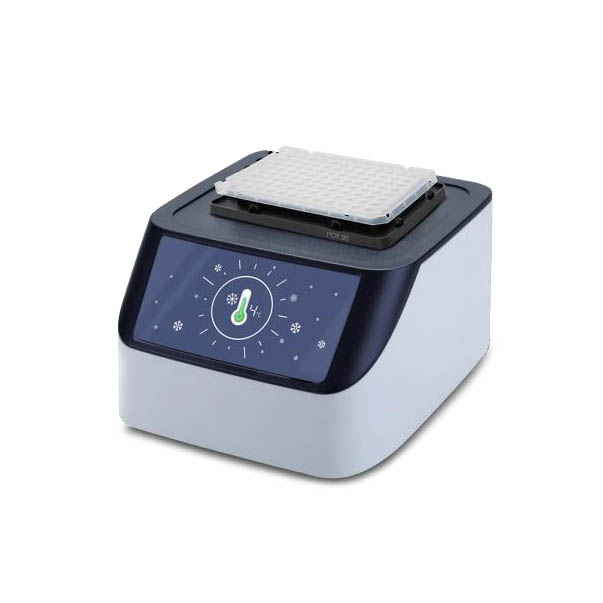

CT4-Pro 4℃ Thermostatic Ice Box

Functions: cooling
Temperature Control Setting: 4℃
Temperature Control Accuracy: ±0.5℃
Cooling Speed: ≤10min (depending on the module)
Availability:
  • CT4-Pro

  • NADE

  • 110V/220V; 50/60Hz

  • 1

  • OEM

  • 1 year

  • China

Product Description

CT4-Pro

CT4-Pro

4Thermostatic Ice Box

Features

Fast cooling rate and high stability;

High-efficiency Peltier precision temperature control with good homogeneity;

Multi-colour LEDs to indicate different operating status;

Built-in temperature deviation calibration function, module alert function;

Compact product design, small footprint;

Multiple module choices, easy replacement of magnetic adsorption, suitable for a wide range of test tubes, and support for continuous operation;

It takes only about 10 minutes to reduce the temperature from room temperature to 4℃;

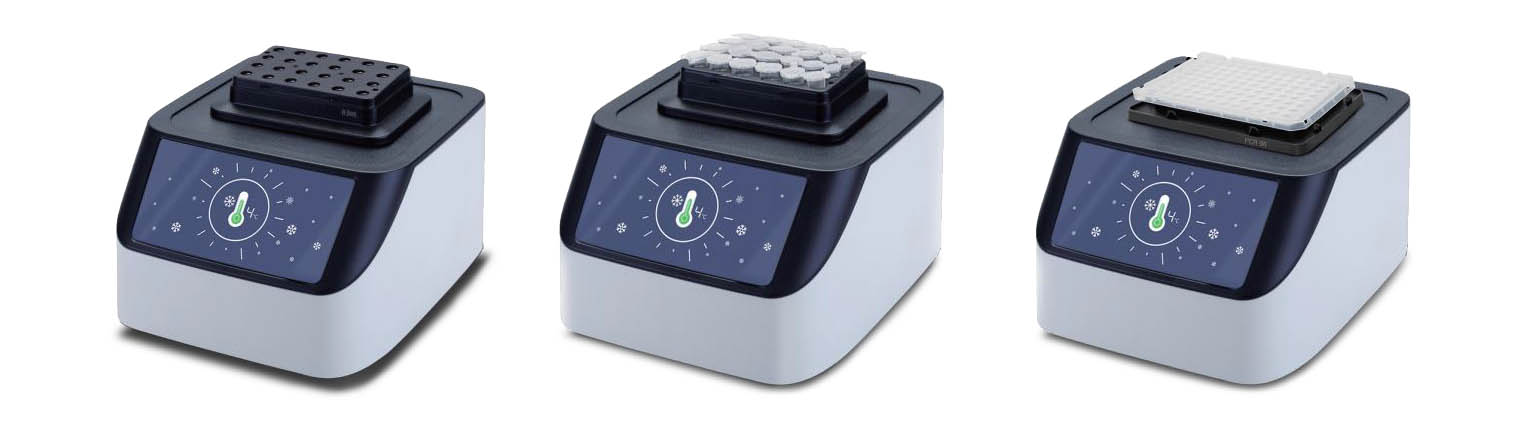

 CT4-Pro with different blocks

Applications

4℃ Thermostatic Ice Box is a microcomputer-controlled thermostat with high temperature control accuracy and good homogeneity, widely used for sample preservation, pre-denaturation of DNA amplification products and electrophoresis, serum coagulation, etc. The industry covers pharmaceutical, chemical, food safety and environmental testing.


Specification

Model

CT4-Pro

Functions

Cooling

Temperature Control Setting

4℃

Temperature Control Accuracy

±0.5℃

Temperature Uniformity

±0.5℃

Status Indicator

LED Dual Colour (Red&Green)

Cooling Speed

≤10min (depending on the module)

Running State

Continuous

Noise Level

≤55dB

Protection Class

IP20

Voltage

110V/220V

Frequency

50/60HZ

Power

80W

Dimensions [L×W×H]

240×195×135

Weight

3.3kg

Permissible Ambient Temperature and Humidity

5-40℃,80%RH


A

Cat.No

Magnetic

18900401

18900402

18900403

18900404

18900405

Mechanical fixation

18900344

18900343

18900345

18900637

18900638

Capacity

0.5mL×24

1.5mL×24

2mL×24

5mL×8 round bottom

5mL×8 cone bottom

Speed

1500rpm

1500rpm

1500rpm

1500rpm

1400rpm

Diameter×depth

8.1×26mm

10.9×30.8mm

10.9×30.8mm

13.6×42mm

17×51.5mm

BLOCK 1

Cat.No

Magnetic

18900874

18900406

18900407

18900420

18900423

18900746

Mechanical fixation

-

18900241

18900242

18900349

18900350

-

Capacity

1.5mL×24
Chromatography Vial

15mL×8

50mL×4

0.2mL×8 PCR strips or
0.2mL×96 PCR microplate

ELISA
microplate

Deep well Plate

Speed

1500rpm

800rpm

600rpm

1500rpm

1500rpm

-

Diameter×depth

12×20.5mm

16.9×80mm

29.6×80mm

5.7×13.2mm

127×85mm

127×85×42mm

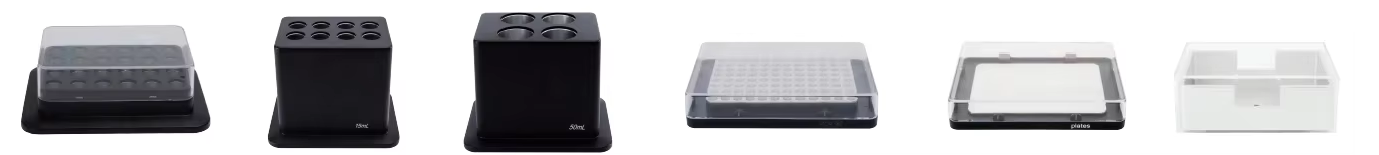

BLOCK 2
