98-II-C
NADE
100～120V or 200～240V
1
1 year
China
Product Description

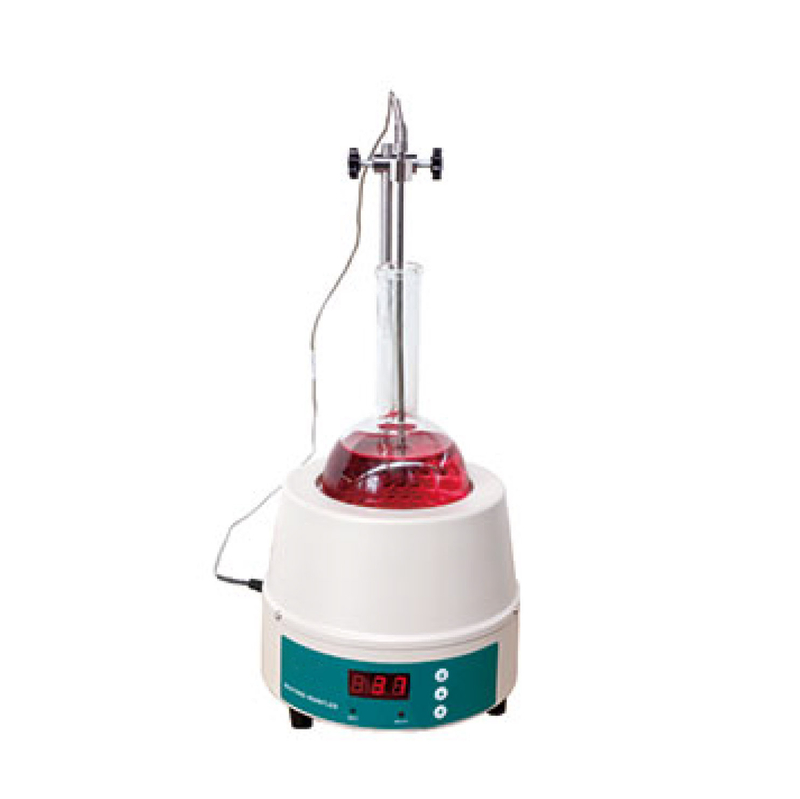

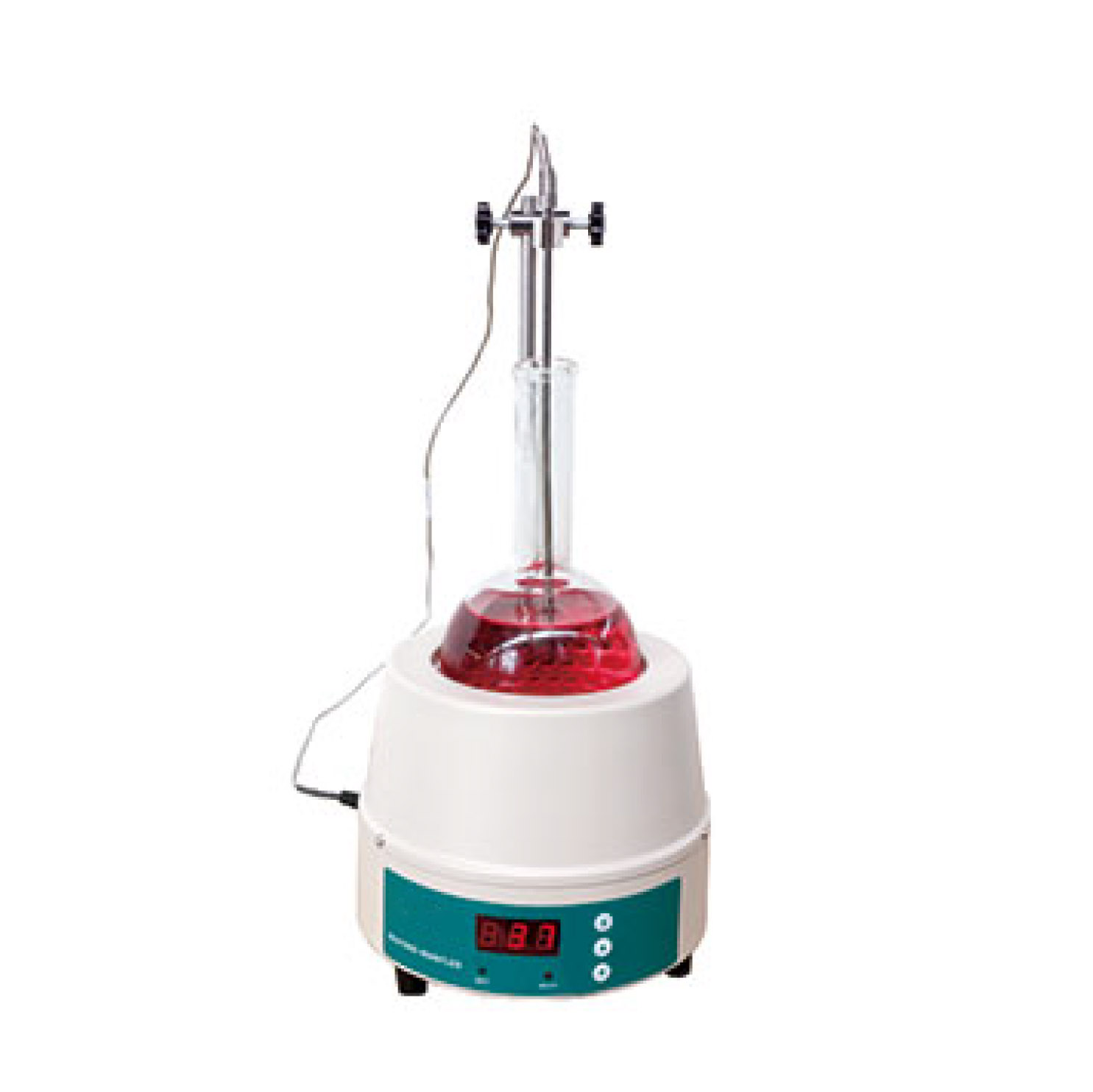

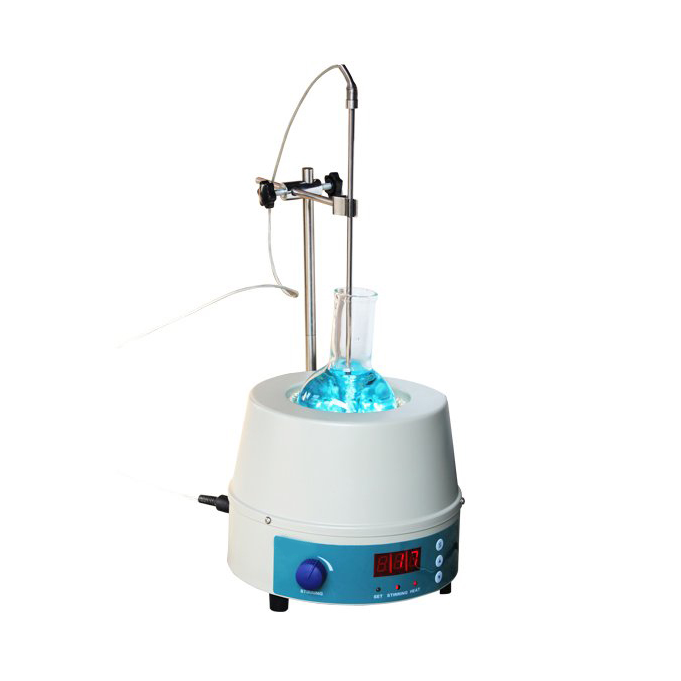

NADE 98-II-C Digital Display Heating Mantles
Up to 450 ℃ general heating equipment
Features:
1. PID Single Screen Temperature controller. Fast heating, temperature uniformity and high precise temperature control.
2. Several Rows type, produce as Customer inquiry, beautiful shape, easy to operate and effective.
3. PT100 Temperature sensor, with Adjustable Sensor Rack and Stainless Rods.
Specification
Model | 98-II-C | ||||||||||
Function | Capacity | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
Heating | Surface heat-conduction | ||||||||||
Surface | 450℃ | ||||||||||
Temperature | RT+20～250℃ | ||||||||||
Structure | Heating | Nichrome wire | |||||||||
Thermal insulation cotton | High quality aluminum silicate cotton | ||||||||||
Motor power | 0.01kW | ||||||||||
Shell | Cold rolled steel plate, surface spray coating | ||||||||||
Heating power | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | |
Controller | Working Mode | Continuous | |||||||||
Specification | Exterior Size | ￠220×165 | ￠280×220 | ￠330×230 | ￠340×245 | ￠350×250 | ￠425×320 | ￠470×340 | |||
Packing Size | 230×230×195 | 290×290×300 | 340×340×350 | 360×360×300 | 390×390×310 | 380×380×330 | 510×510×380 | ||||
Voltage(V) | 100～120V or 200～240V | 200～240V | |||||||||
N.W.(Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | ||||
G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 | ||||
